Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: LNK-IMC205GPD-SFP
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: PoE Switch Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000 pcs/month
Keywords: |
Din Rail PoE Powered Switch |
PoE Budget: |
Up To 71-watt PoE Budget |
Power Pin Assignment: |
4/5(+), 7/8(-) |
Connector: |
1-Port PoE In, 4-Port PoE Out |
Optical Port: |
2-Port SFP 1000Base-X Or 100Base-FX |
Dimensions (LxWxH: |
95 X 88 X 46mm |
Keywords: |
Din Rail PoE Powered Switch |
PoE Budget: |
Up To 71-watt PoE Budget |
Power Pin Assignment: |
4/5(+), 7/8(-) |
Connector: |
1-Port PoE In, 4-Port PoE Out |
Optical Port: |
2-Port SFP 1000Base-X Or 100Base-FX |
Dimensions (LxWxH: |
95 X 88 X 46mm |

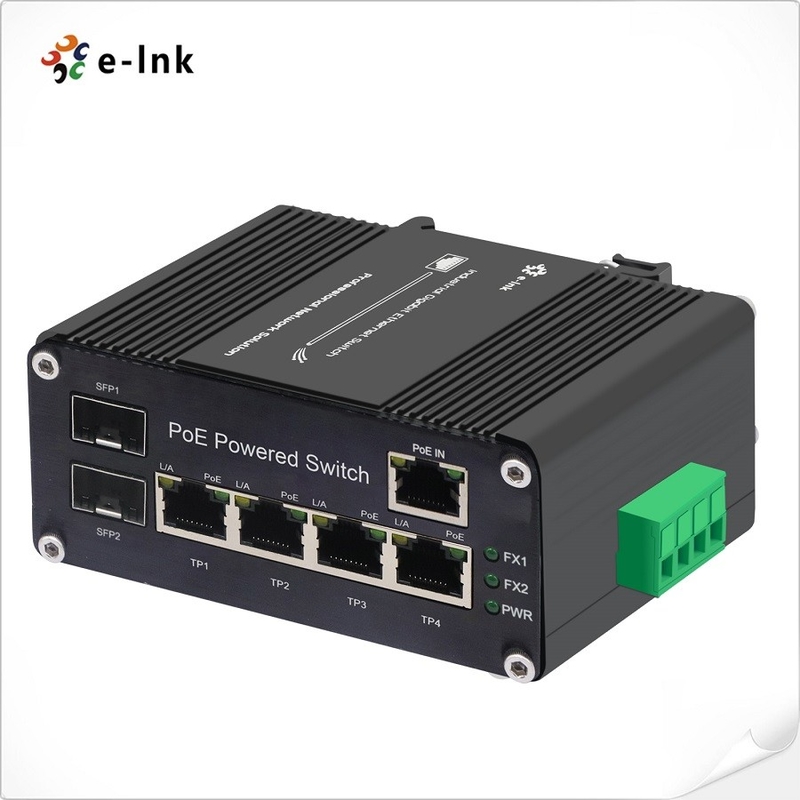

Din Rail 5 Port Industrial PoE Switch SFP Gigabit Ethernet Switch
Industrial Din Rail PoE Powered Switch
5 Port 10/100/1000T + 2 Port 100/1000X SFP Gigabit
PoE Powered Switch 5 Port Gigabit Advantages
► One IEEE 802.3bt (PoE++ / 4PPoE) PD PoE Port with 95 W Power Input
► Four PSE PoE ports, PoE Power Budget up to 71 Watt
► POE extender: No AC adapter is required, powered by PoE switch or PoE injector
► Expand and repeat your PoE network for up to 4 IP devices
► IP40 rugged high-strength metal case
PoE Powered Switch 802.3bt Overview
E-link LNK-IMC205GPD-SFP Series is a Mini Industrial PoE Powered 5-Port 10/100/1000T + 2-Port 100/1000X SFP Ethernet Switch with PoE Passthrough. It’s with one IEEE 802.3bt (PoE++ / 4PPoE) PD PoE Port with 95 W Power Input, four PSE PoE ports, PoE Power Budget up to 71 W, IEEE 802.3af/at/bt Compliant Output. LNK-IMC205GPD-SFP PoE Pass-through switch is integrated with both Powered Device (PD) and Power Source Equipment (PSE) in one which can receive power and data from another PoE device and pass through. This switch is designed to supply the PoE to IP devices deployed in the field where the power source is difficult to acquire. Single Ethernet cable is capable of providing 71-Watt total power budget and the pass through switch expand up to 4 network ports with PoE.
Ethernet Switch with PoE Passthrough Technical Indexes
| Standards: | IEEE 802.3 Ethernet |
| IEEE 802.3u Fast Ethernet | |
| IEEE 802.3ab Gigabit Ethernet | |
| IEEE 802.3x Full-Duplex Flow Control | |
| IEEE 802.3az Energy Efficient Ethernet (EEE) | |
| IEEE 802.3bt 4-pair Power over Ethernet | |
| IEEE 802.3at Power over Ethernet Plus PSE | |
| IEEE 802.3af Power over Ethernet Plus | |
| Connector: | 5 x RJ45 (1-Port PoE In, 4-Port PoE Out) |
| Optical Port: | 2 x SFP 1000Base-X or 100Base-FX (auto detection) |
| PoE Budget: | Up to 71-watt PoE budget |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| MTBF | > 200,000 hrs |
| Input Power: |
Pass through PoE: |
| 48~57VDC (Terminal Block) | |
| Power Consumption: | <5W (Non-PoE) |
| Dimensions (LxWxH): | 95 x 88 x 46mm |
| Weight: | 300g |
Din Rail Industrial PoE Powered Switch 5 Port Ordering Information
|
Model |
Description |
|
LNK-IMC205GPD-SFP |
Industrial PoE Powered 5-Port 10/100/1000T + 2-Port 100/1000X SFP Ethernet Switch with PoE Passthrough |
|
SFP Options |
► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
|
► SFP module is to be purchased separately. |
|
|
Mounting Options |
► Default DIN-Rail Bracket installed; |
|
Power Options |
► PoE Pass Through |
|
► Power Supply is to be purchased separately |
