Product Details
Place of Origin: China
Brand Name: E-link
Certification: RoHS,CE,FCC
Model Number: LNK-IMC-A1400G-SFP
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: To be negotiated
Packaging Details: Industrial Ethernet Switch Standard Export Package
Delivery Time: 5-15working days
Payment Terms: L/C, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 500PCS/Month
Keyword: |
Industrial Ethernet Switch |
Connector: |
4x RJ45 10/100/1000Base-T |
Optical Port: |
1 X SFP 1000Base-X Or 100Base-FX (DIP Switch) |
Input Power: |
110~230VAC, 6-pin Terminal Block |
Dimensions (WxDxH): |
95 X 95 X 30 Mm |
Weight: |
0.26Kg |
Casing: |
Aluminum Case |
Operating Temperature: |
-40°C To 75°C (-40°F To 167°F) |
Keyword: |
Industrial Ethernet Switch |
Connector: |
4x RJ45 10/100/1000Base-T |
Optical Port: |
1 X SFP 1000Base-X Or 100Base-FX (DIP Switch) |
Input Power: |
110~230VAC, 6-pin Terminal Block |
Dimensions (WxDxH): |
95 X 95 X 30 Mm |
Weight: |
0.26Kg |
Casing: |
Aluminum Case |
Operating Temperature: |
-40°C To 75°C (-40°F To 167°F) |

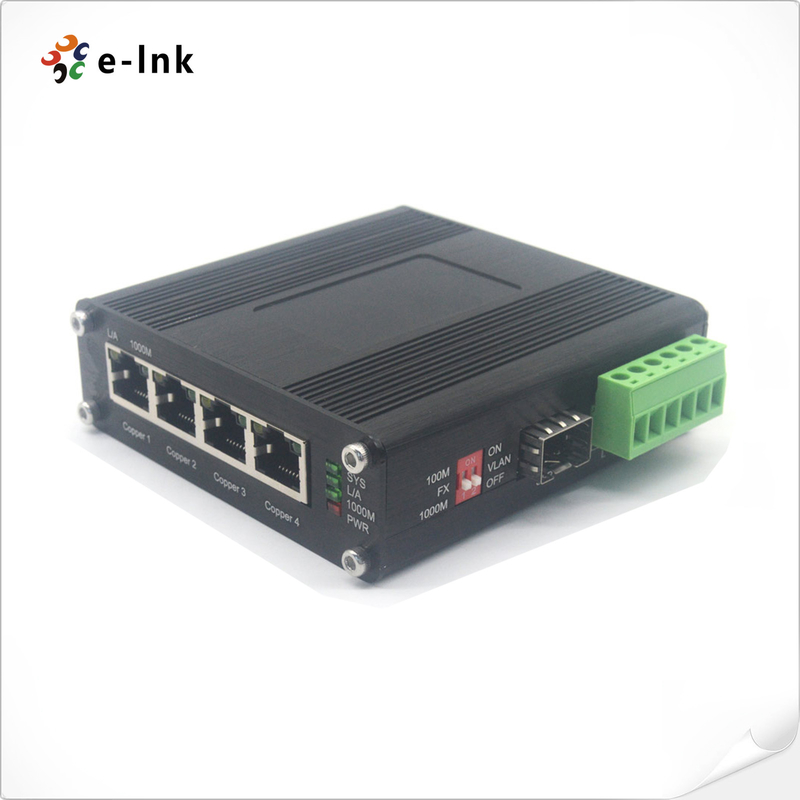

Industrial Ethernet Switch 110~230VAC Input 5 Port Din-Rail Ethernet Switch
Industrial Ethernet Switch Advantages
► 4-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function
► 1 SFP Port, 100Base-FX or 1000Base-X dual mode (DIP switch)
► Supports flow control and broadcast storm protection.
► Supports VLAN and QoS.
► Supports max 10K bytes frame.
► 110~230VAC Terminal Block Power Input
► Supports DIN-Rail & Wall-mount installation
Technical Indexes
| Interface | |
| Connector: | 4x RJ45 10/100/1000Base-T |
| Optical Port: | 1 x SFP 1000Base-X or 100Base-FX (DIP Switch) |
| Electrical and Mechanical | |
| Input Power: | 110~230VAC, 6-pin terminal block |
| Power Consumption: | 5W Max. |
| Dimensions (WxDxH): | 95 x 95 x 30 mm |
| Weight: | 0.26Kg |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |
| Environmental | |
| Operating Temperature: | -40°C to 75°C (-40°F to 167°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Regulatory Approvals | |
| ISO9001, CE, FCC, RoHS | |
Overview
LNK-IMC-A1400G-SFP Series is a DIN rail type Ethernet Switch that supports external SFP Modules and meets EN55022 standard. It is a hardened grade product whose operating temperature range is -40°C to +75°C. LNK- A1400G-SFP supports 10/100/1000Base-T and 100/1000Base-X SFP Port. The Ethernet port supports both half-duplex and full-duplex mode. Users can use different type of SFP modules (single-mode/multi-mode fiber, 1/2 core) as needed.
The LNK-A1400G-SFP Gigabit Ethernet Switch with four 10/100/1000M UTP ports and one 100/1000M SFP sockets, which converting the 4 independent 1000Base-TX twisted pair electrical signal with 1000Base-FX optical signal. It extends the network transmission range from 100m over copper wires to 120Km (single-mode full-duplex mode). The product is possessed of stable performance, excellent quality and reasonable price because of adopting latest IC and high quality of transceivers. It is applicable to use in small patterns of Optical Fiber Ethernet. Special AC power input design, support 110V~230VAC.
Ordering Information
| Model | Description |
| LNK-IMC-A1400G-SFP | Hardened 4-Port 10/1001000BASE-TX to 100/1000BASE-X SFP Ethernet Switch |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
| ► SFP module is to be purchased separately. | |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► 110~230VAC Power Supply. Open Wire for Terminal Block |
