Product Details
Place of Origin: China
Brand Name: E-link
Certification: RoHS,CE,FCC
Model Number: LNK-IMC202G-SFP
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: To be negotiated
Packaging Details: Industrial Ethernet Switch Standard Export Package
Delivery Time: 5-15working days
Payment Terms: L/C, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 2000PCS/Month
Keyword: |
Industrial Ethernet Switch |
Connector: |
2 X RJ45 |
Input Power: |
12~48VDC, 2-pin Terminal Block |
Dimensions: |
95 X 70 X 30 Mm |
Weight: |
0.25Kg |
Operating Temperature: |
-40°C To 75°C (-40°F To 167°F) |
Keyword: |
Industrial Ethernet Switch |
Connector: |
2 X RJ45 |
Input Power: |
12~48VDC, 2-pin Terminal Block |
Dimensions: |
95 X 70 X 30 Mm |
Weight: |
0.25Kg |
Operating Temperature: |
-40°C To 75°C (-40°F To 167°F) |

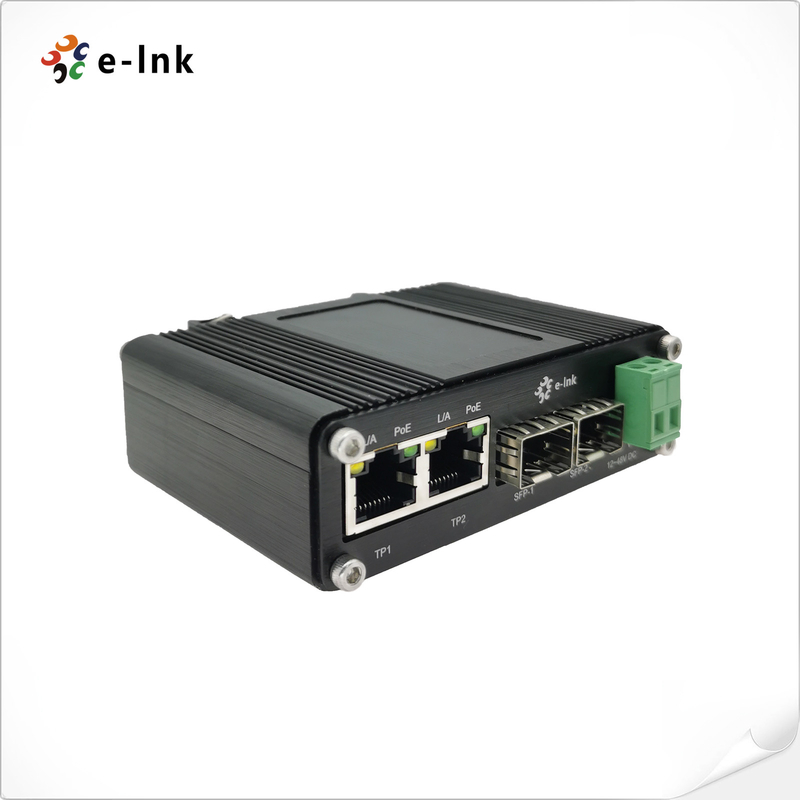

Industrial Ethernet Switch Unmanaged 2 Rj45 Port + 2 SFP Port Ethernet Switch
Industrial Ethernet Switch Advantages
► 2-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function
► 2 SFP Port, 100Base-FX or 1000Base-X dual mode (auto detection)
► Supports Link Fault Pass Through
► Supports Full/Half-duplex, Auto-negotiation
► 9K Bytes Jumbo Frame
► 12~48VDC Terminal Block Power Input
► Supports DIN-Rail & Wall-mount installation
Technical Indexes
| Processing Type: | Store-and-Forward |
| Forward Filter Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) | |
| 1,488,000pps (1000Mbps) | |
| Packet Buffer Memory: | 1 Mbit |
| Max Packet Length: | 9K Bytes |
| Address Table Size | 2K MAC Addresses |
| Interface | |
| Connector: | 2 x RJ45 |
| Optical Port: | 2 x SFP 1000Base-X or 100Base-FX (auto detection) |
| Electrical and Mechanical | |
| Input Power: | 12~48VDC, 2-pin terminal block |
| Power Consumption: | 5W Max. |
| LED Indicators: | |
| PWR: | Power Status |
| RJ45: | LINK/Activity |
| SFP: | LINK |
| Dimensions (WxDxH): | 95 x 70 x 30 mm |
| Weight: | 0.25Kg |
| Casing: | Alunminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |
| Environmental | |
| Operating Temperature: | -40°C to 75°C (-40°F to 167°F) |
| MTBF | > 200,000 hrs |
| Regulatory Approvals | |
| ISO9001, CE, FCC, RoHS | |
Overview
LNK-IMC202G-SFP Series is a DIN rail type Ethernet Switch that supports external SFP Modules and meets EN55022 standard. It is a hardened grade product whose operating temperature range is -40°C to +75°C. LNK-IMC202G-SFP supports 10/100/1000Base-T and 100/1000Base-X SFP Port. The Ethernet port supports both half-duplex and full-duplex mode. Users can use different type of SFP modules (single-mode/multi-mode fiber, 1/2 core) as needed.
Ordering Information
| Model | Description |
| LNK-IMC202G-SFP | Hardened 2-Port 10/1001000BASE-TX to 2x100/1000BASE-X SFP Ethernet Switch |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
| ► SFP module is to be purchased separately. | |
| Mounting Options | ► Default DIN-Rail Bracket installed, Wall Mount Bracket is included. |
| Power Options | ► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block |
| ► Power Supply is to be purchased separately. |
