Product Details
Place of Origin: China
Brand Name: E-link
Certification: RoHS,CE,FCC
Model Number: LNK-IMC108G
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: To be negotiated
Packaging Details: Industrial Ethernet Switch Standard Export Package
Delivery Time: 5-15working days
Payment Terms: L/C, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 2000PCS/Month
Keyword: |
Industrial Ethernet Switch |
Connector: |
8 X RJ45 |
Optical Port: |
1 X 1000Base-X (SFP, SC, FC, ST Optional) |
Input Power: |
12~58VDC , Redundant Power (6-pin Terminal Block) |
Power Consumption: |
5W Max. |
Dimensions (WxDxH: |
150 X 110 X 50 Mm |
Weight: |
0.6Kg |
Casing: |
Aluminum Case |
Keyword: |
Industrial Ethernet Switch |
Connector: |
8 X RJ45 |
Optical Port: |
1 X 1000Base-X (SFP, SC, FC, ST Optional) |
Input Power: |
12~58VDC , Redundant Power (6-pin Terminal Block) |
Power Consumption: |
5W Max. |
Dimensions (WxDxH: |
150 X 110 X 50 Mm |
Weight: |
0.6Kg |
Casing: |
Aluminum Case |

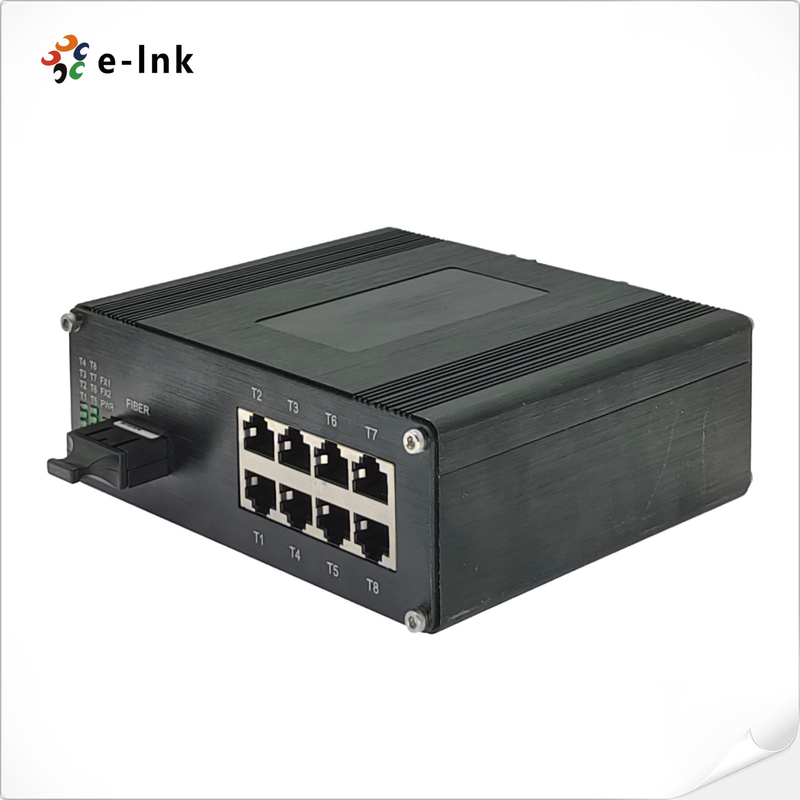

Industrial Ethernet Switch 8 Port Gigabit Ethernet Switch Unmanaged Switch
Industrial Ethernet Switch Advantages
► 8 10/100/1000Base-TX + 1 1000Base-X
► 10/100/1000Mbps RJ45 Port Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► SFP, SC, FC, ST Optional
► Supports 802.3x Flow Control
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► Redundant Power Inputs
► Supports Wall-mount and DIN-Rail installation
Technial Indexes
| Interface | |
| Connector: | 8 x RJ45 |
| Optical Port: | 1 x 1000Base-X (SFP, SC, FC, ST Optional) |
| Environmental | |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Electrical and Mechanical | |
| Input Power: | 12~58VDC, Redundant Power (6-pin Terminal Block) |
| Power Consumption: | 5W Max. |
| Protection: | |
| Power Input Overload: | Automatic Resettable |
| Reverse Polarity: | Present |
| LED Indicators: | |
| Power: | Power1, Power2 Status |
| Ethernet (Per Port): | Link/Activity |
| Fiber: | FX1 |
| Dimensions (WxDxH): | 150 x 110 x 50 mm |
| Weight: | 0.6Kg |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |
| Regulatory Approvals | |
| ISO9001 | |
| EN55022:2010+AC: 2011, Class A | |
Overview
LNK-IMC108G is an 8 ports 10/100/1000Base-T + 1 port 1000Base-X Industrial Ethernet switch. The Switch has 8 TP ports and 1 fiber port. TP (RJ45) support 10/100/1000Base-T, Full/Half duplex mode, and auto MDI/MDI-X connection; 100Base-FX supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.
Ordering Information
| Model | Description |
| LNK-IMC108G | Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX + 1-Port 1000Base-X Fiber, Multimode, Dual Fiber, SC, 2KM |
| LNK-IMC108G-20 | Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX + 1-Port 1000Base-X Fiber, Single Mode, Dual Fiber, SC, 20KM |
| LNK-IMC108GS-20 | Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX + 1-Port 1000Base-X Fiber, Single Mode, Single Fiber, SC, 20KM |
| LNK-IMC108GF-20 | Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX + 1-Port 1000Base-X Fiber, Single Mode, Single Fiber, FC, 20KM |
| LNK-IMC108G-SFP | Industrial 8-port 10/100/1000BASE-T + 1-port 1000BASE SFP Ethernet Switch |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page |
| ► SFP module is to be purchased separately. | |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ►24W/1A 24VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
