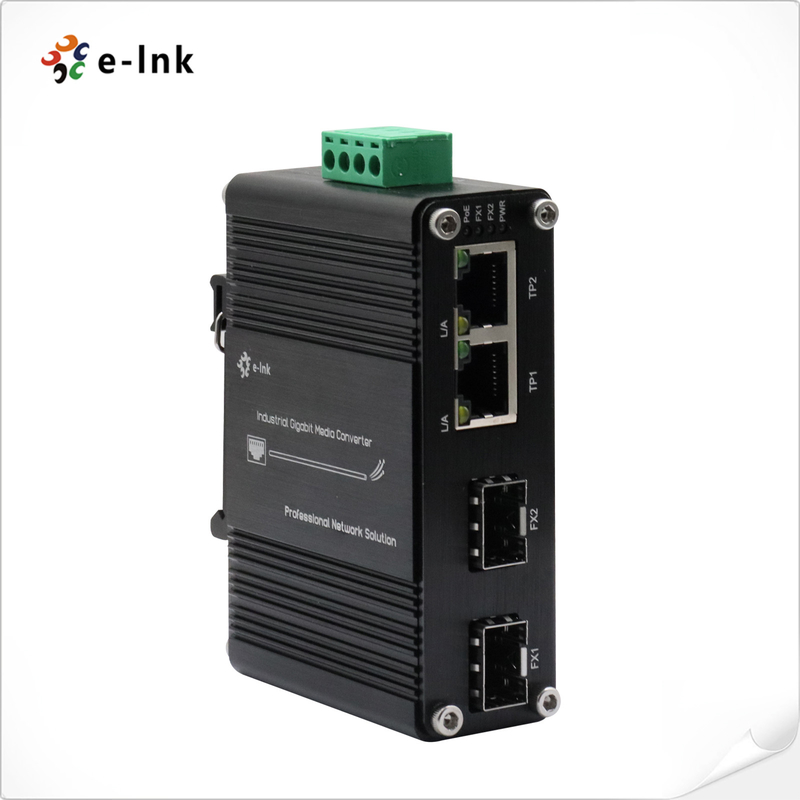

Gigabit RJ45 Mini Ethernet Industrial Gigabit Switch 2 Port 10/100M SFP

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ISO9001

Model Number: LNK-IMC202G-SFP

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: US$85-100/pc

Packaging Details: Fiber Media Converter Standard Package

Delivery Time: 5-10 working days

Payment Terms: T/T, Western Union, MoneyGram,PayPal

Supply Ability: 10000pcs/Month

Get Best Price
Contact Now
Specifications
Highlight:

Ethernet Industrial Gigabit Switch

,

Mini Industrial Gigabit Switch

,

Gigabit rj45 ethernet switch

Processing Type:
Store-and-Forward
Forward Filter Rate:
1,488,000pps (1000Mbps)
Connector:
2 X RJ45 + 2 X SFP
Input Power:
12~48VDC, 2-pin Terminal Block
Power Consumption:
5W Max.
Size:
95 X 70 X 30 Mm
Processing Type:
Store-and-Forward
Forward Filter Rate:
1,488,000pps (1000Mbps)
Connector:
2 X RJ45 + 2 X SFP
Input Power:
12~48VDC, 2-pin Terminal Block
Power Consumption:
5W Max.
Size:
95 X 70 X 30 Mm
Description
Gigabit RJ45 Mini Ethernet Industrial Gigabit Switch 2 Port 10/100M SFP

Mini Industrial Gigabit Ethernet Switch 2x 10/100M SFP + 2x Gigabit RJ45 Ports

Industrial Ethernet Switch Advantages

► 2-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function

► 2 SFP Port, 100Base-FX or 1000Base-X dual mode (auto detection)

► 12~48VDC Terminal Block Power Input

Specifications

Interface

Connector:

2 x RJ45

Optical Port:

2 x SFP 1000Base-X or 100Base-FX (auto detection)

Electrical and Mechanical

Input Power:

12~48VDC, 2-pin terminal block

Power Consumption:

5W Max.

Dimensions (WxDxH):

95 x 70 x 30 mm

Weight:

0.25Kg

Casing:

Aluminum Case

Mounting Options:

DIN-Rail / Wall-mount

Overview

LNK-IMC202G-SFP supports 10/100/1000Base-T and 100/1000Base-X SFP Port. The Ethernet port supports both half-duplex and full-duplex mode. Users can use different type of SFP modules (single-mode/multi-mode fiber, 1/2 core) as needed.

Gigabit RJ45 Mini Ethernet Industrial Gigabit Switch 2 Port 10/100M SFP 0

Order Information

Model Description
LNK-IMC202G-SFP Hardened 2-Port 10/1001000BASE-TX to 2x100/1000BASE-X SFP Ethernet Switch
SFP Options ► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).
► SFP module is to be purchased separately.
Mounting Options ► Default DIN-Rail Bracket installed, Wall Mount Bracket is included.
Power Options ► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block
► Power Supply is to be purchased separately.
