Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE
Model Number: LNK-LC100-SC
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: USD35/PCS
Packaging Details: Accessories Standard Carton Packaging
Delivery Time: 7-10 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, PayPal
Supply Ability: 1000000PCS/Month
Port Numbers: |
SC Connector*1（ Duplex Fiber / Single Fiber Optional） |
Media: |
Single Mode Fiber, Multi Mode Fiber |
Transmitting Distance: |
20/40/60/km |
Data Speed: |
100Mbits/s (Half Duplex), 200Mbits/s (Full Duplex) |
Host Interface: |
PCI 2.2 Specifications |
Consumption: |
Max. 2W, +5VDC@0.4A |
Port Numbers: |
SC Connector*1（ Duplex Fiber / Single Fiber Optional） |
Media: |
Single Mode Fiber, Multi Mode Fiber |
Transmitting Distance: |
20/40/60/km |
Data Speed: |
100Mbits/s (Half Duplex), 200Mbits/s (Full Duplex) |
Host Interface: |
PCI 2.2 Specifications |
Consumption: |
Max. 2W, +5VDC@0.4A |

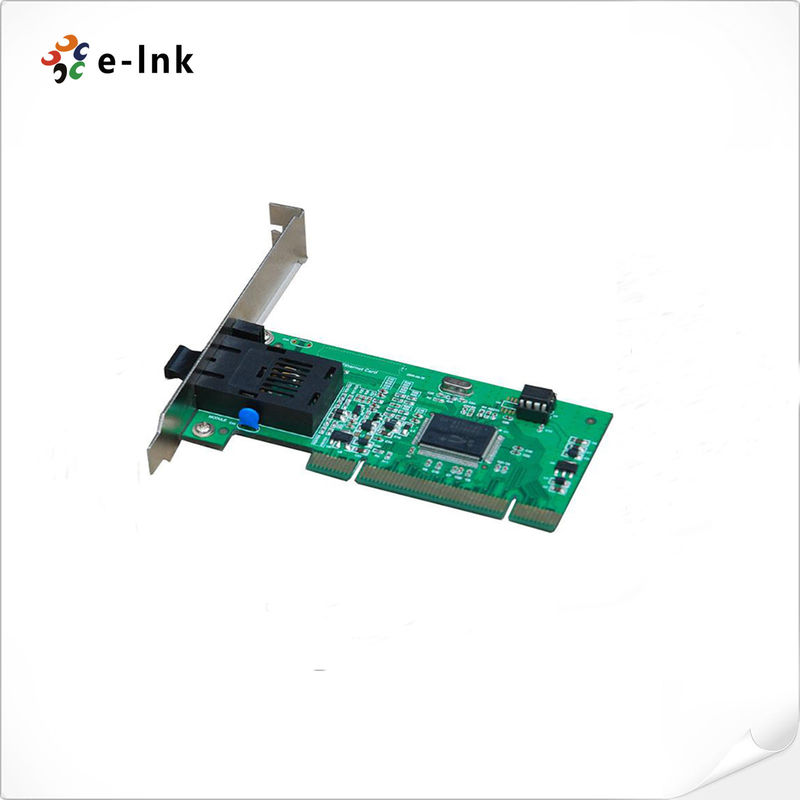

Accessories 100M Fiber Optic PCI-E LAN Card, 1310nm, Duplex Fiber
Accessories Advantages:
Eliminate server bottlenecks and migrate existing Category-5 networks to 100M Ethernet easily and cost-effectively
with the LNK-LC100 Series NIC (Network Interface Card). Featuring flexible, auto-negotiating performance, the LNK-LC100 NIC
(Network Interface Card) is designed to automatically scale with growing networks. The LNK-LC100 NIC(Network Interface Card)
comes with drivers for the most popular operating systems and can be integrated into a larger network. However, this Guide is
designed to help you network two computers running Windows 7/8, XP, 2000, 2003 and Windows Server 2008 in a peer-to-peer
configuration. The standards-based management features and wide network operating system support
help to ensure extensive compatibility with the latest server and networking environments.
Technical Indexes
| Product Model | LNK-LC100 Series: Single Port Fiber 100M PCI-E NIC |
| Standards | IEEE802.3, IEEE 802.3ab, IEEE 802.3x, IEEE802.1q, IEEE802.1p, IEEE802.1z |
| TX/RX data buffer | Large 2Kb Tx, 2Kb Rx FIFO buffers |
| Port Numbers | LNK-LC100-SC Series: SC Connector*1( Duplex Fiber / Single Fiber Optional) |
| Media | Single Mode Fiber, Multi Mode Fiber |
| Transmitting Distance | Single Fiber SMF, 1310nm/1550nm(1490nm),20/40/60km |
| Duplex Fiber SMF, 1310nm or 1550nm(1490nm), 20/40/60/km | |
| Duplex Fiber MMF, 850nm, 2Km | |
| Data Speed | 100Mbits/s (Half duplex), 200Mbits/s (Full duplex) |
| Host Interface | PCI 2.2 Specifications |
| Consumption | Max. 2W, +5VDC@0.4A |
| Ambient Temperature | Storage Temperature:-20℃～65℃； Storage humidity:5％～90％ RH Non-condensing |
| Operation temperature:0℃～50℃；Operation humidity:10％～90％ RH Non-condensing |
Overview
E-link LNK-LC100 Series Single Port Fiber 100M PCI-E NIC (Network Interface Card) is with 1x9 Module with SC Connector.
It is a Fiber 100M Ethernet to PCI-E bus adapter that fully complies with all IEEE 802.3u 100Base-FX standards. LNK-LC100-SC
Series Single Port Fiber 100M PCI-E NIC support one SC Fiber port (Duplex Fiber/ Single Fiber Optional), It can offer 100Mbps
Internet access, It provides up to 200Mbps full-duplex bandwidth capacity to support high-end servers. In addition, with advanced
functions like VLAN filtering packet processing, the adapter provides added performance, flexible configuration
and secure networking for users in a standard-based environment.
Ordering Information
| Model | Description |
| LNK-LC100-SC | 100M Fiber Optic LAN Card, 1310nm, Duplex Fiber, MMF, SC Connector, Transmitting Distance: 2Km |
| LNK-LC100-SC-20 | 100M Fiber Optic LAN Card, 1310nm, Duplex Fiber, SMF, SC Connector, Transmitting Distance: 20Km |
| LNK-LCS100-SC-20 | 100M Fiber Optic LAN Card, 1310nm TX/1550nm RX, Single Fiber, SMF, SC Connector, Transmitting Distance: 20Km |
