Product Details
Place of Origin: China
Brand Name: E-link
Certification: RoHS,CE,FCC
Model Number: LNK-IMC008
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: To be negotiated
Packaging Details: Industrial Ethernet Switch Standard Export Package
Delivery Time: 5-15working days
Payment Terms: L/C, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 500PCS/Month
Keyword: |
Industrial Ethernet Switch |
Connector: |
8 X RJ45 |
Power Input Overload: |
Power Input Overload |
Dimensions: |
150 X 110 X 50 Mm |
Weight: |
0.6Kg |
Casing: |
Aluminum Case |
Keyword: |
Industrial Ethernet Switch |
Connector: |
8 X RJ45 |
Power Input Overload: |
Power Input Overload |
Dimensions: |
150 X 110 X 50 Mm |
Weight: |
0.6Kg |
Casing: |
Aluminum Case |

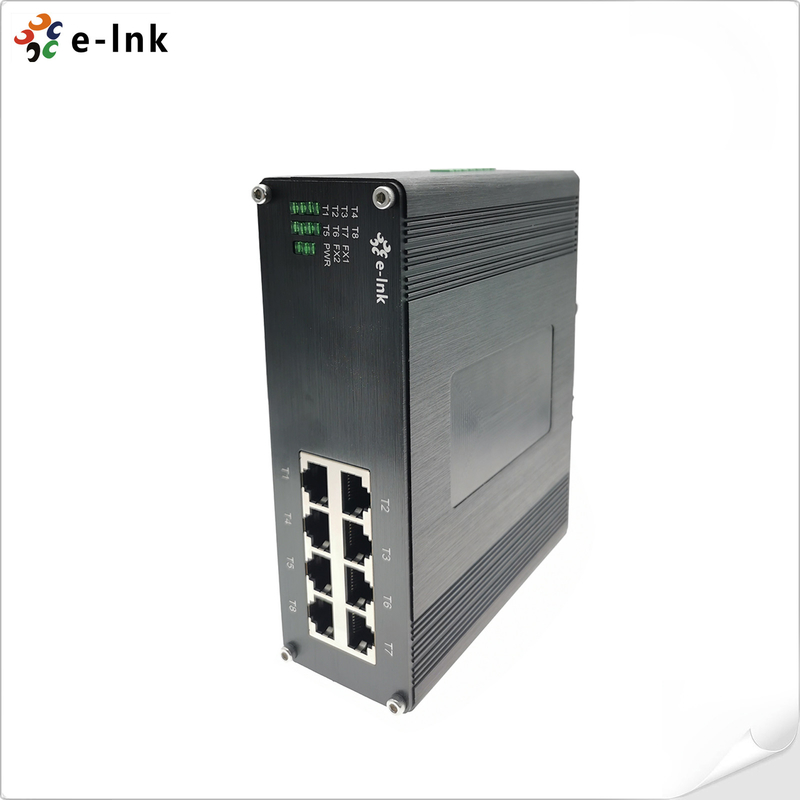

Industrial Ethernet Switch Unmanaged 8-port 10 / 100BASE-T Ethernet Switch
Industrial Ethernet Switch Advantages
► 8 10/100Base-TX ports
► RJ45 Port Supports 10/100Mbps-Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► Supports 802.3x Flow control
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► Supports DIN-Rail and Wall-mount installation
► Redundant 12～58VDC Power Inputs
► -40°C to 80°C (-40°F to 176°F) operating temperature
Technical Indexes
| Standards: | IEEE802.3 10BASE-T |
| IEEE802.3u 100BASE-TX | |
| IEEE 802.3az Energy Efficient Ethernet (EEE) | |
| IEEE802.3x Flow Control | |
| Forward & Filtering Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) | |
| Cabling | 10Base-T: Cat5 or above |
| 100Base-TX: Cat5 or above | |
| Maximum Distance | Cat5 UTP up to 100m |
| Interface | |
| Connector: | 8 x RJ45 |
| Environmental | |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| MTBF | > 200,000 hrs |
| Electrical and Mechanical | |
| Input Power: | 12~58VDC, Redundant Power (6-pin Terminal Block) |
| Power Consumption: | 5W Max. |
| Protection: | |
| Power Input Overload: | Automatic Resettable |
| Reverse Polarity: | Present |
| LED Indicators: | |
| Power: | Power1, Power2 Status |
| Ethernet (Per Port): | Link/Activity |
| Dimensions (WxDxH): | 150 x 110 x 50 mm |
| Weight: | 0.6Kg |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |
| Regulatory Approvals | |
| ISO9001 | |
| EN55022:2010+AC: 2011, Class A | |
| EN 61000-3-2: 2006+A1: 2009+A2: 2009 | |
Overview
LNK-IMC008 is an 8 ports 10/100Base-TX Hardened Ethernet Switch. This unmanaged industrial Ethernet switch is designed to match the critical industrial standards. With reliable and simple operation against vibration and shock, and wide operation temperature range, it could match a variety of harsh environment.
The switch complies with CE and FCC standards, and passed the 100% burning test to ensure that it will fulfill the needs of industrial applications. It is a good choice for an economical solution for industrial Ethernet connections.
Ordering Information
| Model | Description |
| LNK-IMC008 | Industrial 8-port 10/100BASE-T Ethernet Switch |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ►24W/1A 24VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
