Industrial Ethernet Switch 4-Port 10 / 100 / 1000Base-T To 100 / 1000Base-X SFP

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ROHS,FCC,CE

Model Number: LNK-IMC-A1400G-SFP

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: negotiation

Packaging Details: Industrial Ethernet Switch Standard Export Package

Delivery Time: 5-12 working days

Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal

Supply Ability: 1000 pcs/month

Get Best Price
Contact Now
Specifications
Highlight:

230VAC Industrial Ethernet Switch

,

110V Industrial Ethernet Switch

,

SFP industrial 10gbe switch

Keyword:
5 Port Ethernet Switch
Connector:
4x RJ45 10/100/1000Base-T
Optical Port:
1 X SFP 1000Base-X Or 100Base-FX
Input Power:
110~230VAC
Weight:
0.26Kg
Casing:
Aluminum Case
Keyword:
5 Port Ethernet Switch
Connector:
4x RJ45 10/100/1000Base-T
Optical Port:
1 X SFP 1000Base-X Or 100Base-FX
Input Power:
110~230VAC
Weight:
0.26Kg
Casing:
Aluminum Case
Description
Industrial Ethernet Switch 4-Port 10 / 100 / 1000Base-T To 100 / 1000Base-X SFP

Industrial Ethernet Switch 4-port 10 / 100 / 1000Base-T to 100 / 1000Base-X SFP

Ethernet industrial switch Advantages

► Supports flow control and broadcast storm protection.

► Supports VLAN and QoS.

► Supports max 10K bytes frame.

110~230VAC Terminal Block Power Input

► Supports DIN-Rail & Wall-mount installation.

Technical Indexes

Forward Filter Rate:

14,880pps (10Mbps)

148,800pps (100Mbps)

1,488,000pps (1000Mbps)

Packet Buffer Memory:

1 Mbit

Max Packet Length:

9K Bytes

Address Table Size

4K MAC Addresses

Interface

Connector:

4x RJ45 10/100/1000Base-T

Optical Port:

1 x SFP 1000Base-X or 100Base-FX (DIP Switch)

Electrical and Mechanical

Input Power:

110~230VAC, 6-pin terminal block

Power Consumption:

5W Max.

1000M:

1000M Fiber Status

Dimensions (WxDxH):

95 x 95 x 30 mm

Operating Temperature:

-40°C to 75°C (-40°F to 167°F)

MTBF

> 200,000 hrs

Overview

The LNK-A1400G-SFP Gigabit Ethernet Switch with four 10/100/1000M UTP ports and one 100/1000M SFP sockets, which converting the 4 independent 1000Base-TX twisted pair electrical signal with 1000Base-FX optical signal. The product is possessed of stable performance, excellent quality and reasonable price because of adopting latest IC and high quality of transceivers. It is applicable to use in small patterns of Optical Fiber Ethernet. Special AC power input design, support 110V~230VAC.

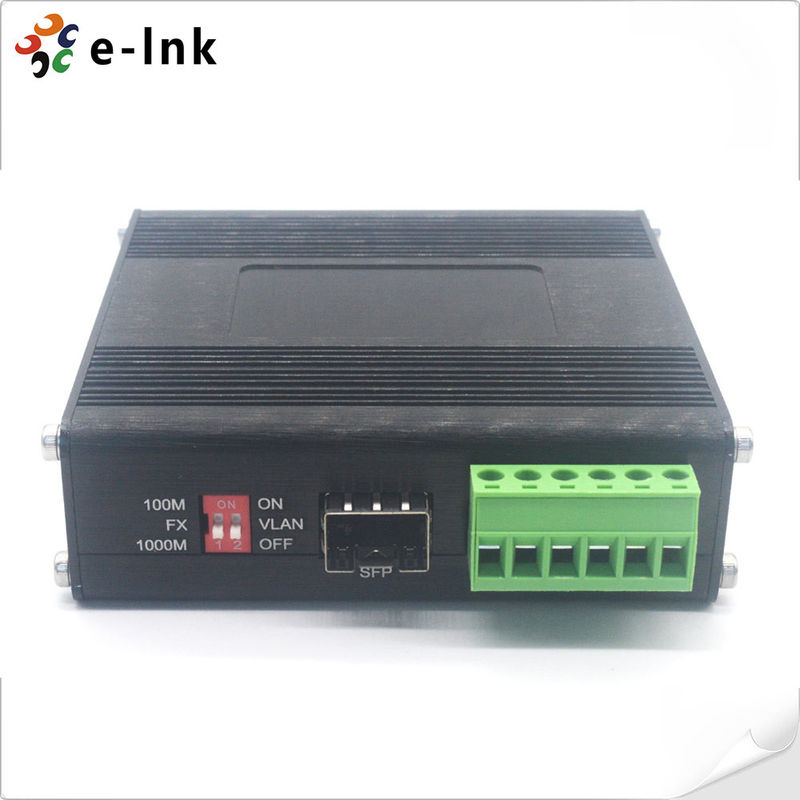

Industrial Ethernet Switch 4-Port 10 / 100 / 1000Base-T To 100 / 1000Base-X SFP 0

Industrial Ethernet Switch 4-Port 10 / 100 / 1000Base-T To 100 / 1000Base-X SFP 1

Ordering Information

Model

Description

LNK-IMC-A1400G-SFP

Hardened 4-Port 10/1001000BASE-TX to 100/1000BASE-X SFP Ethernet Switch

SFP Options

► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).

► SFP module is to be purchased separately.

Mounting Options

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.

Power Options

► 110~230VAC Power Supply. Open Wire for Terminal Block
