Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: PoE Power Splitter LNK-SP100
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: negotiation
Packaging Details: PoE Power Splitter Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000 pcs/month
Keyword: |
Passive Poe Gigabit Splitter |
Standard: |
IEE802.3af/at |
Data: |
10/100Mbps |
Color: |
Black |
Material: |
Plastic Case |
Weight: |
0.05kg |
Keyword: |
Passive Poe Gigabit Splitter |
Standard: |
IEE802.3af/at |
Data: |
10/100Mbps |
Color: |
Black |
Material: |
Plastic Case |
Weight: |
0.05kg |

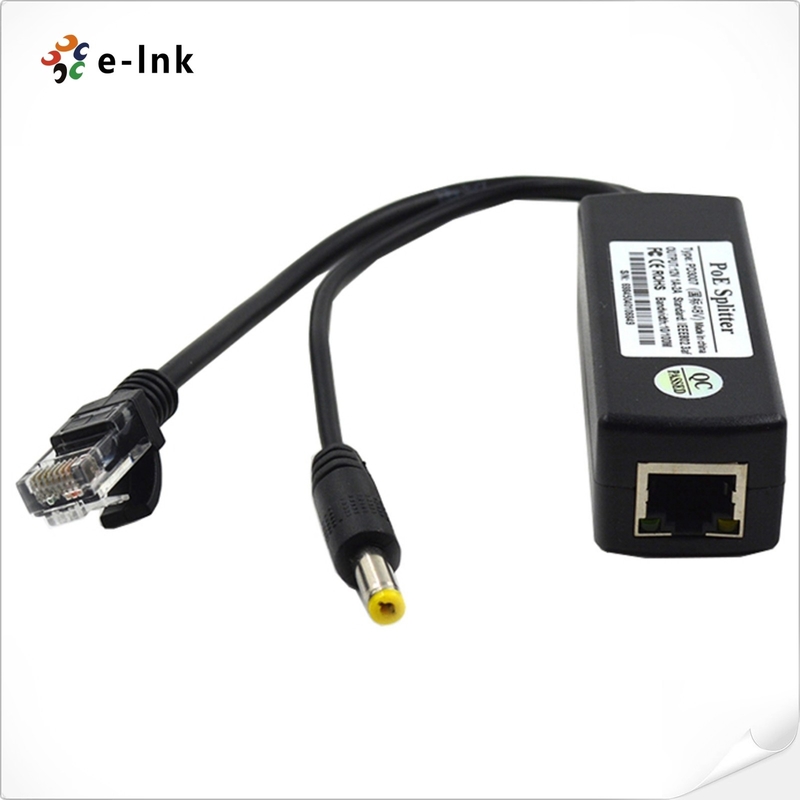

PoE Power Splitter 10/100M 30W 12V 1.25A Passive Power Over Ethernet Splitters
PoE Power Splitter Advantages
► PD support 37V-57V voltage transmission, Automatically detects power supply from PSE power supply module
► 12V power output, easy to access Poe network for non-poe terminal
► Support the isolation circuit protection, can effectively protect electrical equipment.
► Support the short circuit, over voltage protection
Technical Indexes
|
Power |
Input 48V DC /0.35A, Output 12V/1.25A |
|
Standard |
IEEE802.3 af |
|
TRNF |
1/2 + |
|
Interface Type |
1 Input RJ45 port, 1 output RJ45 port, 1 DC output |
|
Standard |
IEEE 802.3 I, IEEE 802.3 u, IEEE 802.3 x, IEEE 802.3 af |
|
LED |
Yellow PoE lamp |
|
Environment |
Work within 10%~90% Non-condensing Storage within 5%~95% Non-condensing |
|
Dimension |
93L * 34W *26H |
Overview
PoE splitter,it is an economical and practical PoE remote power equipment base on IEEE802.3af/at standard. It can separate the power and data via cable transmission.Proper matching use with poe switch or PSE injector which meet standard IEEE802.3af,Provides power and data at the same time for the terminal device does not support PoE. PoE splitter, output voltage of 12V use with the power supply equipment, It helps to expand wireless city, Security monitoring and other poe practical place, and is not restricted by layout of power line.
Ordering information
|
Model |
Description |
|
LNK-SP100 |
10/100M Input IEE802.3af/at Output DC 12V/1.25A |
