4Ch PoE Load Tester - Adjust Current Regulation, 42-57VDC Input

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ROHS,FCC,CE

Model Number: LNK-PLT004

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: 9.9USD/PCS

Packaging Details: Standard Export Package

Delivery Time: 5-12 working days

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 1000pcs/month

Get Best Price
Contact Now
Specifications
Highlight:

4Ch PoE Power Splitter

,

PoE Power Splitter

,

4Ch PoE Load Tester

Keyword:
PoE Power Splitter
Power Input:
110-220V AC
PoE Load Channels:
4Ch
Compatible Port Speed:
10/100M/1000M
Dimension:
400x185x60mm
Weight:
4.15Kg
Cable Length:
1m
Input Current:
2A
Input Power:
10W
Input Voltage:
110-220V AC
Interface Type:
RJ45
Material:
ABS
Output Current:
1A, 2A
Output Power:
10W
Output Voltage:
DC 5V, DC 12V
PoE Standard:
IEEE 802.3af/at
Product Name:
PoE Power Splitter
Protocol:
TCP/IP
Transmission Distance:
100m
Transmission Speed:
10/100/1000Mbps
Keyword:
PoE Power Splitter
Power Input:
110-220V AC
PoE Load Channels:
4Ch
Compatible Port Speed:
10/100M/1000M
Dimension:
400x185x60mm
Weight:
4.15Kg
Cable Length:
1m
Input Current:
2A
Input Power:
10W
Input Voltage:
110-220V AC
Interface Type:
RJ45
Material:
ABS
Output Current:
1A, 2A
Output Power:
10W
Output Voltage:
DC 5V, DC 12V
PoE Standard:
IEEE 802.3af/at
Product Name:
PoE Power Splitter
Protocol:
TCP/IP
Transmission Distance:
100m
Transmission Speed:
10/100/1000Mbps
Description

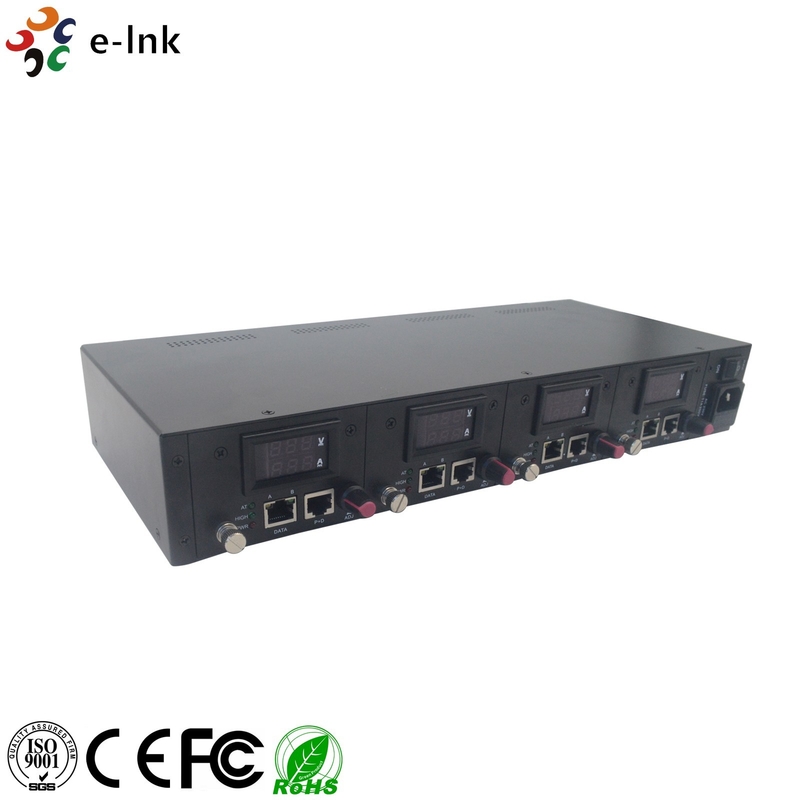

4Ch PoE Load Tester - Adjust Current Regulation, 42-57VDC Input

4Ch PoE Power Splitter Load Tester Through The ADJ Rotary Knob



4Ch PoE Load Tester



PoE Power Splitter Advantages

► PoE Detection802.3af, 802.3at

► PoE Input (RJ45)42-57VDCNote: (Does not detect 24V Passive PoE)

► Compatible Port Speed 10/100/1000M

► Adjust current regulation, Test the PoE maximum power

► 4Ch PoE Load aging test


 Technical Indexes

Parameter Description
Power Input 110-220V AC
PoE Detection

802.3af, 802.3at, 802.3bt,48VPassive 2 Pair and 4 Pair,

Mode A and Mode B

PoE Load channels 4Ch
PoE Input (RJ45) 42-57VDC
Note:(Does not detect 24V Passive PoE)
Compatible Port Speed 10/100M/1000M
Operating Temperature -25°Cto +50°C (-13°Fto +122°F)
Operating Humidity 5%-90%non-condensing
Storage Temperature -40 to +80°C (-40 to +176°F)
Dimensions(LxWxH) 400x185x60mm
Weight 4.15Kg
Warranty 1 Years



Overview

The PoE load tester is a PoE testing device for POE switch and POE injectors. It's suitable for testing POE load of multiport switches, it can detect the IEEE802.3 af/at standard, voltage and current. It can test the max POE output power by adjusting the current through the ADJ rotary knob. The device suitable for POE equipment manufactures to test the POE parameter of their products. Also the contractors can use it to test the POE device in normal projects.


4Ch PoE Load Tester - Adjust Current Regulation, 42-57VDC Input 0

Ordering Information



Model Description





LNK-PLT004


4Ch PoE Load Tester: Power Input 110-220V, PoE Detection:802.3af, 802.3at, Simultaneously test 4 channels of PoE load
