Highlight:
PoE Standard:: |
IEEE 802.3af/at/bt Power Over Ethernet |
Input Power: |
5V To 36V DC Adjustable. |
Power Consumption:: |
Max 70W, 10A, Via Cat5e Cable Or Above |
Dimensions (W X D X H): |
95 X 70 X 30 Mm |
Weight: |
0.25KG |
Casing: |
Aluminum Case |
Mounting Options: |
DIN-Rail / Wall-mount |
Operating Temperature:: |
-40°C To 80°C (-40°F To 176°F) |
LED Display: |
Temperature，Power，Voltage，Current |

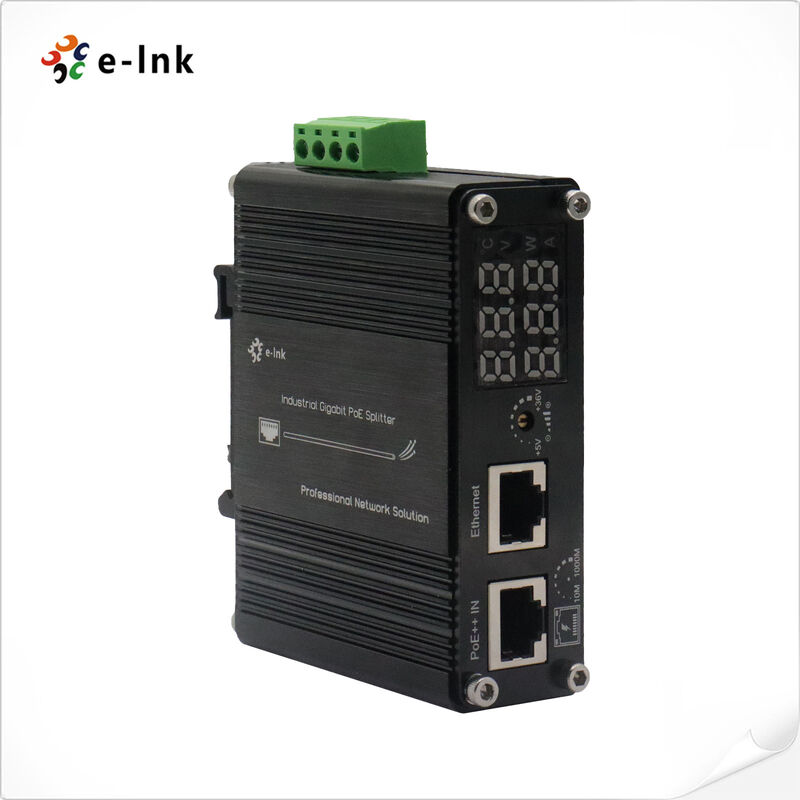

Industrial Gigabit 802.3bt PoE++ Splitter with LED Display and Adjustable Output Voltage 5V to 36V DC
Industrial PoE Splitter Overview
The LNK-INS901-LED is an industrial-grade Gigabit PoE Splitter designed to power and connect non-PoE devices in demanding environments. It efficiently separates a standard IEEE 802.3af/at/bt PoE input into gigabit data and adjustable DC power (5-36V), eliminating the need for separate electrical wiring to remote edge devices.
This plug-and-play unit requires no software or tools for configuration. It reliably delivers both data and power over the full 100-meter Ethernet distance. Featuring a rugged, fanless metal enclosure, comprehensive protection circuits, and clear diagnostic LEDs, the LNK-INS901-LED ensures flexible installation, operational simplicity, and high reliability in a wide range of industrial applications.
Industrial PoE Splitter Features
► Splits power and data from PoE Input
► 1 x RJ45 PoE Port (Data & Power In)
► 1 x RJ45 Port (Data Out)
► 2 x DC Output (5V to 36V DC adjustable, with a rotary knob)
► LED Display supports scrolling display of temperature (℃) + power (W) and voltage (V) + current (A).
► Support IEEE802.3af/at/bt PoE++
► Support 10/100/1000Base-T
► Distance up to 100 meters
► Short-circuit protection for power output
► IP40 rugged metal housing and fanless
► Support DIN-Rail & Wall-mount installation
► Extensive LED indicators for PoE diagnostics
► Wide operating temperature -40 ~ 80°C
Industrial PoE Splitter Technical Indexes
|
Ethernet
|
|
Standards:
|
IEEE 802.3 10Base-T Ethernet
|
|
IEEE 802.3u 100Base-TX Fast Ethernet
|
|
IEEE 802.3ab 1000Base-T Gigabit Ethernet
|
|
IEEE 802.3af Power over Ethernet
|
|
IEEE 802.3at Power over Ethernet Plus
|
|
IEEE 802.3bt 4-pair Power over Ethernet
|
|
Processing Type:
|
Forward
|
|
Half-duplex, Full-duplex
|
|
Forward Filter Rate:
|
1,488,000pps (1000Mbps)
|
|
Cabling:
|
1000Base-T: Cat5e or above
|
|
Maximum Distance:
|
Cat5e UTP up to 100m
|
|
Interface:
|
“PoE IN (Power + Data)” port: 1 x RJ45 10/100/1000Base-T
|
|
“Ethernet” port: 1 x RJ45 10/100/1000Base-T
|
|
DC output: 1 x removable 4-Pin terminal block
|
|
Power over Ethernet
|
|
PoE Standard:
|
IEEE 802.3af/at/bt Power over Ethernet
|
|
Electrical and Mechanical
|
|
Power Output:
|
5V to 36V DC adjustable.
|
|
Power Consumption:
|
Max 70W, 10A, via Cat5e cable or above
|
|
LED Display
|
|
Temperature:
|
°C
|
|
Power
|
W
|
|
Voltage
|
V
|
|
Current
|
A
|
|
Mechanical
|
|
Dimensions (W x D x H):
|
95 x 70 x 30 mm
|
|
Weight:
|
0.25Kg
|
|
Casing:
|
Aluminum Case
|
|
Mounting Options:
|
DIN-Rail / Wall-mount
|
|
Environmental
|
|
Operating Temperature:
|
-40°C to 80°C (-40°F to 176°F)
|
|
Storage Temperature:
|
-40°C to 85°C (-40°F to 185°F)
|
|
Relative Humidity:
|
5% to 95% non-condensing
|
|
MTBF:
|
>200,000hrs
|
|
Regulatory Approvals
|
|
ISO9001
|
Industrial PoE Splitter Ordeing Information
|
Model
|
Description
|
|
LNK-INS901-LED
|
Industrial IEEE 802.3af/at/bt Gigabit PoE Splitter, with LED Display, Output Voltage 5V to 36V DC adjustable, max output 70W, Support DIN-Rail mounting and Wall mounting installation
|
|
Mounting Options
|
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
|
