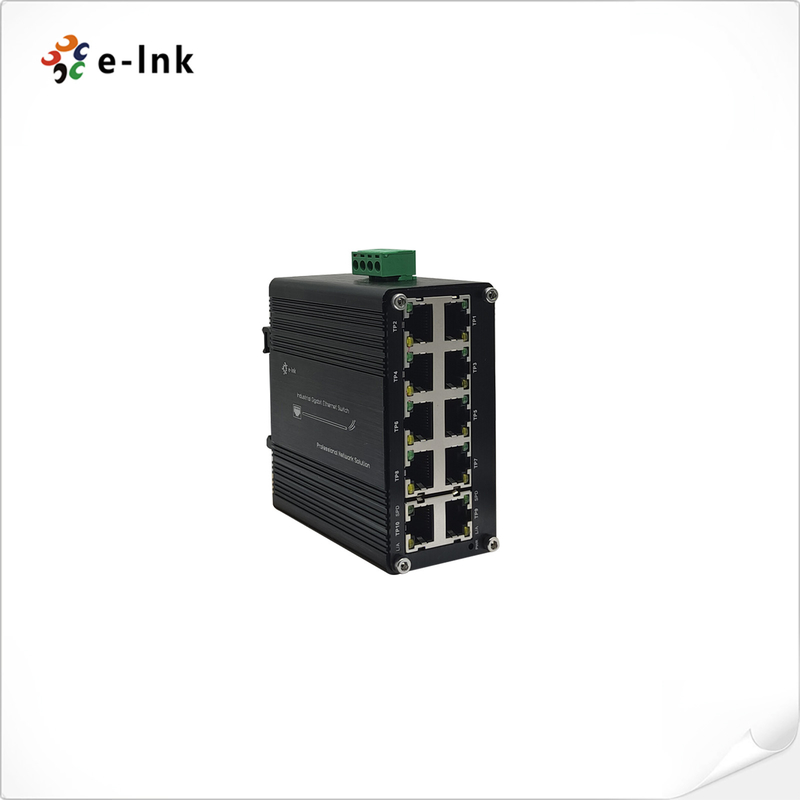

Mini Industrial 10-Port 10/100/1000T Compact Ethernet Switch

Name: Mini Industrial 10-Port 10/100/1000T Compact Ethernet Switch
Brand: E-link China Technology Co.,LTD
SKU: LNK-IMC010G
Price: 44.90 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ISO9001

Model Number: LNK-IMC010G

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: US$29.9 ~ US$59.9/pc

Packaging Details: Fiber Media Converter Standard Package

Delivery Time: 5-10 working days

Payment Terms: T/T, Western Union, MoneyGram,PayPal

Supply Ability: 10000pcs/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      10/100/1000T Mini Ethernet Switch, 10 Port Compact Ethernet Switch


Input Power:	12~48VDC	Connector:	10 X 10/100/1000BASE-T RJ45 Auto-MDI/MDI-X Ports
Power Consumption::	<10W	Dimensions (WxDxH)::	95 X 88 X 46mm
Weight:	300g	Casing:	Aluminum Case

Input Power:	12~48VDC
Connector:	10 X 10/100/1000BASE-T RJ45 Auto-MDI/MDI-X Ports
Power Consumption::	<10W
Dimensions (WxDxH)::	95 X 88 X 46mm
Weight:	300g
Casing:	Aluminum Case

Description

Mini Industrial 10-Port 10/100/1000T Compact Ethernet Switch

Mini Industrial 10-Port 10/100/1000T Compact Ethernet Switch

Industrial Ethernet Switch Advantages

10-port 10/100/1000BASE-T RJ45 with auto-MDI/MDI-X function
Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex
12~48VDC wide range power input
Supports 802.3x Flow control
Complies with IEEE 802.3az Energy Efficient Ethernet (EEE)
Supports DIN-Rail and Wall-mount installation

Specifications

Ethernet
Standards:	IEEE 802.3 Ethernet
	IEEE 802.3u Fast Ethernet
	IEEE 802.3ab Gigabit Ethernet
	IEEE 802.3x Full-Duplex Flow Control
	IEEE 802.3az Energy Efficient Ethernet (EEE)
Forward & Filtering Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Connector:	10 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Electrical and Mechanical
Input Power:	12~48VDC Redundant power with polarity reverses protection function
Power Consumption:	<10W
Power Input Overload:	Automatic Resettable
Reverse Polarity:	Present
Dimensions (WxDxH):	95 x 88 x 46mm
Weight:	300g
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount

Overview

LNK-IMC010G Series is a Mini Industrial 10-Port 10/100/1000T Gigabit Ethernet Switch with 12~48VDC wide range power input.

Mini Industrial 10-Port 10/100/1000T Compact Ethernet Switch 0

Order Information

Model	Description
LNK-IMC010G	Mini Industrial 10-Port 10/100/1000T Gigabit Ethernet Switch
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► Power Supply is to be purchased separately
