Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE
Model Number: LNK-GYM7404G-SFP
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: USD168/PCS
Packaging Details: Industrial Ethernet Switch Standard Carton Packaging
Delivery Time: 7-10 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, PayPal
Supply Ability: 1000000PCS/Month
RJ45 Port: |
4x10/100/1000Base-TX |
Fiber Port: |
4x100/1000Base-FX SFP |
Maximum Packet Length: |
Up To 10K Bytes |
MAC Address Table: |
8K |
Backplane Bandwidth: |
20Gbps |
Packet Forwarding Rate: |
14.88Mpps |
RJ45 Port: |
4x10/100/1000Base-TX |
Fiber Port: |
4x100/1000Base-FX SFP |
Maximum Packet Length: |
Up To 10K Bytes |
MAC Address Table: |
8K |
Backplane Bandwidth: |
20Gbps |
Packet Forwarding Rate: |
14.88Mpps |

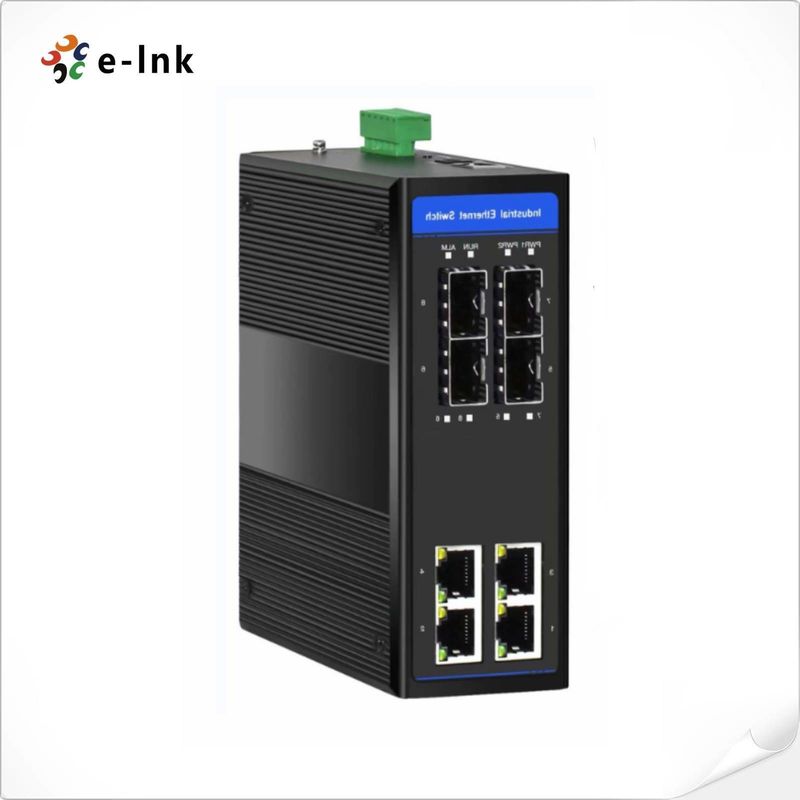

Managed Industrial 4-port 10/100/1000BASE-T + 4-port 100/1000BASE-X SFP Ethernet Switch
Industrial Ethernet Switch Advantages:
100/1000BASE-X mini-GBIC/SFP slots for SFP type auto detection
Provide SC/FC/ST/LC fiber port (optional), support single/dual fiber transmission
Support 10K bytes giant frame, compatible with various extension protocol
Support IEEE802.3az energy efficient Ethernet technology, 8K MAC address table
Technical Indexes
| Physical Port | |
| RJ45 port and speed | 4x10/100/1000Base-TX |
| Fiber port and speed | 4x100/1000Base-FX SFP (Dual Mode, Auto Detection) |
| Power Information | |
| Power access mode | Phoenix terminal, DC seat |
| Redundant power input | DC 9-56V / DC5V |
| Physical Property | |
| Protection grade | IP40 aluminum case |
| Dimensions | 138mm x 106mm x 41mm (L x W x H) |
| Installation mode | DIN Rail/Wall-mountable |
| Weight | 700g |
| Working Environment | |
| Operating Temperature | -40℃~80℃ |
| Operating Humidity | 5%~90% non-condensing |
| Storage Temperature | -40℃~85℃ |
| Warranty | |
| MTBF | 500,000 hours |
| Defects Liability Period | 5-year warranty, lifetime technical support |
Overview
LNK-GYM7404G-SFP Series is a new generation industrial Managed Ethernet switch with 4-Port 10/100/1000Base-TX
and 4-Port 100/1000Base-X SFP that provide stable and reliable Ethernet transmission offered by E-link
Ordering Information
| Model | Description |
| LNK-GYM7404G-SFP | Managed 4-Port 10/100/1000Base-T + 4-Port 100/1000Base-X SFP Ethernet Switch |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
| ► SFP module is to be purchased separately. | |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ►24W/1A 24VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
