Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE
Model Number: LNK-GY4E1V1D
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: USD329/PCS
Packaging Details: Industrial Ethernet Switch Standard Carton Packaging
Delivery Time: 7-10 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, PayPal
Supply Ability: 1000000PCS/Month
Gigabit Fiber Port (FC Default): |
1 Ports |
10/100M Ethernet Port With Physical Isolation To Share 100M Speed: |
4 Ports |
Analog Video: |
1 Ports |
RS485 Return Data: |
1 Ports |
Input Voltage: |
24VDC(18-36VDC), Redundant Dual Inputs |
Operating Temperature: |
-40℃-85℃ |
Gigabit Fiber Port (FC Default): |
1 Ports |
10/100M Ethernet Port With Physical Isolation To Share 100M Speed: |
4 Ports |
Analog Video: |
1 Ports |
RS485 Return Data: |
1 Ports |
Input Voltage: |
24VDC(18-36VDC), Redundant Dual Inputs |
Operating Temperature: |
-40℃-85℃ |

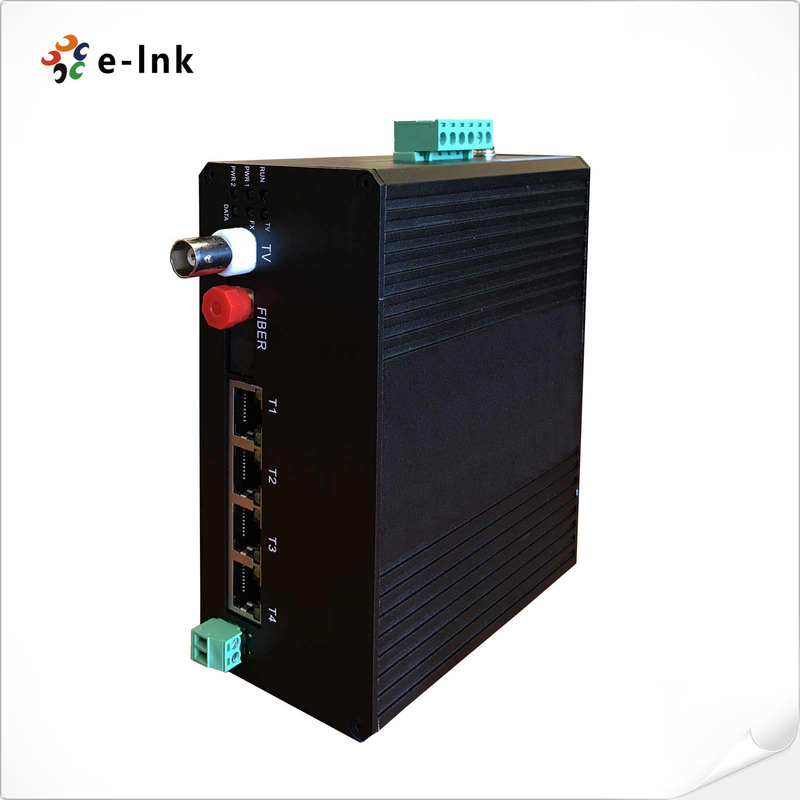

Industrial Video Ethernet Switch: 4x10/100M Ethernet + 1xVideo + 1xRS485 Data + 1xGigabit Fiber
Industrial Ethernet Switch Advantages:
Support 1536 bytes frame; with 1Mbit built-in frame memory
4Ethernet Ports support 10/100M auto-negotiation , Full/Half duplex mode, auto-MDI-MDI-X
Support 1024 MAC address, with automatic MAC address learning and update functions
Suitable for DSLAM bandwidth expansion over the existing fiber optical cable
Automatically select the Store and Forward mode or Cut-Through mode to reduce the delay;
Support LED to monitor each port’s working state
Terminal Block Power Input
Super lightening protection, IP40 protection
Redundant dual DC power inputs
-40℃-85℃ temperature range, DIN-Rail/ Wall-mounting
Technical Indexes
| Parameter | Specifications |
| Physical Characteristics |
Housing: Aluminum Alloy material with IP40 Protection Dimension: 138mm(L) X 112mm(W) X 60mm(H) Weight: 690g Installation: Din-Rail mounting, Wall mounting |
| Interfaces |
4 RJ45 Ports Comply with IEEE802.3, IEEE802.3u, 10/100Base-T(X) 10/100Base-T(X) auto negotiation speed Full/Half duplex mode Auto MDI-MDI-X connection Up to 100M Cat-5 transmission distance 1 BNC Port Video format PAL/NTSC/SECAM Video Impedance 75Ω 1 Data Port Data Format RS485 1 Fiber Port Comply with IEEE802.3u, 1000Base-FX Rate: 1000Mbps Wavelength: 1310nm/1550nm Up to 500m transmission distance with multi-mode Up to 20km,40km,60km,80km transmission distance with single-mode SC/ST/FC interfaces optional |
| Power |
Input Voltage: 24VDC(18-36VDC), Redundant dual inputs Input Current: <0.5A @24VDC Overload Current Protection: Support Reverse Polarity Protection: Support Redundant Protection: Support Connection: 6-pin terminal blocks |
| Environmental Limits |
Operating Temperature: -40℃-85℃ Storage Temperature: -40℃-85℃ Ambient Relative Humidity: 5%-95% (non-condensing) |
| Warranty | 5-year |
Overview
LNK-GY4E1V1D Series physical isolation Ethernet switch is designed for hardened industrial environment. which provides
4x10/100M Ethernet + 1xVideo + 1xRS485 + 1xGigabit Fiber. The physical isolated Industrial Ethernet Switch can transmit
4 channel separate and fully isolated 10/100M Ethernet. It's ideal for building a internal network and public network
at the same time. And it's also suitable for 4 highly isolated networks occasions and suitable for DSLAM
bandwidth expansion without changing the original fiber optical cable.
