Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: LNK-INS301-5V
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: PoE Power Splitter Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 5000pcs/month
Keywords: |
PoE Power Splitter |
Output Voltage: |
5VDC Power OUT |
Weight: |
0.25Kg |
Casing: |
Aluminum Case |
Power Consumption: |
25W Max |
Mounting Options: |
DIN-Rail / Wall-mount |
Keywords: |
PoE Power Splitter |
Output Voltage: |
5VDC Power OUT |
Weight: |
0.25Kg |
Casing: |
Aluminum Case |
Power Consumption: |
25W Max |
Mounting Options: |
DIN-Rail / Wall-mount |

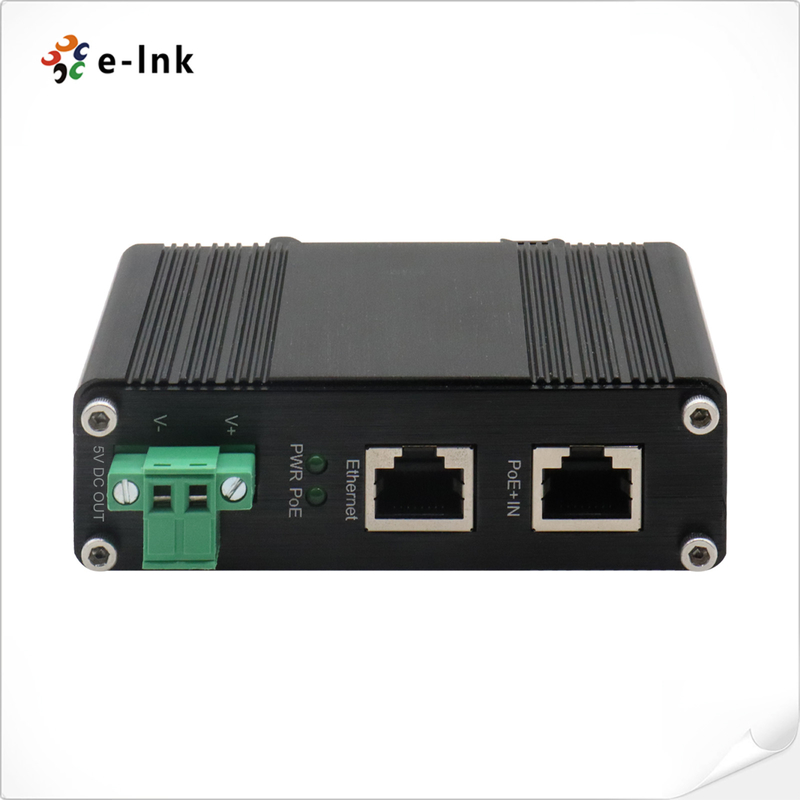

PoE Power Splitter Industrial Gigabit 802.3at 30W Power Over Ethernet 5VDC Output
PoE Power Splitter Advantages
► Splits power and data from PoE Input
► One RJ-45 PoE Port (Data & Power In)
► One RJ-45 Port (Data Out)
► One 5VDC Output (2-pin Terminal Block)
► Support IEEE802.3af/at PoE
► Support 10/100/1000Base-T
► Distance up to 100 meters
Technical Indexes
| Ethernet | |
| Standards: | IEEE 802.3 10Base-T Ethernet |
| IEEE 802.3u 100Base-TX Fast Ethernet | |
| IEEE 802.3ab 1000Base-T Gigabit Ethernet | |
| IEEE 802.3af Power over Ethernet | |
| IEEE 802.3at Power over Ethernet Plus | |
| Processing Type: | Forward |
| Half-duplex, Full-duplex | |
| Forward Filter Rate: | 1,488,000pps (1000Mbps) |
| Cabling: | 1000Base-T: Cat5 or above |
| Maximum Distance: | Cat5 UTP up to 100m |
| Interface: | “PoE (Power + Data)” Input Port: 1 x RJ-45 10/100/1000Base-T |
| “Data” Out Port: 1 x RJ-45 10/100/1000Base-T | |
| DC Out Plug Connector: 1 removable 2-Pin terminal block | |
| Environmental | |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF: | >200,000hrs |
| Regulatory Approvals | |
| ISO9001 | |
| FCC part 15, Class A | |
| EN55022:2006+A1: 2007 Class A | |
| Surge Protection: | |
| RJ45: 1KV | |
| Power: 500W | |
| ESD: 4KV/8KV | |
Overview
LNK-INS301-5V series is an Industrial Grade, Gigabit Ethernet, PoE Splitter, designed to deliver data, via RJ-45 Ethernet connector, and electrical power, via screw terminal block, to non-PoE devices. This device saves the high cost of running separate electrical service to edge devices.
Ordering Information
| Model | Description |
| LNK-INS301-5V | Industrial IEEE802.3at Gigabit PoE Splitter Output Voltage 5VDC, maximum output of 20W at 5VDC, Support DIN-Rail mounting and Wall mounting installation, -40 to 80°C operating temperature |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
