Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: LNK-INS301-24V
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: PoE Power Splitter Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 5000pcs/month
Keywords: |
PoE Power Splitter |
Output Voltage: |
20W 24VDC |
Weight: |
0.25Kg |
Distance: |
Up To 100 Meters |
Casing: |
IP40 Aluminum Case |
Mounting Options: |
DIN-Rail / Wall-mount |
Keywords: |
PoE Power Splitter |
Output Voltage: |
20W 24VDC |
Weight: |
0.25Kg |
Distance: |
Up To 100 Meters |
Casing: |
IP40 Aluminum Case |
Mounting Options: |
DIN-Rail / Wall-mount |

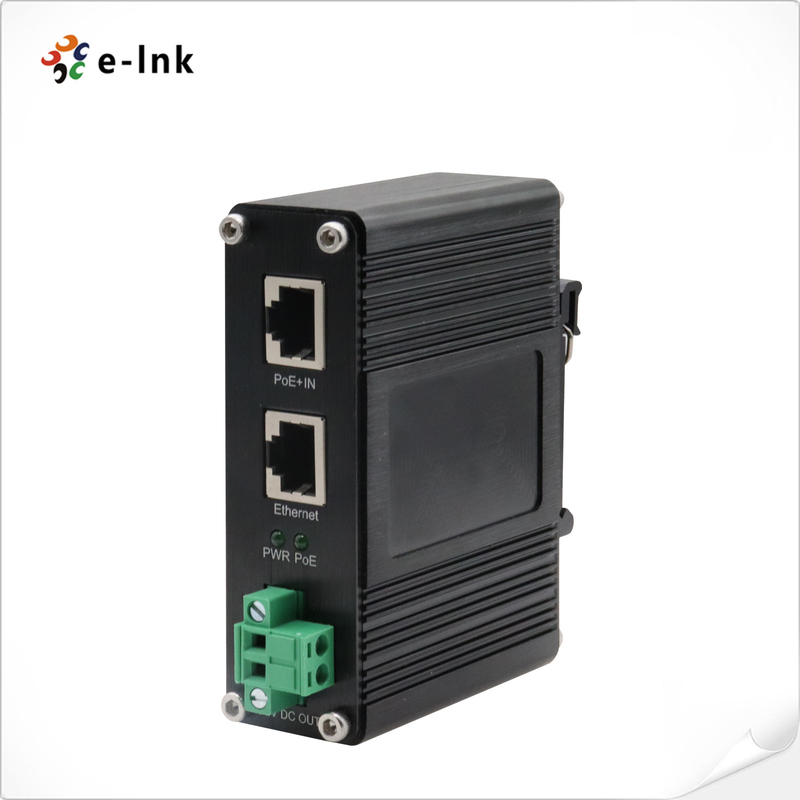

PoE Power Splitter Industrial Gigabit 802.3at Power Over Ethernet 24VDC Output
PoE Power Splitter Advantages
► Splits power and data from PoE Input
► One RJ-45 PoE Port (Data & Power In)
► One RJ-45 Port (Data Out)
► One 24VDC Output (2-pin Terminal Block)
► Support IEEE802.3af/at PoE
► Support 10/100/1000Base-T
Technical Indexes
| Power over Ethernet | |
| PoE Standard: | IEEE 802.3af/at Power over Ethernet |
| Number of devices that can be powered: |
1 (24VDC) (Vary on device’s power requirement; cannot be over 20 watts.) |
| Environmental | |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF: | >200,000hrs |
| Electrical and Mechanical | |
| Power Output: | 20W 24VDC (Terminal Block) |
| Power Consumption: | 25W Max. |
| LED Indicators: | |
| PWR: | 24VDC Power OUT |
| POE: | PoE Power IN |
| Dimensions (WxDxH): | 95 x 70 x 30 mm |
| Weight: | 0.25Kg |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |
Overview
LNK-INS301-24V series is an Industrial Grade, Gigabit Ethernet, PoE Splitter, designed to deliver data, via RJ-45 Ethernet connector, and electrical power, via screw terminal block, to non-PoE devices. This device saves the high cost of running separate electrical service to edge devices.
Ordering Information
| Model | Description |
| LNK-INS301-24V | Industrial IEEE802.3at Gigabit PoE Splitter Output Voltage 24VDC, maximum output of 20W at 24VDC, Support DIN-Rail mounting and Wall mounting installation, -40 to 80°C operating temperature |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
