Mini Industrial 5 Ports Gigabit Ethernet Switch 12 - 48VDC DIN Rail Unmanaged

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ROHS,FCC,CE

Model Number: LNK-IMC005G

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiation

Packaging Details: Ethernet Switch Standard Export Package

Delivery Time: 5-12 working days

Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal

Supply Ability: 1000 pcs/month

Get Best Price
Contact Now
Specifications
Highlight:

Unmanaged Gigabit Ethernet Switch

,

DIN Rail Gigabit Ethernet Switch

,

48VDC Unmanaged Ethernet Switch

Keywords:
Industrial Gigabit Ethernet Switch
Ethernet Port:
5 10/100/1000BASET RJ45
MTBF:
200,000 Hrs
Input Power:
12~48VDC
Casing:
IP40 Aluminum Case
Mounting Options:
DIN-Rail / Wall-mount
Keywords:
Industrial Gigabit Ethernet Switch
Ethernet Port:
5 10/100/1000BASET RJ45
MTBF:
200,000 Hrs
Input Power:
12~48VDC
Casing:
IP40 Aluminum Case
Mounting Options:
DIN-Rail / Wall-mount
Description
Mini Industrial 5 Ports Gigabit Ethernet Switch 12 - 48VDC DIN Rail Unmanaged

DIN Rail Unmanaged Mini Industrial 5 Ports Gigabit Ethernet Switch 12~48VDC

Industrial Din Rail Ethernet Switch Advantages

► 5-port 10/100/1000BASE-T RJ45 with auto-MDI/MDI-X function

► Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex

► 12~48VDC wide range power input

► Supports 802.3x Flow control

Gigabit Ethernet Switch Technical Indexes

Standards:

IEEE 802.3 Ethernet

IEEE 802.3u Fast Ethernet

IEEE 802.3ab Gigabit Ethernet

IEEE 802.3x Full-Duplex Flow Control

IEEE 802.3az Energy Efficient Ethernet (EEE)

IEEE 802.3af/at Optional

Forward & Filtering Rate:

14,880pps (10Mbps)

148,800pps (100Mbps)

1,488,000pps (1000Mbps)

Packet Buffer:

1Mbits

Packet Length:

10Kbytes

MAC Address Table:

8K

Switch Fabric:

10Gbps/non-blocking

Exchange Property

Backplane bandwidth: 10Gbps;

Packet forwarding rate: 14.88Mpps

Connector:

5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports

Operating Temperature:

-40°C to 80°C (-40°F to 176°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF

> 200,000 hrs

Input Power:

12~48VDC (Terminal Block)

Power Consumption:

<6W (PoE In Use: <125W)

Power Input Overload:

Automatic Resettable

Reverse Polarity:

Present

Dimensions (WxDxH):

95 x 70x 29mm

Weight:

0.25Kg

Unmanaged Network Switch Overview

LNK-IMC005G Series is a Mini Industrial 5-Port 10/100/1000T Gigabit Ethernet Switch with 12~48VDC wide range power input. This unmanaged industrial Ethernet switch is designed to match the critical industrial standards. With reliable and simple operation against vibration and shock, and wide operation temperature range, it could match a variety of harsh environment. The switch complies with CE and FCC standards, and passed the 100% burning test to ensure that it will fulfill the needs of industrial applications. It is a good choice for an economical solution for industrial Ethernet connections.

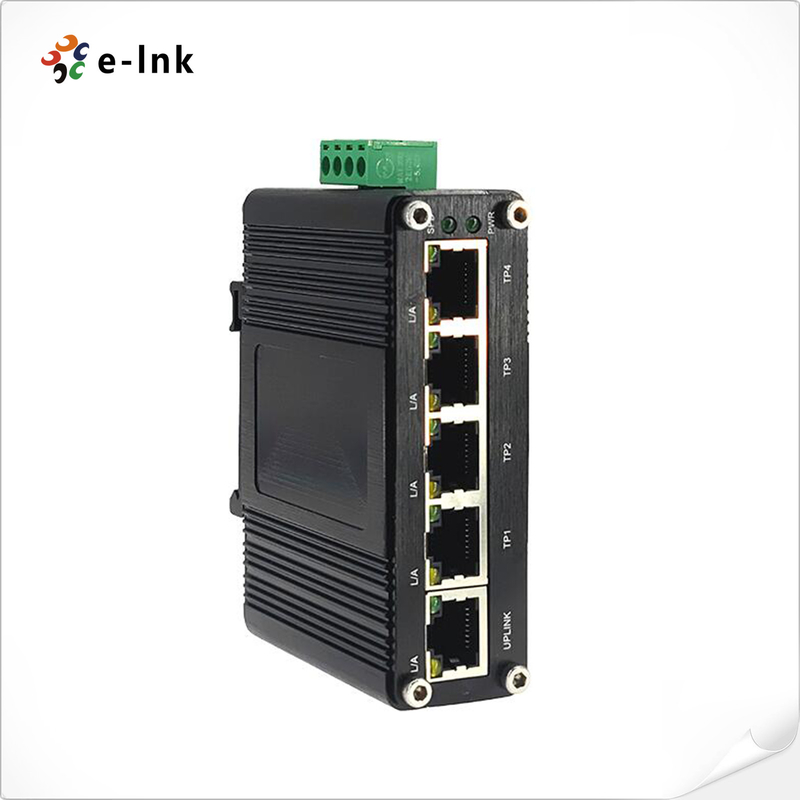

Mini Industrial 5 Ports Gigabit Ethernet Switch 12 - 48VDC DIN Rail Unmanaged 0

Mini Industrial 5 Ports Gigabit Ethernet Switch 12 - 48VDC DIN Rail Unmanaged 1

Ordering Information

Model Description
LNK-IMC005G Mini Industrial 5-Port 10/100/1000T Gigabit Ethernet Switch
Mounting Options ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options ► Power Supply is to be purchased separately
