4Ch RS232 To Fiber Optic Converter 15 meters Industrial standard screw terminal

Product Details

Place of Origin: China

Brand Name: E-link

Certification: CE

Model Number: LNK-IRS232-C04-SFP

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: USD105/PCS

Packaging Details: Industrial Multi-Channel RS-232/422/485 Serial to Fiber Converters Standard Carton Packaging

Delivery Time: 7-10 working days

Payment Terms: L/C, T/T, Western Union, MoneyGram, PayPal

Supply Ability: 1000000PCS/Month

Get Best Price
Contact Now
Specifications
Highlight:

4Ch rs232 to fiber optic converter

,

800kbps rs232 to fiber optic converter

,

Screw Terminal rs232 to fiber converter

Fiber Interface:
SFP, FC, SC Or ST
Cable Requirement:
Multi-Mode: 50/125um, 62.5/125um Single-Mode: 9/125um
Fiber Port:
1 Fiber Port
Power Input:
12~48VDC
Casing:
Aluminum Case
Operating Temperature:
-40°C To 80°C
Fiber Interface:
SFP, FC, SC Or ST
Cable Requirement:
Multi-Mode: 50/125um, 62.5/125um Single-Mode: 9/125um
Fiber Port:
1 Fiber Port
Power Input:
12~48VDC
Casing:
Aluminum Case
Operating Temperature:
-40°C To 80°C
Description

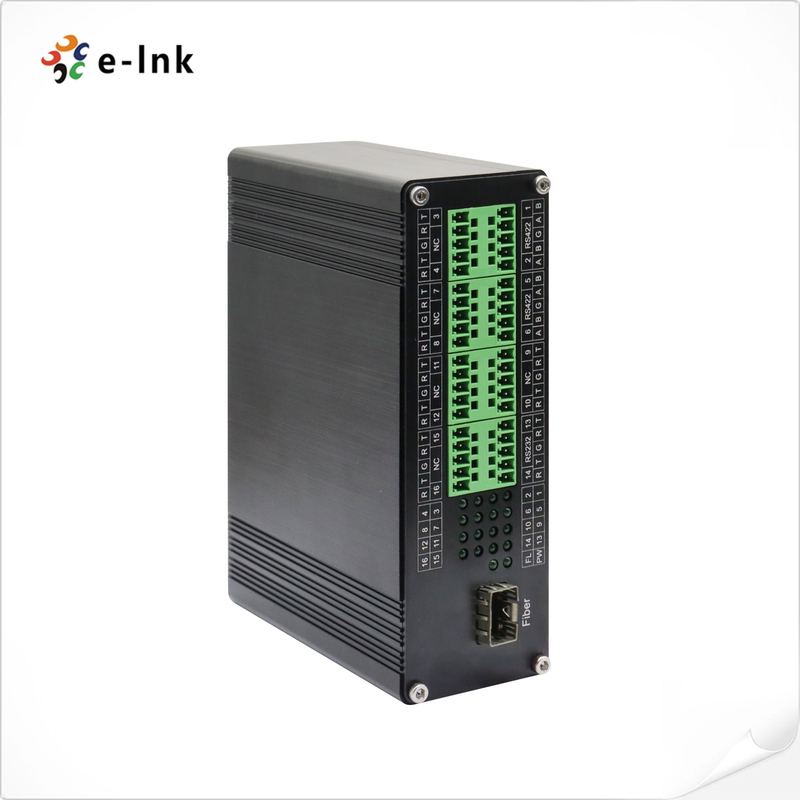

4Ch RS232 To Fiber Optic Converter 15 meters Industrial standard screw terminal

Industrial 4Ch RS-232 Serial To Fiber Converter

Industrial Ethernet Switch Serial to Fiber Converter Advantages:

  • Fan-less and Din-Rail design for Harsh Industrial Environment
  • Built in Bi-Directional RS232/422/485(Terminal Block) Serial Port
  • Supports Multi-Channel Serial Data Ports: 4~16Ch RS232, 4~16Ch RS485 or 2~8Ch RS422
  • Serial data is fully transparent, baud rate is self-adaptive, no setting is required
  • Supports SFP, FC, SC or ST Multi-mode 2Km, Single-mode 20Km

Serial to Fiber Converter Technical Indexes

RS232 Serial Interface
Physical interface Industrial standard screw terminal
Data type Up to 16Ch RS232 Bi-Direction
RS-232 signals TxD, RxD, GND
Serial port line distance (copper) 15 meters
Baud Rate 0 ~ 800kbps
RS422 Serial Interface
Physical interface Industrial standard screw terminal
Data type Up to 8Ch RS422 Bi-Direction
RS-422 signals Tx+, Tx-, Rx+, Rx-, GND
Serial port line distance (copper) 1000 meters
Baud Rate 0 ~ 800kbps
RS485 Serial Interface
Physical interface Industrial standard screw terminal
Data type Up to 16Ch RS485 Bi-Direction
RS-485 signals Data+, Data-, GND
Serial port line distance (copper) 1000 meters
Baud rate 0 ~ 800kbps
Power Requirements
Power input 12~48VDC
Power consumption <6W
Power connector Terminal block
Power protection Reverse polarity protection
LED Indicator
PWR Power Supply
FL Fiber Link Status
Data 1~16 Serial Data Signal























































































Serial to Fiber Converter Overview

E-link LNK-IRS series is an industrial grade Multi-Channel RS232/RS485/RS422 to fiber optic converter which converts a

standard RS232/RS485/RS422 signal to a fiber optic link as to extend the signal up to 2KM on multimode fiber and 20KM  on single mode fibe

4Ch RS232 To Fiber Optic Converter 15 meters Industrial standard screw terminal 0

Ordering Information

Model Description
LNK-IRS232-C04-SFP Industrial 4Ch RS-232 Serial to Fiber Converter, SFP Port (not including SFP modules), -40°C ~ 80°C
Mounting Options ► Default DIN-Rail Bracket installed
Power Options ► DIN-Rail Power Supply. Open Wire for Terminal Block
► Power Supply needs to be purchased separately
