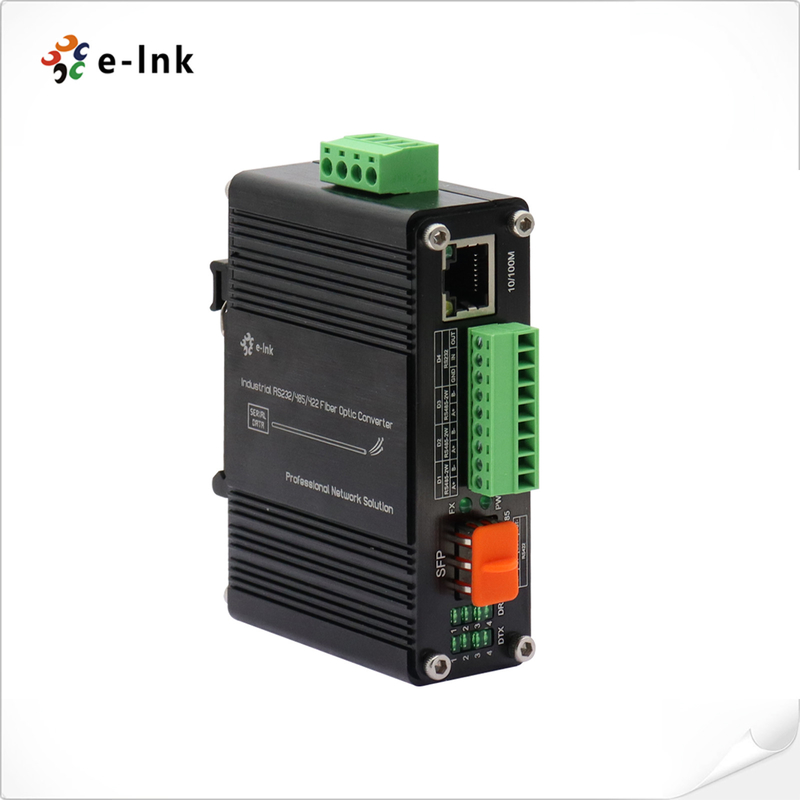

Mini Industrial 10/100Base-T to 100Base-X SFP Fiber Ethernet Media Converter

Mini Industrial 10/100Base-T to 100Base-X SFP Fiber Ethernet Media Converter

Ethernet Media Converter Features

► 1 x 10/100BASE-T RJ45 port with auto MDI / MDI-X function

► 1 x SFP port,100Base-FX

► 1 x RS232/RS485/RS422 Serial port

► Supports Full/Half-duplex, Auto-negotiation

► IEEE 802.3az Energy Efficient Ethernet (EEE) compliant

► Extensive LED indicators for network diagnostics

► Built-in surge and static protection

► 12~48VDC Terminal Block Power Input

► Supports DIN-Rail & Wall-mount installation

► Environmentally hardened -40°C to 75°C
(-40°F to 167°F) operating temperature

Overview

LNK-IMCRS1100-SFP is a DIN rail type media converter that supports external SFP Modules and

meets EN55022 standard. It is a hardened grade product whose operating temperature range is

-40°C to +75°C. LNK-IMCRS1100-SFP supports 10/100Base-T and 100Base-X SFP and RS232/RS485/RS422

serial data. The Ethernet port supports both half-duplex and full-duplex mode. Users can use different type of

SFP modules (single-mode/multi-mode fiber, 1/2 core) as needed. It converts a standard RS232/RS485/RS422

signal / RJ45 data to a fiber optic link as to extend the signal up to 2Km on multimode fiber and 80Km on

single mode fiber.
