Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: LNK-GYM7208G-SFP
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: Ethernet Switch Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000 pcs/month
Keyword: |
8-port Managed Industrial Ethernet Switch |
Power Input: |
DC 9-56V |
Fiber Port: |
2x1000Base-FX SFP |
RJ45 Port: |
8x10/100/1000Base-TX |
Protection Grade: |
IP40 Aluminum Case |
Installation Mode: |
DIN Trail Or Wall-mountable |
Management Function: |
CLI/WEB/SNMP |
Warranty: |
3 Years |
Keyword: |
8-port Managed Industrial Ethernet Switch |
Power Input: |
DC 9-56V |
Fiber Port: |
2x1000Base-FX SFP |
RJ45 Port: |
8x10/100/1000Base-TX |
Protection Grade: |
IP40 Aluminum Case |
Installation Mode: |
DIN Trail Or Wall-mountable |
Management Function: |
CLI/WEB/SNMP |
Warranty: |
3 Years |

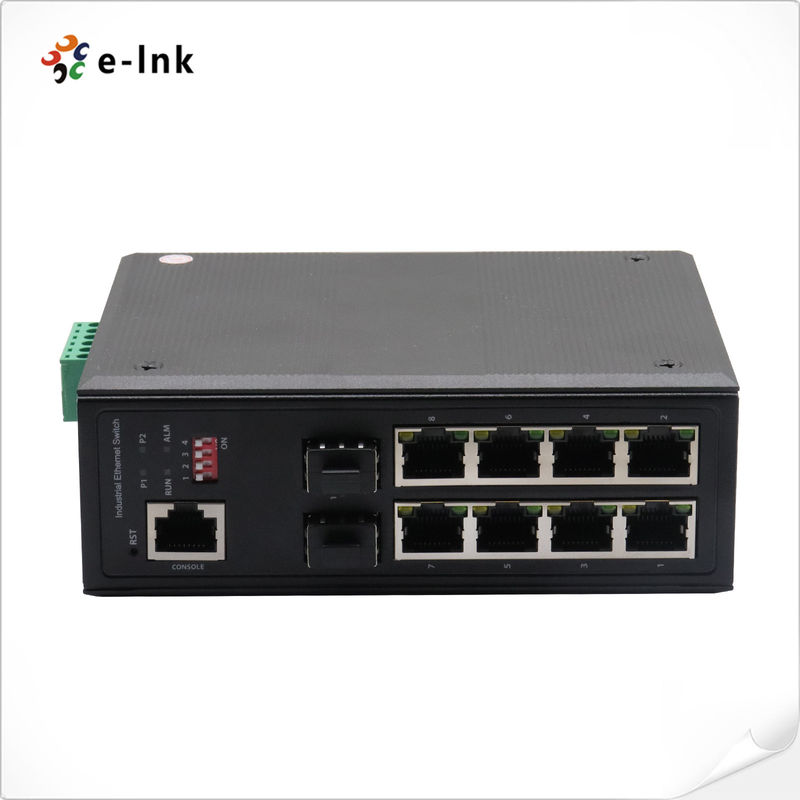

Managed Industrial Fiber Ethernet Switch With IP40 Aluminum Case Din Rail Mounting
8-port 10 100 1000T To 2-port 100 1000BASE-X SFP Ethernet Switch
8-Port 10/100/1000Mbps Managed Ethernet Switch Advantages
► 8x10/100/1000Base-TX RJ45 ports, 2x100/1000Base-X SFP ports
► 100/1000BASE-X mini-GBIC/SFP slots for SFP type auto detection
► Provide SC/FC/ST/LC fiber port (optional), support single/dual fiber transmission
► Electric 4KV surge protection, easy to use in outdoor environment
► Power input polarity protection design, no worry about wrong operation
Industrial Fiber Network Switch Technical Indexes
|
RJ45 port and speed |
8x10/100/1000Base-T |
|
|
Fiber port and speed |
2x100/1000Base-X SFP (Dual Mode, Auto Detection) |
|
|
Ethernet standards |
IEEE 802.1x authentication IEEE 802.1q-Tagging IEEE 802.1p-Qeueing Layer 2 QoS/CoS with min. 4 Queues per Port IEEE 802.1w RSTP rapid spanning tree IEEE 802.3ad Trunking IEEE 802.3x flow control IEEE 802.1D Spanning Tree IEEE802.1ab LLDP |
|
|
DIP |
State |
Description |
|
#1 |
ON |
RSTP Disabled |
|
OFF |
RSTP Enable |
|
|
#2 |
ON |
Port VLAN Enable |
|
OFF |
Port VLAN Disable |
|
|
#3 |
ON |
SFP Port is 100M |
|
OFF |
SFP Port 100M/1000M |
|
|
#4 |
N/A |
Function Reserve |
|
Power access mode |
Phoenix terminal, DC seat |
|
|
Redundant power input |
DC 9-56V |
|
|
Overload protection |
Yes |
|
|
Power reverse |
Support |
|
|
Power consumption |
Full-load<15W |
|
|
Protection grade |
IP40 aluminum case |
|
|
Cooling mode |
Natural cooling, no fan design |
|
|
Dimensions |
138mm x 106mm x 41mm (L x W x H) |
|
|
Installation mode |
DIN trail/wall-mountable |
|
8-port RJ45 To 2-port SFP Din Rail Ethernet Switch Overview
LNK-GYM7208G-SFP Serie is a new generation industrial Managed switch with 8-Port 10/100/1000Base-TX and 2-Port 100/1000Base-X SFP that provide stable and reliable Ethernet transmission offered by E-link, with high quality design and reliability. It is positioning in the broadband network intervention market, to offer and realize Ethernet data exchange, convergence and long-distance optical transmission with efficient bandwidth and reliable fiber optic network solutions for users.
8 Port Copper to 2 Port Fiber Network Switch Ordering Information
| Model | Description |
| LNK-GYM7208G-SFP | Managed Ethernet Switch 8-Port 10/100/1000Base-T + 2-Port 100/1000Base-X SFP |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
| ► SFP module is to be purchased separately. | |
| Mounting Options | ► Default DIN-Rail Bracket installed, Wall Mount Bracket is included. |
| Power Options | ►24W/1A 24VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
