Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: LNK-H4KE-60
Payment & Shipping Terms
Minimum Order Quantity: 1 pair
Price: Negotiation
Packaging Details: HDMI Video Extender Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000 pairs/month
Name: |
4K@60HZ HDMI Extender 60M With Loopout & Dual IR |
Model: |
LNK-H4KE-60 |
The Warranty: |
1 Year Free Warranty |
Dimension: |
82*65*17mm |
Name: |
4K@60HZ HDMI Extender 60M With Loopout & Dual IR |
Model: |
LNK-H4KE-60 |
The Warranty: |
1 Year Free Warranty |
Dimension: |
82*65*17mm |

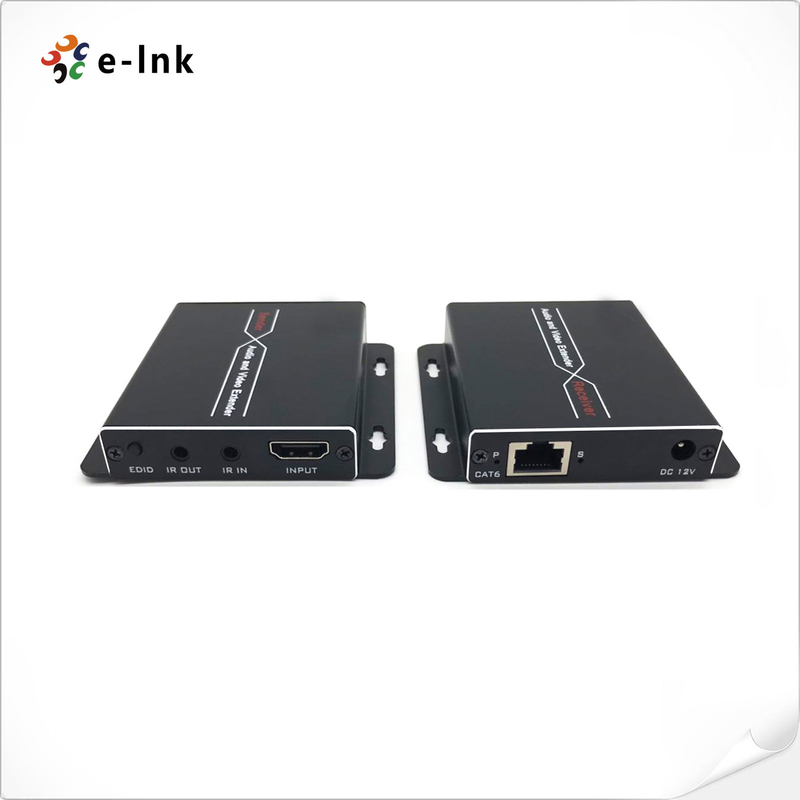

60M 4K 60HZ HDMI Fiber Extender With Aluminum Alloy Housing
4K@60HZ HDMI Extender 60M with Loopout & Dual IR
Aluminum alloy housing design, stable and durable ;compact size and Slim ,stronganti-interference, Wall-mounted type is more convenient;
Uncompressed transmits HDMl video and audio signals up to 60M over a single CAT6a/7 cable;D
Support video resolution up to 3840*2160@60Hz, 3D signal:
Support bi-direction wide band infrared signal transmission:
Support local loopout in sender
YUV4:4:4. HDMI 2.0 and HDCP 2.2 standard:
Build-in EDID function, can match many kind display device:
Ethernet cables with a standard IEEE - 568b connection, convenient installation;
Built-in ESD protectionHigh compatibility, can auto-match source and display device
Built-in automatic adjustment system, make the image smooth, clear and stable:
Technical Indexes
| Parameter | Description | |
| Video | Standards | HDMI2.0; HDCP 2.2 |
| Maximum pixel clock | 340MHz | |
| Maximum data rate | 18Gbps | |
| Maximum resolution | 3840*2160@60Hz (backward-compatible) | |
| Connector | HDMI-A | |
| Impedance | 100Ω | |
| IR | Interface | 3.5mm earphone seat |
| Signal direction | Bi-directional | |
| Signal type | Digital | |
| IR frequency | 20-60kHz | |
| UTP | Interface | RJ45 (IEEE - 568b connection) |
| Transmission distance | CAT6-60M | |
| Other | Power supply | The power adapter: DC 5V/1A |
| Power dissipation | MAX 3W | |
| Temperature | Operating: -5℃ ~ +70℃ | |
| Humidity | Operating: 5% ~ 90% | |
| Dimension | 82*65*17mm | |
| The warranty | 1 year free warranty | |
Overview
This HDMl Extender includes a transmitter unit (TX) and a receiver unit(RX), working as a pair, lt allows for蒸Q女回网transmission and extension uncompressed full HD 4K@60Hz HDMl signal via CAT6/6A/7 network cable, thetransmission distance is up to 60 meters with zero latency, Support Keyboard mouse control and localoopout , This product is perfect for AV transmission in applications of HD conference system, HD videoshooting, HD multimedia education svstem, HD digital advertising and signage etc.The device has a long transmission distance, low use cost, convenient installation and good compatibility, andit is a stable and efficient transmission method.
Ordering Information
| Part No | Description of product |
| LNK-H4KE-60 | 4K@60HZ HDMI Extender 60M With Loopout & Dual IR - 197 ft (60m |
