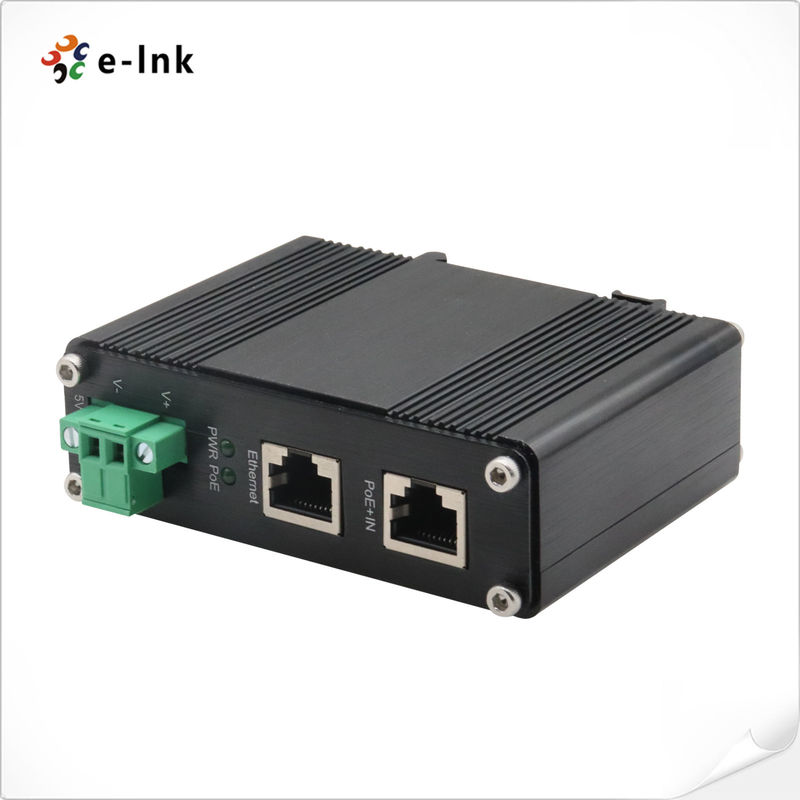

Industrial 802.3at Poe Splitter Gigabit Distance up to 100 meters

Name: Industrial 802.3at Poe Splitter Gigabit Distance up to 100 meters
Brand: E-link China Technology Co.,LTD
SKU: LNK-INS301-5V
Price: 42.90 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ROHS,FCC,CE

Model Number: LNK-INS301-5V

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: $6.9-79

Packaging Details: PoE Power Splitter Standard Export Package

Delivery Time: 5-12 working days

Payment Terms: T/T, Western Union, , Paypal

Supply Ability: 5000pcs/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      802.3at Poe Splitter Gigabit, 1000Mbps Poe Splitter Gigabit, 802.3at Passive Poe Splitter


Keywords:	PoE Power Splitter	Output Voltage:	5VDC Power OUT
Weight:	0.25Kg	Casing:	Aluminum Case
Power Consumption:	25W Max	Mounting Options:	DIN-Rail / Wall-mount

Keywords:	PoE Power Splitter
Output Voltage:	5VDC Power OUT
Weight:	0.25Kg
Casing:	Aluminum Case
Power Consumption:	25W Max
Mounting Options:	DIN-Rail / Wall-mount

Description

Industrial 802.3at Poe Splitter Gigabit Distance up to 100 meters

Industrial 802.3at Poe Splitter Gigabit Distance Up To 100 Meters

Industrial 10/100/1000Mbps 802.3at PoE+ Splitter Output Voltage 5VDC

PoE Power Splitter Advantages
► Splits power and data from PoE Input
► One RJ-45 PoE Port (Data & Power In)
► One RJ-45 Port (Data Out)
► One 5VDC Output (2-pin Terminal Block)
► Support IEEE802.3af/at PoE
► Support 10/100/1000Base-T
► Distance up to 100 meters

Technical Indexes

Ethernet
Standards:	IEEE 802.3 10Base-T Ethernet
	IEEE 802.3u 100Base-TX Fast Ethernet
	IEEE 802.3ab 1000Base-T Gigabit Ethernet
	IEEE 802.3af Power over Ethernet
	IEEE 802.3at Power over Ethernet Plus
Processing Type:	Forward
	Half-duplex, Full-duplex
Forward Filter Rate:	1,488,000pps (1000Mbps)
Cabling:	1000Base-T: Cat5 or above
Maximum Distance:	Cat5 UTP up to 100m
Interface:	“PoE (Power + Data)” Input Port: 1 x RJ-45 10/100/1000Base-T
	“Data” Out Port: 1 x RJ-45 10/100/1000Base-T
	DC Out Plug Connector: 1 removable 2-Pin terminal block
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF:	>200,000hrs
Regulatory Approvals
ISO9001
FCC part 15, Class A
EN55022:2006+A1: 2007 Class A
Surge Protection:
RJ45: 1KV
Power: 500W
ESD: 4KV/8KV

Overview
LNK-INS301-5V series is an Industrial Grade, Gigabit Ethernet, PoE Splitter, designed to deliver data, via RJ-45 Ethernet connector, and electrical power, via screw terminal block, to non-PoE devices. This device saves the high cost of running separate electrical service to edge devices.
Industrial 802.3at Poe Splitter Gigabit Distance up to 100 meters
Ordering Information

Model	Description
LNK-INS301-5V	Industrial IEEE802.3at Gigabit PoE Splitter Output Voltage 5VDC, maximum output of 20W at 5VDC, Support DIN-Rail mounting and Wall mounting installation, -40 to 80°C operating temperature
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
