Product Details
Place of Origin: China
Brand Name: E-link
Certification: RoHS,CE,FCC
Model Number: LNK-IPE104-90
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: To be negotiated
Packaging Details: Standard Export Package
Delivery Time: 5-15working days
Payment Terms: L/C,, T/T, Western Union, MoneyGram,Credit Card
Supply Ability: 2000PCS/Month
Keyword: |
Industrial PoE Switch |
PoE Pin Assignment: |
1/2(+), 3/6(-),4/5(+), 7/8(-) |
Transmission Distance: |
100m |
Protection Level: |
IP40 |
Dimensions (WxDxH): |
95 X 70 X 30 Mm |
Weight: |
0.25Kg |
Casing: |
Aluminum Case |
Mounting Options: |
DIN-Rail / Wall-mount |
Keyword: |
Industrial PoE Switch |
PoE Pin Assignment: |
1/2(+), 3/6(-),4/5(+), 7/8(-) |
Transmission Distance: |
100m |
Protection Level: |
IP40 |
Dimensions (WxDxH): |
95 X 70 X 30 Mm |
Weight: |
0.25Kg |
Casing: |
Aluminum Case |
Mounting Options: |
DIN-Rail / Wall-mount |

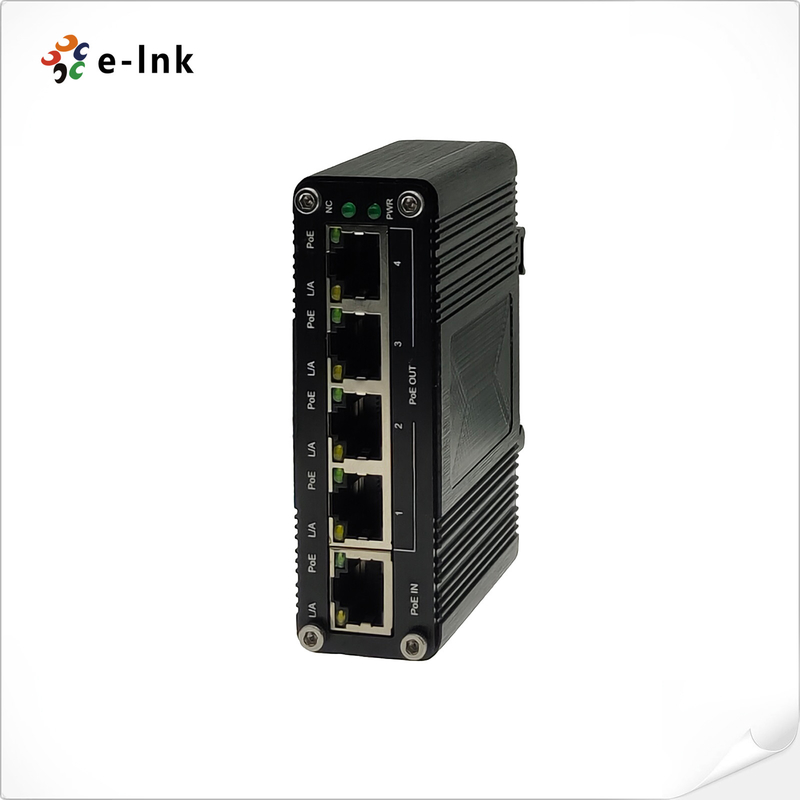

IP40 Aluminum Case 802.3at Industrial PoE Switch 100m Transmission
Industrial Gigabit PoE Extender 1-Port 802.3bt PoE++ to 4-Port 802.3af/at
Industrial PoE Switch Advantages
► 10/100/1000Mbps Ethernet Ports
► 1 RJ-45 PoE/PD + 4 RJ-45 PoE/PSE
► IP40-rated aluminum case
► Can be Powered by IEEE 802.3at or High-Power PoE 95W Power Sourcing Equipment
► Can Power IEEE 802.3af PoE, IEEE 802.3at or High-Power PoE 95W Powered Devices
► Extends an additional 100m for PoE network. Daisy chain support connection up to 3 PoE Extenders for a total PoE+ network extension of 400m (1,312 ft.)
► Support DIN-Rail & Wall-mount installation
► Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature
Industrial PoE Switch Technical Indexes
|
Ethernet Port |
|
|
PoE Input Port |
10/100/1000Base-TX RJ45, IEEE 802.3at PoE Input Input Power 50~57V DC, Max 30W |
|
PoE Output Port |
1*10/100/1000Base-TX RJ45, IEEE 802.3af/at/bt PoE Output Output Power: Max 75W in total, 25.5W@ 101m, 65W@ 200m |
|
Cascade connection |
Support 3 grade |
|
Power over Ethernet |
|
|
PoE Standard |
IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus |
|
PoE Pin Assignment |
1/2(+), 3/6(-),4/5(+), 7/8(-) |
|
Switch Property |
|
|
Protection Level |
IP 40 |
|
Operating Temperature |
-40°C to 80°C (-40°F to 176°F) |
|
Physical Parameter |
|
|
Dimensions (WxDxH) |
95 x 70 x 30 mm |
|
Weight |
0.25Kg |
|
Casing |
Aluminum Case |
|
Mounting Options |
DIN-Rail / Wall-mount |
|
Certifications |
|
|
Certifications |
CE, FCC, RoHS |
Industrial PoE Switch Overview
LNK-IPE104-90 is an industrial 1-Port 802.3bt PoE++ to 4-Port 802.3af/at Gigabit PoE Extender designed especially for the point to multipoint PoE application. The LNK-IPE104-90 can obtain a maximum of 95-watt PoE power from 802.3bt PoE++ input port and supplies a maximum of 75-watt PoE power budget for 4 PoE output ports, extending both the reach of Gigabit Ethernet Data and IEEE 802.3at Power over Ethernet over the standard 100m (328 ft.) Cat. 5/5e/6 UTP cable to 200m where up to 4 powered devices (PDs) can be powered at the same time. The LNK-IPE104-90 provides a simple solution for adding PoE ports without running more cabling and achieves more flexible network applications without requiring an external power adapter.
Industrial PoE Switch Ordering Information
|
Model |
Description |
|
LNK-IPE104-90 |
Industrial 1-Port 802.3bt PoE++ to 4-Port 802.3af/at Gigabit PoE Extender |
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
