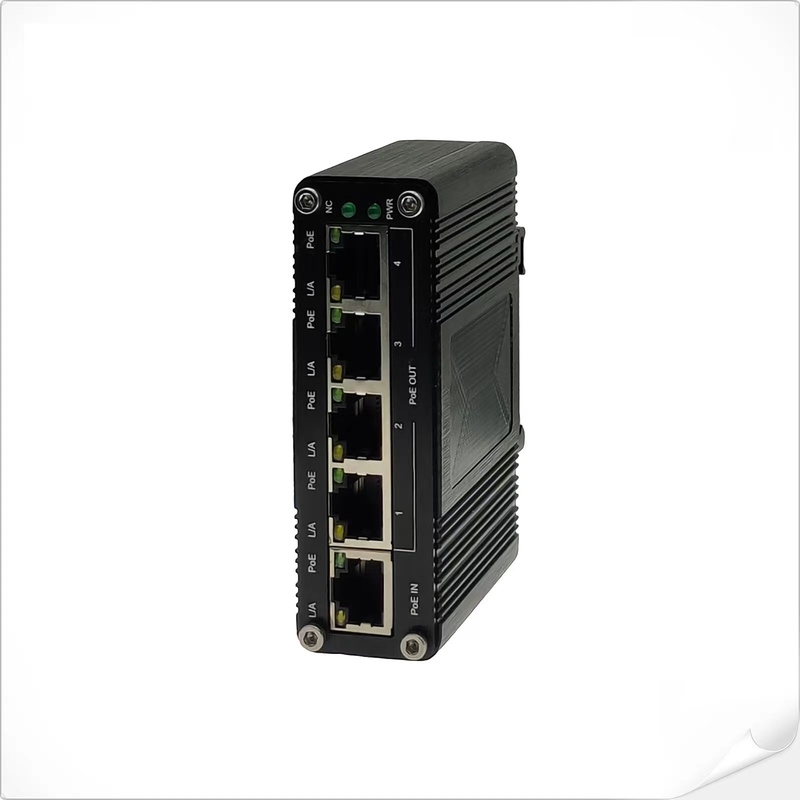

802.3at / Af Gigabit PoE Extender 4 Port 10Gbps Aluminum Case

Name: 802.3at / Af Gigabit PoE Extender 4 Port 10Gbps Aluminum Case
Brand: E-link China Technology Co.,LTD
SKU: LNK-IPE104-90
Price: 395.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: CE,FCC,RoSH

Model Number: LNK-IPE104-90

Payment & Shipping Terms

Minimum Order Quantity: 1

Packaging Details: Standard Export Packages

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 5000pcs/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                  802.3at Gigabit PoE Extender, 10Gbps Gigabit PoE Extender, Aluminum Case Poe Extender 4 Port


Cascade Connection:	Support 3 Grade	PoE Power Supply Type:	Mid-span And End-span
Transmission Distance:	100m	MAC Table:	8K
Switching Capacity:	10Gbps

Cascade Connection:	Support 3 Grade
PoE Power Supply Type:	Mid-span And End-span
Transmission Distance:	100m
MAC Table:	8K
Switching Capacity:	10Gbps

Description

802.3at / Af Gigabit PoE Extender 4 Port 10Gbps Aluminum Case

Industrial 1-Port 802.c PoE++ to 4-Port 802.3af/at Gigabit PoE Extender

PoE Extender Advantages

10/100/1000Mbps Ethernet Ports
1 RJ-45 PoE/PD + 4 RJ-45 PoE/PSE
IP40-rated aluminum case
Can be Powered by IEEE 802.3at or High-Power PoE 95W Power Sourcing Equipment
Can Power IEEE 802.3af PoE, IEEE 802.3at or High-Power PoE 95W Powered Devices
Extends an additional 100m for PoE network. Daisy chain support connection up to 3 PoE Extenders for a total PoE+ network extension of 400m (1,312 ft.)
Support DIN-Rail & Wall-mount installation
Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature

Technical Indexes

Ethernet Port
PoE Input Port	10/100/1000Base-TX RJ45, IEEE 802.3bt PoE Input Input Power 50~57V DC, Max 95W
PoE Output Port	1*10/100/1000Base-TX RJ45, IEEE 802.3bt/at PoE Output Output Power: Max 75W in total, 75W@ 101m, 65W@ 200m
Cascade connection	Support 3 grade
Power over Ethernet
PoE Standard	IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3bt Power over Ethernet Plus Plus
PoE Power Supply Type	Mid-span and End-span
PoE Pin Assignment	1/2(+), 3/6(-),4/5(+), 7/8(-)
Switch Property
Standards	IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3x Flow Control
Forwarding Modes	Store and Forward
Transmission Distance	100m
MAC Table	8K
Switching Capacity	10Gbps
Packet Forwarding Rate	14.88Mpps
Flow Control	IEEE 802.3x pause frame for full duplex, Back pressure for half duplex
Jumbo Frame	10K bytes
Environment
Surge Immunity	6KV, Standard: IEC6000-4-5
ESD Protection	6KV 1a Contact Discharge Level 3, 8KV 1b Air Discharge Level 3, Standard: IEC61000-4-2
Protection Level	IP 40
Operating Temperature	-40°C to 80°C (-40°F to 176°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Operating Humidity	0~95% (non-condensing)
Physical Parameter
Dimensions (WxDxH)	95 x 70 x 30 mm
Weight	0.25Kg
Casing	Aluminum Case
Mounting Options	DIN-Rail / Wall-mount
Certiﬁcations
Certiﬁcations	CE, FCC, RoHS
