100m Gigabit Industrial PoE Switch Waterproof IP65 Aluminum Case

Product Details

Place of Origin: China

Brand Name: E-link

Certification: CE,FCC,RoSH

Model Number: LNK-WP001G

Payment & Shipping Terms

Minimum Order Quantity: 1

Packaging Details: Standard Export Packages

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 5000pcs/month

Get Best Price
Contact Now
Specifications
Highlight:

100m Gigabit Industrial PoE Switch

,

IP65 Industrial PoE Switch

,

IP65 Gigabit PoE Extender

Pass Through Data Rates:
10/100/1000 Mbps Half/full Duplex
Connectors:
Shielded RJ-45, EIA 568A And 568B
Network Cables:
Shielded Category 5 (or Higher)
Dimensions:
140mm X 40mm X 30mm
Mounting:
Wall Of Shelf
Pass Through Data Rates:
10/100/1000 Mbps Half/full Duplex
Connectors:
Shielded RJ-45, EIA 568A And 568B
Network Cables:
Shielded Category 5 (or Higher)
Dimensions:
140mm X 40mm X 30mm
Mounting:
Wall Of Shelf
Description
100m Gigabit Industrial PoE Switch Waterproof IP65 Aluminum Case

100m Gigabit Industrial PoE Switch Waterproof IP65 Aluminum Case

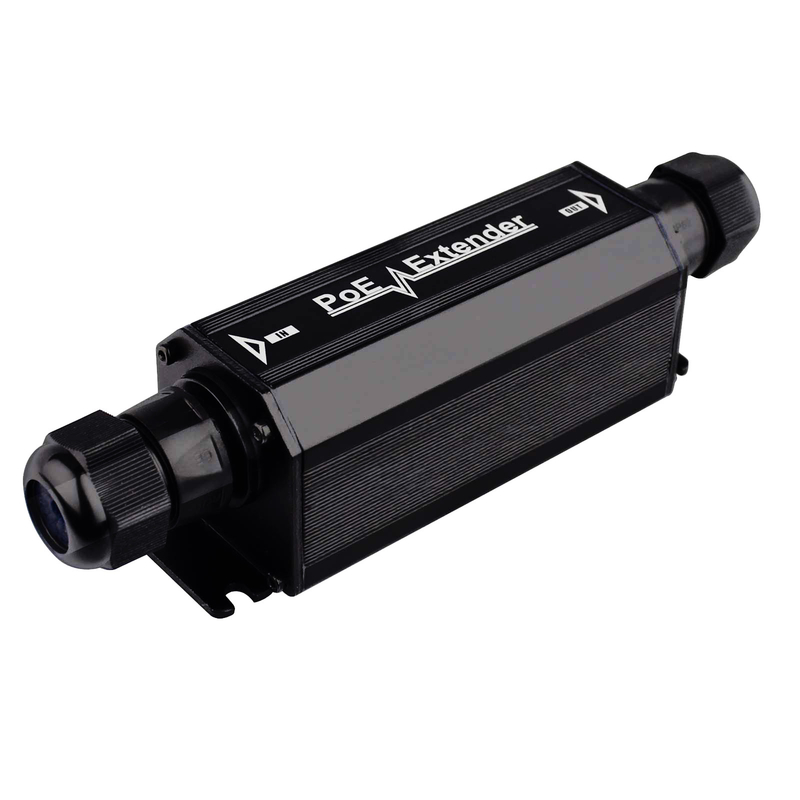

Water-Proof Outdoor Industrial Gigabit PoE Extender

Water-Proof Outdoor Industrial Gigabit PoE Extender Advantages

  • Compatible with IEEE802.3af and IEEE802.3at
  • Extends the range of PoE and Ethernet an additional 100 meters
  • No additional power supply is required
  • Automatically detects and protects PoE equipments from being damaged by incorrect installation
  • Full-rate network throughout the whole extended distance
  • Compact size, Wall-Mountable design
  • Easy plug-and-play installation
  • IP65 aluminum case
  • Operating Ambient Temperature:-40 to 75℃

Technical Indexes


  • Item
  • Description
  • No. of channels
  • 1
  • Pass Through Data Rates
  • 10/100/1000 Mbps half/full duplex
  • Power over Ethernet input
  • Pin Assignment and Polarity:
  • Both 1/2 (-), 3/6 (+) and 7/8 (-), 4/5 (+)
  • Power over Ethernet Output
  • Pin Assignment and Polarity:
  • 1/2 (-), 3/6 (+)
  • Output Power: up to 22W
  • Connectors
  • Shielded RJ-45, EIA 568A and 568B
  • Network cables
  • Shielded category 5 (or higher)
  • Dimensions
  • 140mm x 40mm x 30mm
  • Mounting
  • Wall of shelf
  • Environment
  • Outdoor IP65
  • Environmental Conditions
  • Operating Ambient Temperature:-40 to 75℃
  • Operating Humidity:
  • Maximum 90%, Non-condensing
  • Storage Temperature:-40 to 75℃
  • Storage Humidity:
  • Maximum 95%, Non-condensing
  • Regulatory Compliance
  • IEEE 802.3af (PoE), IEEE 802.3at (PoE+)
  • RoHS Compliant, CE, FCC
  • Electromagnetic
  • FCC Part15, Class B

Application
100m Gigabit Industrial PoE Switch Waterproof IP65 Aluminum Case 0
Ordering Information


ModelDescription
LNK-WP001G10/100/1000M PoE Extender 15.4W, extends the data transmission from 100m to 500m depending on PDs power required and power source
