Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: LNK-POE-2P
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: PoE Injector Splitter Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000 pcs/month
Product Name: |
Passive PoE Kit (Passive PoE Splitter + Passive PoE Injector) |
Product Model: |
LNK-POE-2P |
Dimensions: |
210 X 19 X 19 Mm |
Product Weight (g): |
55g |
Product Name: |
Passive PoE Kit (Passive PoE Splitter + Passive PoE Injector) |
Product Model: |
LNK-POE-2P |
Dimensions: |
210 X 19 X 19 Mm |
Product Weight (g): |
55g |

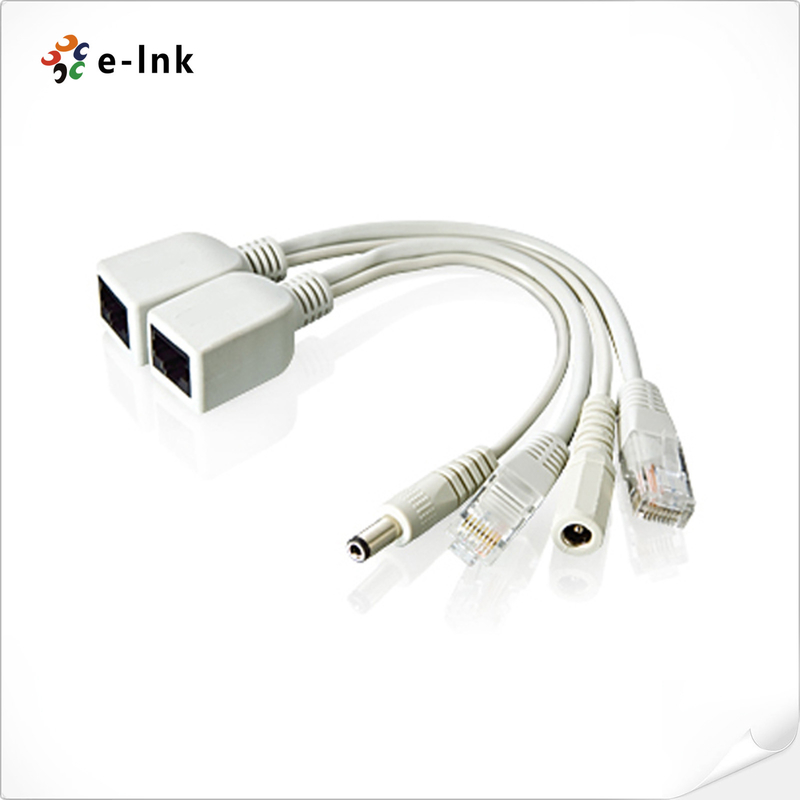

LNK POE 2P PVC Case Passive PoE Kit Including Splitter And Injector
Passive PoE Kit (Passive PoE Splitter + Passive PoE Injector)
Passive PoE Kit (Passive PoE Splitter + Passive PoE Injector) Advantages
► Passive PoE Splitter + Passive PoE Injector
► Easy to install PoE Application for AP, CPE, IPCam, IP Phone
► Use the Power Supply from Powered Device
► Accept up to 57V Voltage Input
Technical Indexes
| Interface | Data pin: 1,2,3,6 |
| Power pin: 4, 5, 7, 8 (12~57V) | |
| Case of material | PVC |
| Network cable | T IA/EIA 568 Cat. 5 |
| Ethernet data rate | 10/100 Mbps |
| Ethernet cable connector | RJ-45 |
| Operating Temperature | 0°C - 40°C (32°F - 104°F) |
| Storage temperature | -40°C - 70°C (-40°F - 158°F) |
| Operating Humidity | 10% ~ 80% (non-condensing) |
| Storage Humidity | 5% ~ 90% (non-condensing) |
| Product Weight (g) | 55g |
| Dimensions | 210 x 19 x 19 mm |
| ( L x W x H (mm) ) |
Overview
LNK-POE-2P is a passive Power over Ethernet kit, including one passive splitter and one passive injector. It provides the most convenient and cost effective way for you to make PoE application, you do not worry about how to find power outlet when using AP or IPCam. It uses the power adapter that comes with your network device. There is no need for special PoE power adapter.
Ordering Information
| Item | Description |
| LNK-POE-2P | Passive PoE Kit: Passive PoE Splitter + Passive PoE Injector |
