Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: ETH-DIMC2012FM
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: Fiber Managed Switch Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000 pcs/month
Keywords: |
14 Ports Managed Industrial Fiber Switch |
Data Transfer Rate: |
10/100/1000Mbps |
Optical Port: |
14 Port 1000Base-X SFP |
Input Power: |
12~48V DC Redundant Power |
Dimensions: |
149 X 114 X 50 Mm |
Mounting Options: |
DIN-Rail Mount |
Keywords: |
14 Ports Managed Industrial Fiber Switch |
Data Transfer Rate: |
10/100/1000Mbps |
Optical Port: |
14 Port 1000Base-X SFP |
Input Power: |
12~48V DC Redundant Power |
Dimensions: |
149 X 114 X 50 Mm |
Mounting Options: |
DIN-Rail Mount |
Managed Industrial Fiber Switch DIN Rail Mounting

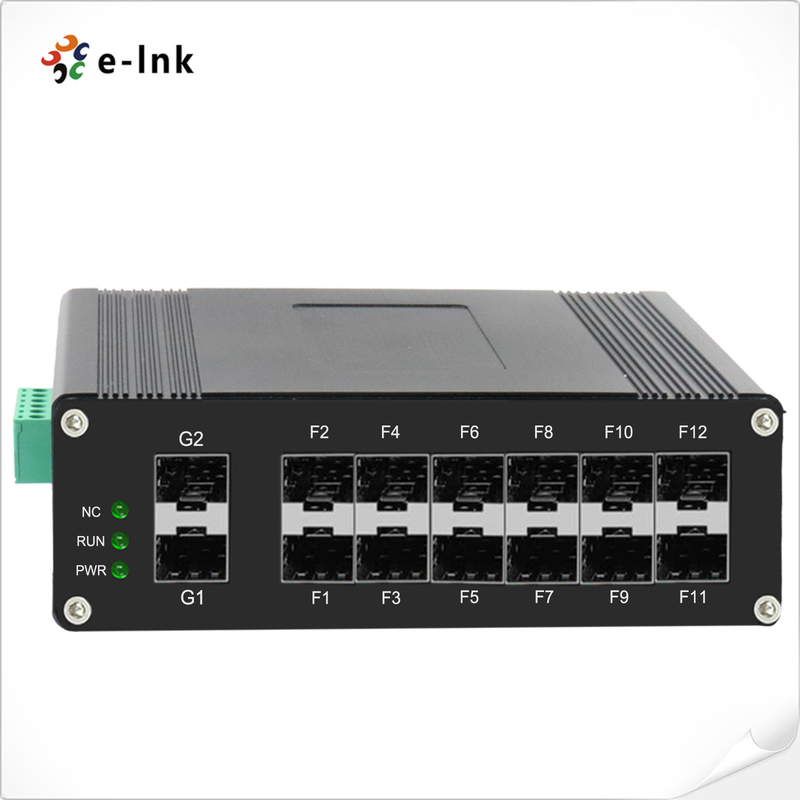

Fiber Switch Industrial L2+ 12 Port 1000X SFP + 2 Port 1000X Gigabit Managed Network Switch
14 Port SFP Network Switch Advantages
► Support 12x1000Base-X SFP + 2x1000Base-X SFP
► DIP Switch supports one-key VLAN, one-key Ring Management
► Support connecting USB-C port for easy management, without the need to access the RS232 serial port at all
► 10K Bytes Jumbo Frame
Gigabit Fiber Switch 14 port Overview
ETH-DIMC2012FM series is an Industrial 14 Port L2+ Managed Gigabit SFP Switch. It comprises of a 12-Port 100/1000Base-X SFP fiber optic interface and 2 extra 1.25G SFP interfaces delivered in an IP40 case with redundant power system, being able to operate under the temperature range from -40 to 80 Degree Celsius, the ETH-DIMC2012FM can be placed in virtually any environment. The ETH-DIMC2012FM provides advanced Layer 2 to Layer 4 data switching and redundancy, Quality of Service traffic control, network access control and authentication, as well as Secure Management features to protect customer’s industrial and automation network connectivity.
14 Port SFP Managed Switch Technical Indexes
|
Optical Port |
14 x 1000Base-X SFP |
|||
|
USB-C: |
1 x USB-C (for Management) |
|||
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|||
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|||
|
Input Power: |
12~48VDC, Redundant Power (6-pin Terminal Block) |
|||
|
Power Consumption: |
8W Max |
|||
|
DIP Switch |
||||
|
4-digit DIP switch function
|
DIP |
Function |
Settings |
|
|
SW 1 |
VLAN |
ON - Enabled |
OFF - Disabled |
|
|
SW 2 |
Ring Management |
ON - Enabled |
OFF - Disabled |
|
|
SW 3 |
Reserved |
ON - Reserved |
OFF - Reserved |
|
|
SW 4 |
Reserved |
ON - Reserved |
OFF - Reserved |
|
|
Dimensions (WxDxH): |
149 x 114 x 50 mm |
|||
|
Weight: |
0.55Kg |
|||
|
Casing: |
Aluminum Case |
|||
|
Mounting Options: |
DIN-Rail mount |
|||
Fiber Switch 14 Port 1000Mbps Ordering Information
|
Model |
Description |
|
ETH-DIMC2012FM |
Industrial L2+ Managed 12-Port 1000X SFP + 2-Port 1000X SFP Fiber Switch |
|
SFP Options |
SFP option. Please select your SFP on our SFP Options Page |
|
SFP module is to be purchased separately. |
|
|
Mounting Options |
Default DIN-Rail Bracket installed |
|
Power Options |
DIN-Rail Power Supply. Open Wire for Terminal Block. |
|
Power Supply is to be purchased separately. |
