Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: ETH-IMC408M
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: Managed Network Switch Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000 pcs/month
Keywords: |
Managed Switch 8 Port |
Operating Temperature: |
-40°C To 80°C |
RJ45 Port: |
8 Port 10/100/1000T |
Optical Port: |
4 Port 1000X SFP |
Data Type: |
1 X RS485 (Optional) |
DIP Switch: |
4-digit DIP Switch Function |
Keywords: |
Managed Switch 8 Port |
Operating Temperature: |
-40°C To 80°C |
RJ45 Port: |
8 Port 10/100/1000T |
Optical Port: |
4 Port 1000X SFP |
Data Type: |
1 X RS485 (Optional) |
DIP Switch: |
4-digit DIP Switch Function |

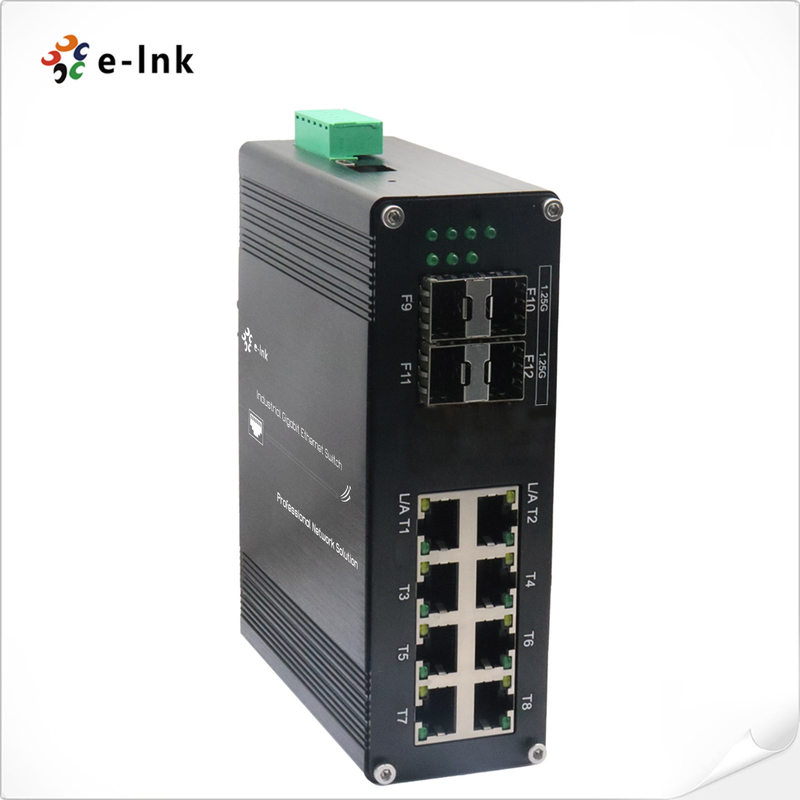

DIN Rail Mounting Hardened SFP Network Switch Managed 8 Port
Network Switch L2+ 8-Port 10/100/1000T + 4-Port 1000X SFP Managed Ethernet Switch
Managed Ethernet Switch Advantages
► Support 8x10/100/1000Base-T + 4x1000Base-X SFP
► DIP Switch supports one-key VLAN, one-key Ring Management
► Support connecting USB-C port for easy management, without the need to access the RS232 serial port at all
► 9K Bytes Jumbo Frame
► IEEE 802.3az Energy Efficient Ethernet (EEE)
Network Switch 8 port 10/100/1000M Overview
ETH-IMC408M Series is the L2+ managed 8-port 10/100/1000Base-T + 4-port 1000Base-X SFP hardened Ethernet switch. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.
Din Rail Managed Switch Technical Indexes
|
Connector: |
8 x RJ45 |
|||
|
RS485: |
1 x RS485 (Optional) |
|||
|
Optical Port: |
4 x 1000Base-X SFP |
|||
|
USB-C: |
1 x USB-C (for Management) |
|||
|
Data type |
1Ch RS485 Bi-Direction |
|||
|
RS-485 signals |
Data +, Data-, GND |
|||
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|||
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|||
|
Input Power: |
12~48VDC, Redundant Power (6-pin Terminal Block) |
|||
|
Power Consumption: |
8W Max. |
|||
|
DIP Switch |
||||
|
4-digit DIP switch function |
DIP |
Function |
Settings |
|
|
SW 1 |
VLAN |
ON - Enabled |
OFF - Disabled |
|
|
SW 2 |
Ring Management |
ON - Enabled |
OFF - Disabled |
|
|
SW 3 |
Reserved |
ON - Reserved |
OFF - Reserved |
|
|
SW 4 |
Reserved |
ON - Reserved |
OFF - Reserved |
|
Din Rail 8 Port Network Switch Ordering Information
|
Model |
Description |
|
ETH-IMC408M |
Industrial L2+ 8-Port 10/100/1000T + 4-Port 1000X SFP Managed Ethernet Switch |
|
SFP Options |
SFP option. Please select your SFP on our SFP Options Page |
|
SFP module is to be purchased separately. |
|
|
Mounting Options |
Default DIN-Rail Bracket installed |
|
Power Options |
DIN-Rail Power Supply. Open Wire for Terminal Block. |
|
Power Supply is to be purchased separately. |
