Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: LNK-IMC802G-SFP
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: Fiber Switch Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000 pcs/month
Keywords: |
Industrial 8-Port Din Rail Fiber Switch |
Input Power: |
12~57VDC Redundant Power |
Optical Port: |
8 Port 1000BASE-X SFP |
Copper Port: |
2 Port 10/100/1000Base-T Ethernet |
Installations: |
DIN-Rail And Wall-mount |
Operating Temperature: |
-40°C To 80°C (-40°F To 176°F) |
Keywords: |
Industrial 8-Port Din Rail Fiber Switch |
Input Power: |
12~57VDC Redundant Power |
Optical Port: |
8 Port 1000BASE-X SFP |
Copper Port: |
2 Port 10/100/1000Base-T Ethernet |
Installations: |
DIN-Rail And Wall-mount |
Operating Temperature: |
-40°C To 80°C (-40°F To 176°F) |
DIN Rail Wall Mount Fiber Optical Switch 12~57VDC Redundant Power
DIN Rail Wall Mount Industrial Fiber Switch 8 Port Gigabit
Gigabit Fiber Switch 2 Port 10/100/1000Base-T To 8 Port 1000BASE-X SFP
8 Port Gigabit Fiber Switch Advantages
► 2 10/100/1000Base-TX + 8 1000Base-X SFP
► 10/100/1000Mbps RJ45 Port Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► Supports 802.3x Flow control
► 9K Bytes Jumbo Frame
► Redundant Power Inputs

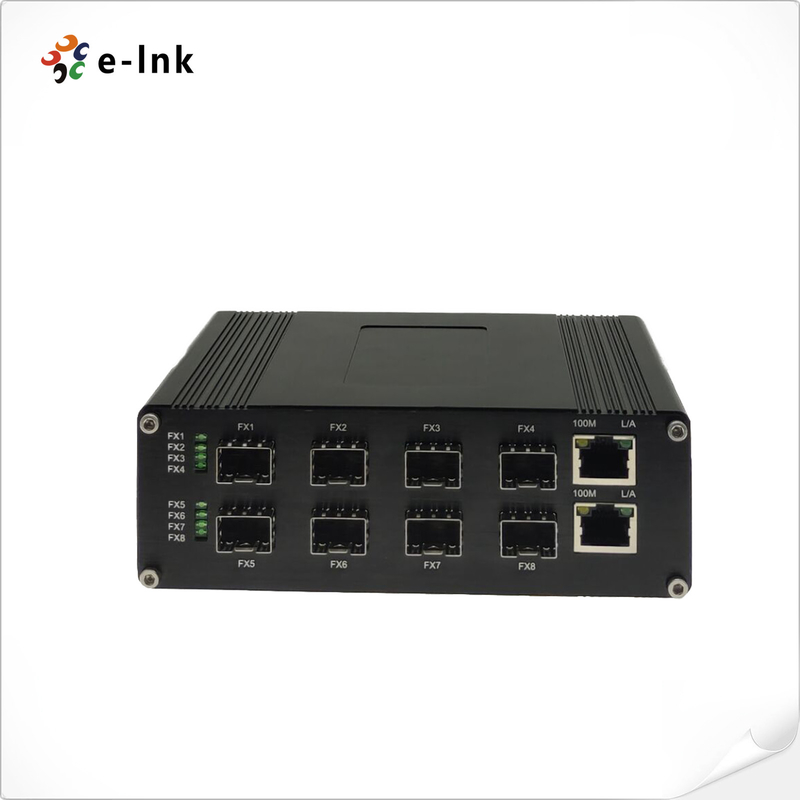

Industrial 8 Port SFP Fiber Network Switch Overview
LNK-IMC802G-SFP Series is a unmanaged 8 ports 1000Base-X SFP + 2 ports 10/100/1000Base-T Optical Ethernet Switch. The Switch provides SFP slot to support the use of SFP (Small Form-factor Pluggable) transceiver module. User can choose different types of SFPs (1.25g only). The Switch supports 1 or 2 core Single-mode or Multi-mode fiber. The product operates at temperatures ranging from -40oC to 80oC and DIN-Rail installation.
8 Port 1000Mbps Din Rail Fiber Switch Technical Indexes
|
Standards: |
IEEE802.3 10BASE-T |
|
IEEE802.3u 100BASE-TX/FX |
|
|
IEEE802.3ab 1000BASE-T |
|
|
IEEE802.3z 1000BASE-X |
|
|
IEEE802.3p QoS |
|
|
IEEE802.1d Spanning Tree |
|
|
Ethernet Port: |
2 x RJ45 |
|
Optical Port: |
8 x 1000Base-X SFP |
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF |
> 200,000 hrs |
|
Input Power: |
12~57VDC , Redundant Power (6-pin Terminal Block) |
|
Power Consumption: |
12W Max. |
|
Dimensions (WxDxH): |
149 x 110 x 50 mm |
|
Weight: |
0.5Kg |
|
Casing: |
Aluminum Case |
|
Mounting Options: |
DIN-Rail / Wall-mount |
Din Rail Industrial 8 Port Fiber Optical Switch Ordering Information
|
Model |
Description |
|
LNK-IMC802G-SFP |
Industrial Ethernet Switch: 2-Port 10/100/1000Base-TX + 8-port 1000Base-X SFP |
|
SFP Options |
► SFP option. Please select your SFP on our SFP Options Page |
|
► SFP module is to be purchased separately. |
|
|
Mounting Options |
► Default DIN-Rail Bracket installed |
|
Power Options |
► 24W/1A 24VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
|
► Power Supply is to be purchased separately. |
