Product Details
Place of Origin: CHINA
Brand Name: E-LINK
Certification: CE, RoHS, FCC
Model Number: LNK-IMC104G
Payment & Shipping Terms
Minimum Order Quantity: 1PCS
Price: Negotiation
Packaging Details: PoE Switch Standard Export Package
Delivery Time: 3~5 working days
Payment Terms: Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability: 5000 pcs per month
Product Name: |
Industrial Unmanaged PoE Switch |
PoE Standard: |
IEEE 802.3af/at |
Connector: |
4 X RJ45 |
Optical Port: |
1 X 1000Base-X (SFP, SC, FC, ST Optional) |
Working Temperature: |
-40°C To 80°C |
Warranty: |
5 Years |
Product Name: |
Industrial Unmanaged PoE Switch |
PoE Standard: |
IEEE 802.3af/at |
Connector: |
4 X RJ45 |
Optical Port: |
1 X 1000Base-X (SFP, SC, FC, ST Optional) |
Working Temperature: |
-40°C To 80°C |
Warranty: |
5 Years |

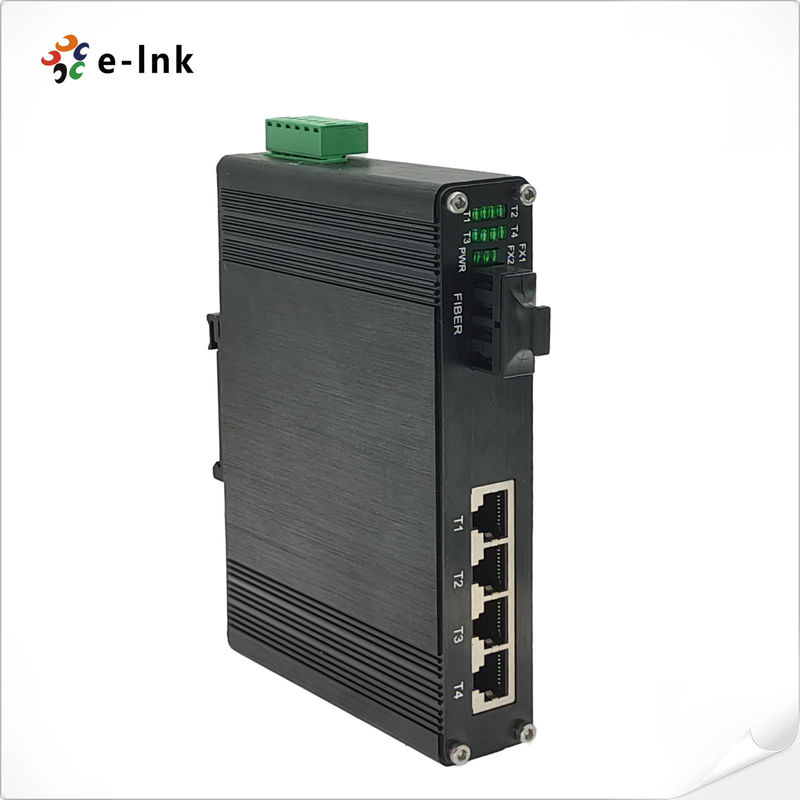

LNK-IMC104G is a 4 ports 10/100/1000Base-TX + 1 port 1000Base-FX Industrial Ethernet switch. The Switch has 4 TP ports and 1 fiber port. TP (RJ45) support 10/100/1000Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; 100Base-FX supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.
► 4 10/100/1000Base-TX + 1 1000Base-FX
► 10/100/1000Mbps RJ45 Port Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► Supports 802.3x Flow control
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► Redundant Power Inputs
► Supports Wall-mount and DIN-Rail installation
► -40°C to 80°C (-40°F to 176°F) operating temperature
| Ethernet | |
| Standards: | IEEE802.3 10BASE-T |
| IEEE802.3u 100BASE-TX/FX | |
| IEEE802.3ab 1000BASE-T | |
| IEEE802.3z 1000BASE-X | |
| IEEE802.3x Flow Control | |
| IEEE 802.3az Energy Efficient Ethernet (EEE) | |
| Forward & Filtering Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) | |
| 1,488,000pps (1000Mbps) | |
| Packet Buffer Memory: | 1M bits |
| Processing Type: | Store-and-Forward |
| Address Table Size: | 2048 MAC Addresses |
| Interface | |
| Connector: | 4 x RJ45 |
| Optical Port: | 1 x 1000Base-FX (SFP, SC, FC, ST Optional) |
| Environmental | |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Electrical and Mechanical | |
| Input Power: | 12~58VDC, Redundant Power (6-pin Terminal Block) |
| Power Consumption: | 5W Max. |
| Protection: | |
| Power Input Overload: | Automatic Resettable |
| Reverse Polarity: | Present |
| LED Indicators: | |
| Power: | Power1, Power2 Status |
| Ethernet (Per Port): | Link/Activity |
| Fiber Port: | FX1 |
| Dimensions (WxDxH): | 150 x 115 x 30 mm |
| Weight: | 0.5Kg |
| Casing: | Metal Case |
| Mounting Options: | DIN-Rail / Wall-mount |
| Regulatory Approvals | |
| ISO9001 | |
| EN55022:2010+AC: 2011, Class A | |
| EN 61000-3-2: 2006+A1: 2009+A2: 2009 | |
| EN 61000-3-3: 2013 | |
| EN55024:2010 | |
| IEC 61000-4-2: 2008 (ESD) | |
| IEC 61000-4-3: 2010 (RS) | |
| IEC 61000-4-4: 2012 (EFT) | |
| IEC 61000-4-5: 2014 (Surge) | |
| IEC 61000-4-6: 2013 (CS) | |
| IEC 61000-4-8: 2009 (PFMF) | |
We provide a range of technical support and services to help customers with their Industrial PoE Switch product. Our services include:
We also offer 24/7 live chat support and telephone support for customers who need additional assistance. Our team of experienced technicians can help you with any questions or problems you may have with your Industrial PoE Switch. For more information or to get started, please contact us.
Industrial Switch Packaging and Shipping:
In order to ensure the safe and fast delivery of products, we use high-quality packaging materials to securely package the products. The outer packaging aims to protect the product from impact and vibration during transportation.
We also use reliable transportation methods such as UPS, FedEx, or DHL to ensure that products are delivered to their destination on time. In addition, we also provide tracking information so that customers can track their orders in real-time.
| Model | Description |
| LNK-IMC104G | Industrial Ethernet Switch: 4-Port 10/100/1000Base-TX + 1-Port 1000Base-FX Fiber, Multimode, Dual Fiber, SC, 550m |
| LNK-IMC104G-20 | Industrial Ethernet Switch: 4-Port 10/100/1000Base-TX + 1-Port 1000Base-FX Fiber, Single Mode, Dual Fiber, SC, 20KM |
| LNK-IMC104GS-20 | Industrial Ethernet Switch: 4-Port 10/100/1000Base-TX + 1-Port 1000Base-FX Fiber, Single Mode, Single Fiber, SC, 20KM |
| LNK-IMC104GF-20 | Industrial Ethernet Switch: 4-Port 10/100/1000Base-TX + 1-Port 1000Base-FX Fiber, Single Mode, Single Fiber, FC, 20KM |
| LNK-IMC104G-SFP | Industrial 4-port 10/100/1000BASE-T + 1-port 1000BASE SFP Ethernet Switch |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► 24W/1A 24VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
