Product Details
Place of Origin: China
Brand Name: E-link
Certification: ISO9001, CE, RoHS, FCC
Model Number: ETH-IMC208M
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: Ethernet Switch Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000pcs/month
Key Word: |
Industrial Ethernet Switch |
Operating Temperature: |
-40°C To 80°C |
Input Power: |
12~48VDC |
Casing: |
Aluminum Case |
Mounting Options: |
DIN-Rail Mount |
Dimensions (WxDxH): |
149 X 114 X 50 Mm |
Key Word: |
Industrial Ethernet Switch |
Operating Temperature: |
-40°C To 80°C |
Input Power: |
12~48VDC |
Casing: |
Aluminum Case |
Mounting Options: |
DIN-Rail Mount |
Dimensions (WxDxH): |
149 X 114 X 50 Mm |

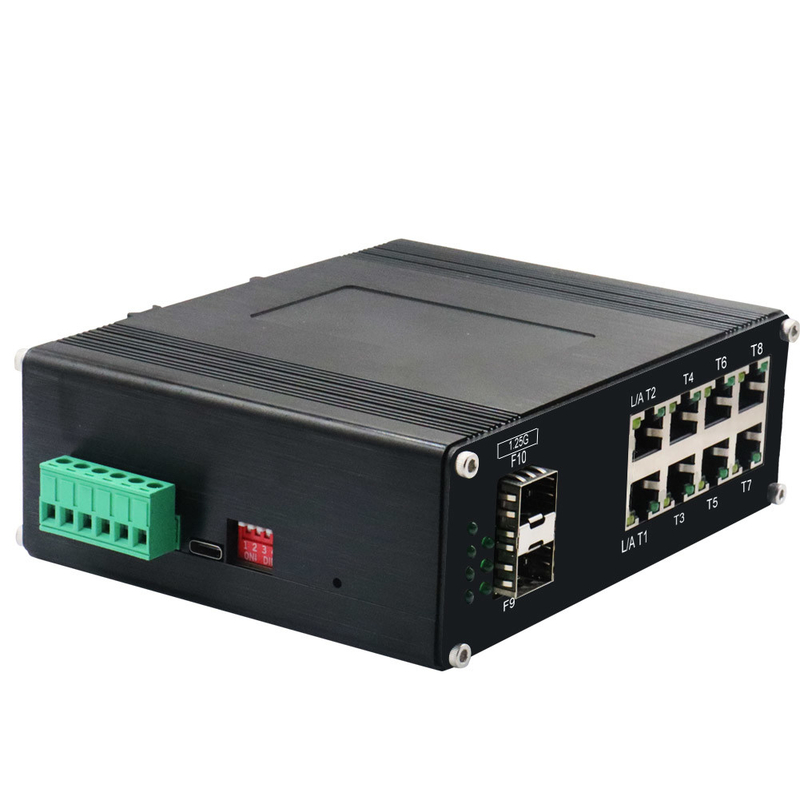

Industrial L2+ 8-Port 10/100/1000T + 2-Port 1000X SFP Managed Ethernet Switch
Advantages
► Support 8x10/100/1000Base-T + 2x1000Base-X SFP
► 10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► Support connecting USB-C port for easy management, without the need to access the RS232 serial port at all
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► IP40 Aluminum Case
Technical Indexes
| Interface | ||||
| Connector: | 8 x RJ45 | |||
| RS485: | 1 x RS485 (Optional) | |||
| Optical Port: | 2 x 1000Base-X SFP | |||
| USB-C: | 1 x USB-C (for Management) | |||
| RS485 Serial Interface (Optional) | ||||
| Physical interface | Industrial standard 3-pin screw terminal | |||
| Data type | 1Ch RS485 Bi-Direction | |||
| RS-485 signals | Data+, Data-, GND | |||
| Serial port line distance (copper) | 1000 meters | |||
| Baud rate | 0 ~ 800kbps | |||
| Electrical and Mechanical | ||||
| Input Power: | 12~48VDC, Redundant Power (6-pin Terminal Block) | |||
| Power Consumption: | 8W Max | |||
| Protection: | ||||
| Power Input Overload: | Automatic Resettable | |||
| Reverse Polarity: | Present | |||
Overview
ETH-IMC208M series is the L2+ managed 8-port 10/100/1000Base-T + 2-port 1000Base-X SFP hardened Ethernet switch.
The Switch has 8 TP ports and 2 fiber ports. The TP (RJ45) supports 10/100/1000Base-T(X), Full/Half duplex mode, and
auto MDI/MDI-X connection; the 1000Base-X SFP port supports 1 or 2 core Single-mode or Multi-mode fiber.
Ordering Information
| Model | Description |
| ETH-IMC208M | Industrial L2+ 8-Port 10/100/1000T + 2-Port 1000X SFP Managed Ethernet Switch |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page |
| ► SFP module is to be purchased separately. | |
| Mounting Options | ► Default DIN-Rail Bracket installed |
| Power Options | ► DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
