Mini Industrial Managed 5-Port Gigabit Ethernet Switch

Name: Mini Industrial Managed 5-Port Gigabit Ethernet Switch
Brand: E-link China Technology Co.,LTD
SKU: LNK-IMC005GM
Price: 188.90 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: CE, RoHS, FCC

Model Number: LNK-IMC005GM

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: negotiation

Packaging Details: Ethernet Switch Standard Export Package

Delivery Time: 5-12 working days

Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal

Supply Ability: 1000pcs/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    Mini Industrial Managed Ethernet Switch, 5-Port Industrial Managed Ethernet Switch, Gigabit Industrial Managed Ethernet Switch


Key Word:	Industrial Ethernet Switch	Dimensions (WxDxH):	95 X 70 X 29 Mm
Weight:	0.25KG	Casing:	Aluminum Case
Operating Temperature:	-40°C To 80°C	Mounting Options:	DIN-Rail / Wall-mount

Key Word:	Industrial Ethernet Switch
Dimensions (WxDxH):	95 X 70 X 29 Mm
Weight:	0.25KG
Casing:	Aluminum Case
Operating Temperature:	-40°C To 80°C
Mounting Options:	DIN-Rail / Wall-mount

Description

Mini Industrial Managed 5-Port Gigabit Ethernet Switch

Industrial PoE Switch Advantages

► 5-port 10/100/1000BASE-T RJ45 with auto-MDI/MDI-X function

► Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex

► 12~48V DC wide range power input

► Supports 802.3x Flow control

► Supports WEB Management

Technical Indexes

Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
WEB Management Features
System Settings	Device Info; Account Settings; Restoring; Reboot; Upgrade
Port Management	Port Settings; Port Mirroring; Port Statistics; Rate Limit
VLAN Settings	802.1Q VLAN; PVID Settings; Hybrid Port
QOS Settings	Priority Selection; Scheduling Mode
Loop Detection	Support
Saving Settings	Get Configuration; Restore Configuration; Saving Configuration
Default IP	192.168.40.253
Default User Name	admin
Default Password	admin

Overview

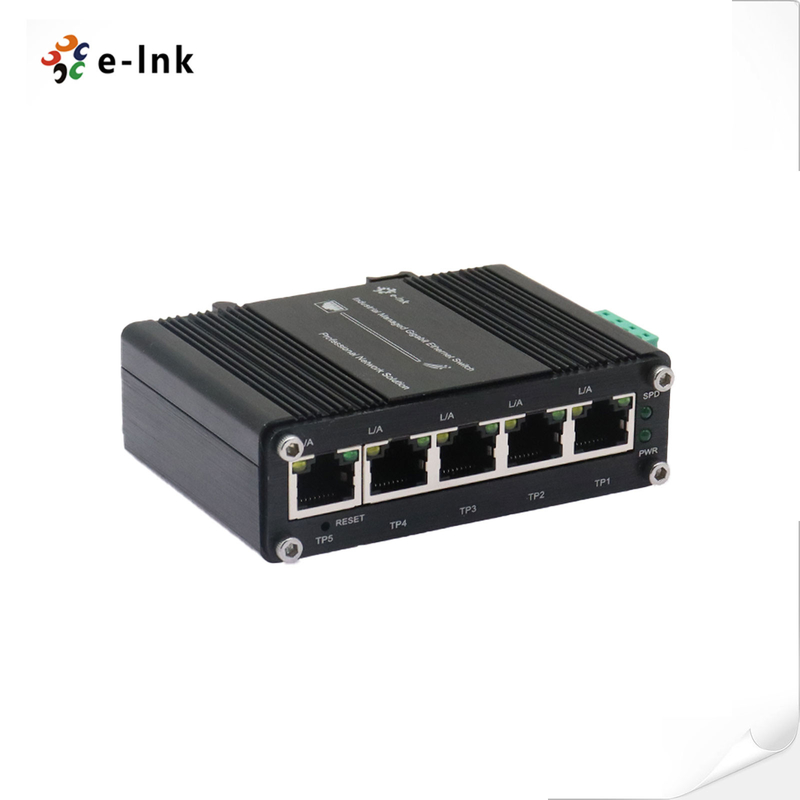

LNK-IMC005GM is a Mini Industrial Managed 5-Port 10/100/1000T Gigabit Ethernet Switch with 12~48V DC wide range power

input. This managed industrial Ethernet switch is designed to match the critical industrial standards. With reliable and simple

operation against vibration and shock, and wide operation temperature range, it could match a variety of harsh environment.

Mini Industrial Managed 5-Port Gigabit Ethernet Switch 0

Ordering Information

Model	Description
LNK-IMC005GM	Mini Industrial Managed 5-Port 10/100/1000T Gigabit Ethernet Switch
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► Power Supply is to be purchased separately ► Recommend MeanWell MDR-20-24
