Product Details
Place of Origin: China
Brand Name: E-link
Certification: ISO9001, CE, RoHS, FCC
Model Number: LNK-IMC208SG-SFP
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: Ethernet Switch Standard Export Package
Delivery Time: 3~5 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 5000pcs/month
Connector: |
8 X RJ45 |
Optical Port: |
2 X 100/1000Base-X SFP |
Input Power: |
12~48VDC |
Power Consumption: |
5W Max |
Mounting Options: |
DIN-Rail Mount |
Dimensions (WxDxH): |
95 X 63 X 46 Mm |
Connector: |
8 X RJ45 |
Optical Port: |
2 X 100/1000Base-X SFP |
Input Power: |
12~48VDC |
Power Consumption: |
5W Max |
Mounting Options: |
DIN-Rail Mount |
Dimensions (WxDxH): |
95 X 63 X 46 Mm |
Features:
► 8x10/100/1000Base-TX + 2x100/1000Base-X SFP
► 10/100/1000Mbps RJ45 Port Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► Supports WEB Management
► -40°C to 80°C (-40°F to 176°F) operating temperature.
Overview:

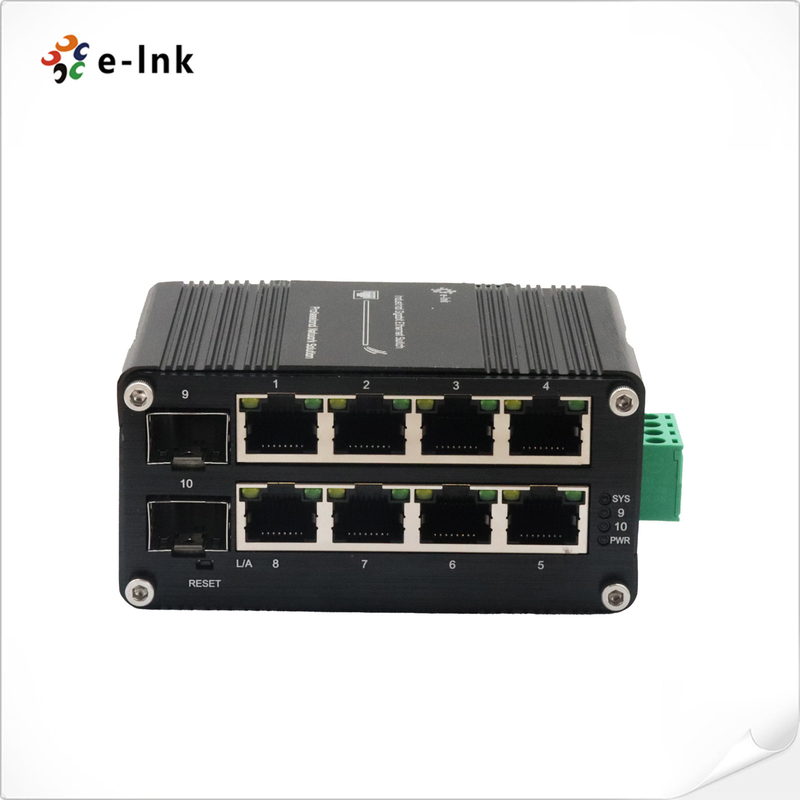

LNK-IMC208SG-SFP, managed industrial network switch, with 8 ports 10/100/1000Base-TX + 2 port 100/1000Base-X SFP. The switch provides 8 port RJ45 Ethernet ports. The 2-port 100/1000Base-X SFP supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.
Application:
