Mini Industrial 5-Port 101001000T Compact Ethernet Switch

Name: Mini Industrial 5-Port 101001000T Compact Ethernet Switch
Brand: E-link China Technology Co.,LTD
SKU: LNK-IMC005G
Price: 218.90 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ISO9001, CE, FCC, RoHS

Model Number: LNK-IMC005G

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: Negotiated

Packaging Details: Industrial PoE Switch standard export package

Delivery Time: 3-6working days

Payment Terms: T/T,PayPal

Supply Ability: 1000pcs/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Packet Buffer::	4 Mbits	Casing::	Aluminum Case
Packet Length::	9K Bytes	Mounting Options::	DIN-Rail / Wall-mount
Operating Temperature::	-40°C To 80°C (-40°F To 176°F)	Storage Temperature::	-40°C To 85°C (-40°F To 185°F)

Packet Buffer::	4 Mbits
Casing::	Aluminum Case
Packet Length::	9K Bytes
Mounting Options::	DIN-Rail / Wall-mount
Operating Temperature::	-40°C To 80°C (-40°F To 176°F)
Storage Temperature::	-40°C To 85°C (-40°F To 185°F)

Description

Mini Industrial 5-Port 101001000T Compact Ethernet Switch

Mini Industrial 5-Port Gigabit (PoE) Ethernet Switch

Mini Industrial 5-Port Gigabit Ethernet Switch Advantages

► 5-port 10/100/1000BASE-T RJ45 with auto-MDI/MDI-X function

► Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex

► 12~48VDC wide range power input

► Supports 802.3x Flow control

► PoE Optional

► Complies with IEEE 802.3az Energy Efficient Ethernet (EEE)

► Supports DIN-Rail and Wall-mount installation

► -40°C to 80°C (-40°F to 176°F) operating temperature

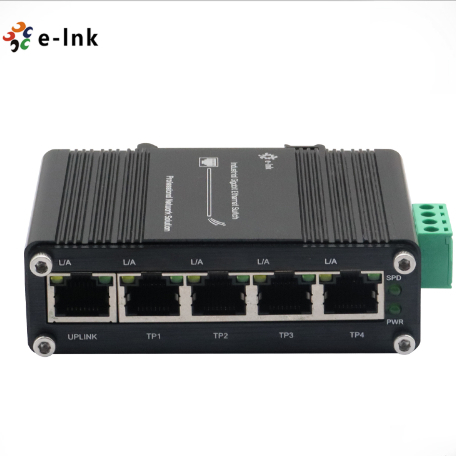

Mini Industrial 5-Port Gigabit Ethernet Switch Pictures

Mini Industrial 5-Port 101001000T Compact Ethernet Switch 0

Technical Indexes

Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Electrical and Mechanical
Input Power:	12~48VDC (Terminal Block)
Power Consumption:	<6W (PoE In Use: <125W)
Power Input Overload:	Automatic Resettable
Reverse Polarity:	Present
Dimensions (WxDxH):	95 x 70x 29mm
Weight:	0.25Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
LED Indicators:
PWR	Power
L/A	Link/Activity
SPD	Data Rate

Application

Mini Industrial 5-Port 101001000T Compact Ethernet Switch 1

Ordering Information

Model	Description
LNK-IMC005G	Mini Industrial 5-Port 10/100/1000T Gigabit Ethernet Switch
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► Power Supply is to be purchased separately
