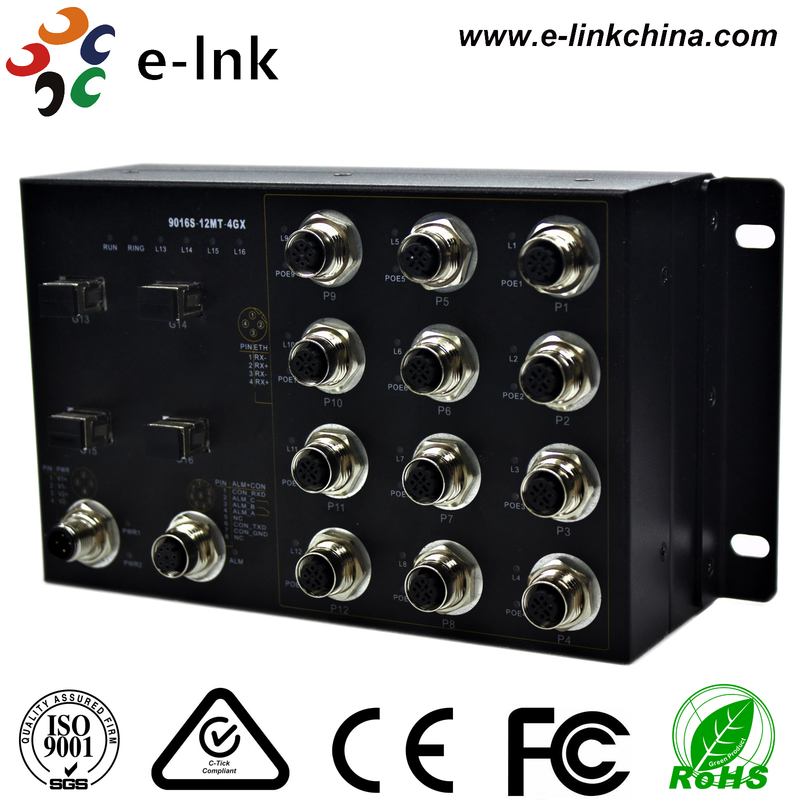

EN50155 Industrial Gigabit Managed Ethernet Switches

Name: EN50155 Industrial Gigabit Managed Ethernet Switches
Brand: E-link China Technology Co.,LTD
SKU: LNK-D3011
Price: 188.90 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: CE

Model Number: LNK-D3011

Document: LNK-9016 Series EN50155 Ind....0.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: negotiation

Packaging Details: Industrial PoE Switch Standard Carton Packaging

Delivery Time: 7-10 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability: 100000PCS/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Description

EN50155 Industrial Gigabit Managed Ethernet Switches

Product Advantages

· Support M12 interface form to ensure the sealing and firmness of the interface, Comply with EN50155 railway industry standard

· Optional support for IEEE802.3af/at standard, providing POE/POE+ power supply

· Up to 4 Gigabit uplink or Ethernet ports (support link aggregation + ABPASS )

· Up to 12 Mbps or Gigabit Ethernet interfaces (up to 12 ports POE +)

· Gigabit Fiber port: ODC IP67 connector

· Gigabit Ethernet port: 8- core M12 ( X code ) interface

· 100M Ethernet port: 4- core M12 ( D code ) interface

· One way relay alarm port, M12

Technical Indexes

Network Management Function	Port mirroring	Support port access direction, vlan mirroring
	Port speed limit	Support port speed limit
	Port isolation	Support port isolation settings
	Storm suppression	Support unknown unicast, unknown multicast, broadcast storm suppression
	Link aggregation	Support static manual aggregation Support LACP dynamic aggregation
	MAC	Support static addition, deletion Support MAC address learning limit Support dynamic aging time setting
	Spanning tree	Support for 802.1d (STP) Support for 802.1w (RSTP) Support for 802.1s (MSTP)
	Ring	Extremely distributed fiber optic ring network ABRing, self-healing time <5ms
	System Management	Support device reset, configuration save/restore, upgrade management, time setting, etc.
	Certification	Support for 802.1x port authentication (Radius, local) Support AAA certification
Interface	100M electric port	10/100BaseT(X) adaptive 4- core M12 ( D code ) interface
	Gigabit electrical port	10/100/1000BaseT(X) adaptive 8-core M12 (X code) interface
	Gigabit optical port	100Base-FX/1000Base-X ( 1*9 fixed ) LC interface
	Transmission distance	Multimode 2KM, 4KM Single mode 20～120KM
	Console port	RS232, M12 interface form
Power Supply	Input voltage	Dual redundant power supply, or 66VDC ~ 160VDC support 85-265VAC
	power	< 15 W ( no PD device )
	Overload protection	Support
	Reverse protection	Support
	Redundancy protection	Support
	Alarm port	1 way M12 interface form
Mechanical Structure	shell	Sheet metal
	Protection level	IP40
	Heat dissipation method	Naturally cooled, fanless design
	Dimension	230 mm1 32 mm 10 0mm (LW D )
	weight	Less than 2. 8 kg
	Installation method	Wall mounting method
Working Environment	Operating temperature	-40°C～+ 8 5°C
	Storage temperature	-40°C～ +8 5°C
	Relative humidity	0-95% without condensation
Warranty	MM BF	800,000h
Warranty	warranty period	5 years

Overview

E-link LNK-9016 serial switches are Layer 2 Gigabit Ethernet EN50155 industrial Ethernet switch which widely used in harsh environment. This series of switches support up 4 Gigabit uplink ports and Gigabit M12 and 100M M12 interfaces which can be used in scenes with strenuous vibration and shock,meeting the requirements of rail industry standards such as EN50155.

Application

EN50155 Industrial Gigabit Managed Ethernet Switches 0

Ordering Information

Model	specification
LNK-9016-2LD-8MT	8x10/100Base-T M12 ports
LNK-9016-2LD-8MT-2GX	8x10/100Base-T M12 ports + 2x1000Base-X LC fiber ports
LNK-9016-2LD-12MT-2GX	12x10/100Base-T M12 ports + 2x1000Base-X LC fiber ports
LNK-9016-2LD-8MT-4GX	8x10/100Base-T M12 ports + 4x1000Base-X LC fiber ports
LNK-9016-2LD-12MT-4GX	12x10/100Base-T M12 ports + 4x1000Base-X LC fiber ports
LNK-9016-2LD-12MT-4GT	12x10/100Base-T M12 ports + 4x10/100/1000Base-T M12 ports
LNK-9016-2LD-12GT-4GX	12x10/100/1000Base-T M12 ports + 4x1000Base-X LC fiber ports
LNK-9016-2LD-12GT-2GX	12x10/100/1000Base-T M12 ports + 2x1000Base-X LC fiber ports
LNK-9016S-2ND-8GT-2GX	8x10/100/1000Base-T M12 ports (4-port support POE+) + 2x1000Base-X LC fiber ports
LNK-9016S-2ND-12MT-2GX	12x10/100Base-T M12 ports (12-port support POE+) + 2x1000Base-X LC fiber ports
LNK-9016S-2ND-12MT-4GX	12x10/100Base-T M12 ports (12-port support POE+) + 4x1000Base-X LC fiber ports
LNK-9016S-2ND-12MT-4GT	12x10/100Base-T M12 ports (12-port support POE+) + 4x10/100/1000Base-T M12 ports
Code definition	Code option
PWR	2LD : DC dual power supply, power supply range: 12~36VDC 2ND : DC dual power supply, power supply range: 44VDC~57VDC 2HD : DC dual power supply, power supply range: 66VDC~160VDC HV : Single power AC and DC input, 85~264VAC , 120~370VDC
MT	10/100BASE-T adaptive electrical port
GT	10/100/1000BASE-T adaptive electrical port
GX	GSD13/20: Gigabit dual-fiber single-mode 1310nm 20KM LC/LC GSD13/40: Gigabit dual-fiber single-mode 1310nm 40KM LC/LC GSS35/20: Gigabit single-mode single fiber/SC Tx:1310 / Rx:1550nm 20KM SC GSS53/20: Gigabit single-mode single fiber/SC Tx:1550/Rx: 1310nm 20KM SC GSS35/40: Gigabit single-mode single fiber/SC Tx:1310/Rx:1550nm 40KM SC GSS53/40: Gigabit single-mode single fiber/SC Tx:1550 /Rx:1310nm 40KM SC
