Mini Industrial Managed 5-Port Gigabit Ethernet Switch

Name: Mini Industrial Managed 5-Port Gigabit Ethernet Switch
Brand: E-link China Technology Co.,LTD
SKU: LNK-IMC005GM
Price: 188.90 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ISO9001, CE, FCC, RoHS

Model Number: LNK-IMC005GM

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: Negotiated

Packaging Details: Industrial PoE Switch standard export package

Delivery Time: 3-6working days

Payment Terms: T/T,PayPal

Supply Ability: 1000pcs/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Power Over Ethernet:	IEEE 802.3af/at	Copper Ports:	4 Port 10/100T RJ45
Key Word:	Industrial PoE Switch	Data Transfer Rate:	10/100/1000Mbps
Din:	With DIN	Input Power:	Dual Power 48~52V DC

Power Over Ethernet:	IEEE 802.3af/at
Copper Ports:	4 Port 10/100T RJ45
Key Word:	Industrial PoE Switch
Data Transfer Rate:	10/100/1000Mbps
Din:	With DIN
Input Power:	Dual Power 48~52V DC

Description

Mini Industrial Managed 5-Port Gigabit Ethernet Switch

Mini Industrial 5-Port Gigabit (PoE) Ethernet Switch

Mini Industrial Managed 5-Port Gigabit Ethernet Switch Advantages

► 5-port 10/100/1000BASE-T RJ45 with auto-MDI/MDI-X function

► Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex

► 12~48V DC widane rge power input

► Supports WEB Management

► Supports DIN-Rail and Wall-mount installation

► Industry standard design, dustproof and close design IP40, rugged high-strength metal case

Overview

LNK-IMC005GM is a Mini Industrial Managed 5-Port 10/100/1000T Gigabit Ethernet Switch

with 12~48V DC wide range power input. This managed industrial Ethernet switch is

designed to match the critical industrial standards. With reliable and simple operation against

vibration and shock, and wide operation temperature range, it could match a variety of harsh

environment. The switch complies with CE and FCC standards, and passed the 100% burning

test to ensure that it will fulfill the needs of industrial applications. It is a good choice for an

economical solution for industrial Ethernet connections.

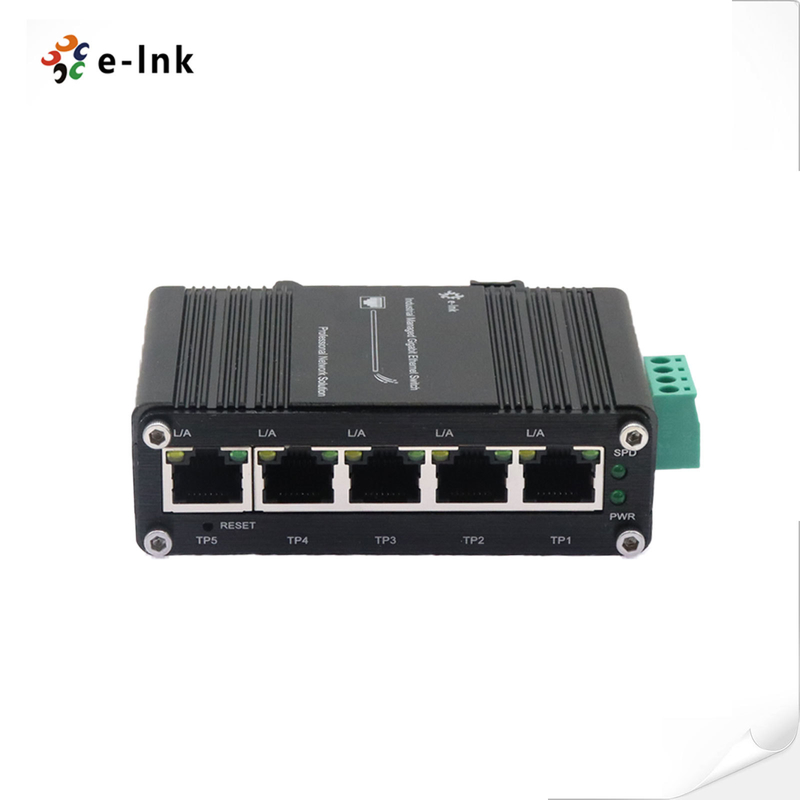

Mini Industrial 5-Port Gigabit Ethernet Switch Picture

Mini Industrial Managed 5-Port Gigabit Ethernet Switch 0

Technical Indexes

Ethernet
Standards:	IEEE 802.3 Ethernet
	IEEE 802.3u Fast Ethernet
	IEEE 802.3ab Gigabit Ethernet
	IEEE 802.3x Full-Duplex Flow Control
	IEEE 802.3az Energy Efficient Ethernet (EEE)
	IEEE 802.3af/at Optional
Forward & Filtering Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer:	1Mbits
Packet Length:	10Kbytes
MAC Address Table:	8K
Switch Fabric:	10Gbps/non-blocking
Exchange Property	Backplane bandwidth: 10Gbps; Packet forwarding rate: 14.88Mpps
Connector:	5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Electrical and Mechanical
Input Power:	12~48V DC (Terminal Block)
Power Consumption:	<6W
Power Input Overload:	Automatic Resettable
Reverse Polarity:	Present
Reset Button	Support
Dimensions (WxDxH):	95 x 70 x 29 mm
Weight:	0.25KG
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount

Application

Mini Industrial Managed 5-Port Gigabit Ethernet Switch 1

Ordering Information

Model	Description
LNK-IMC005GM	Mini Industrial Managed 5-Port 10/100/1000T Gigabit Ethernet Switch
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► Power Supply is to be purchased separately ► Recommend MeanWell MDR-20-24
