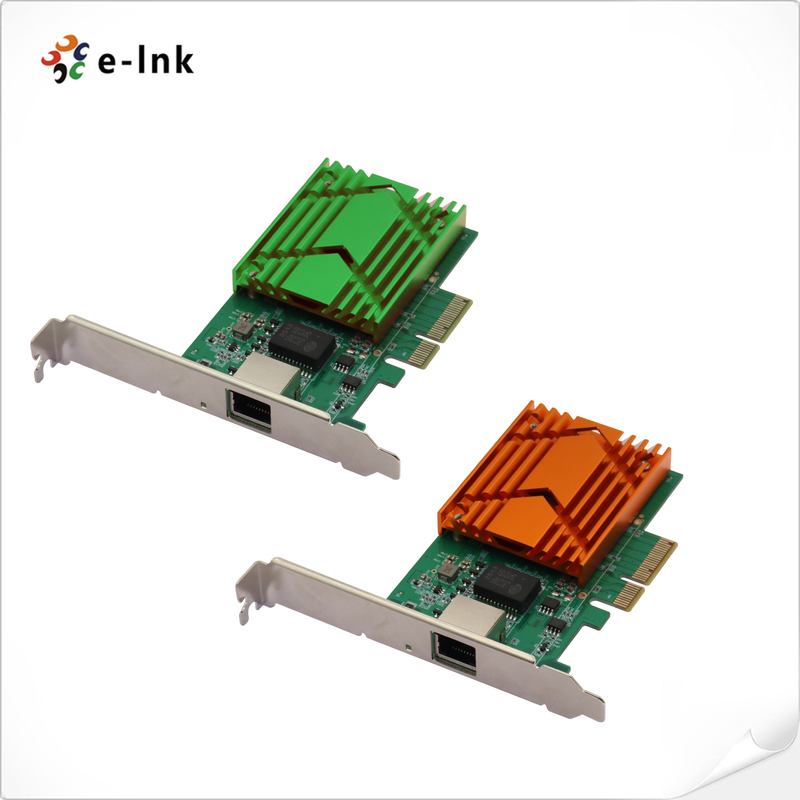

PCIe x4 Single-port RJ45 10G Ethernet Network Adapter

Transmission medium

Copper

Copper Type

10GBase-T:Cat 7 or higher up to 30m

5GBase-T:Cat 7 or higher up to 30m

2.5GBase-T:Cat 6A or higher up to 100m

1GBase-T:Cat 6 or higher up to 100m

100MBase-T:Cat 6 or higher up to 100m

Baffle Height

Half & Full height

Power Consumption

4.7W

OS Support

Windows 7/8/8.1/10

Windows Server 2008 R2/2012 R2/2016 R2/2019 R2

Linux Stable Kernel version 2.6.32/3.x/4.x or later

Linux CentOS/RHEL 6.5 / 7.x or later

Ubuntu 14.x/15.x/16.x or later

VMware ESX/ESXi 4.x/5.x/6.x or later

Bus Type

PCIe v3.0 x4,compatible with x8, x16

Data rate per port

10/100/1000M/2.5G/5G/10Gbps data rate

Connector

1*10G RJ45

Standards compliant

IEEE 802.3an 10 Gbit/s Ethernet over unshielded twisted pair

IEEE 802.3bz 2.5/5GBASE-T

IEEE 802.3ab 1000BASE-T Gigabit Ethernet

IEEE 802.3u 100BASE-TX Fast Ethernet

IEEE 802.1Q VLANs

IEEE 802.3x Full Duplex and flow contro

IEEE 802.3az -

Energy Efficient Ethernet (EEE)

iSCSI

No

WoL

No

Jumbo Frames

Yes

DPDK

Yes

PXE

Yes

FCoE

No

Operating Temperature

0℃ to 55℃ (32℉ to 131℉)

Storage Temperature

-40℃ to 70℃ (-40℉ to 158℉)

Storage Humidity

Maximum: 90% non-condensing relative humidity at 35℃

Size

125 x 125 x 20 mm

Weight

90g

LED indication

Power: Light on when power on;

LNK/ACT: Light on when connected, light blinks when transfer data.

Model

Description

LNK-NIC-10GE

PCIE x4 Single-port RJ45 10G Ethernet Network Adapter
