Unmanaged Industrial 8-port 10/100BASE-T Ethernet Switch

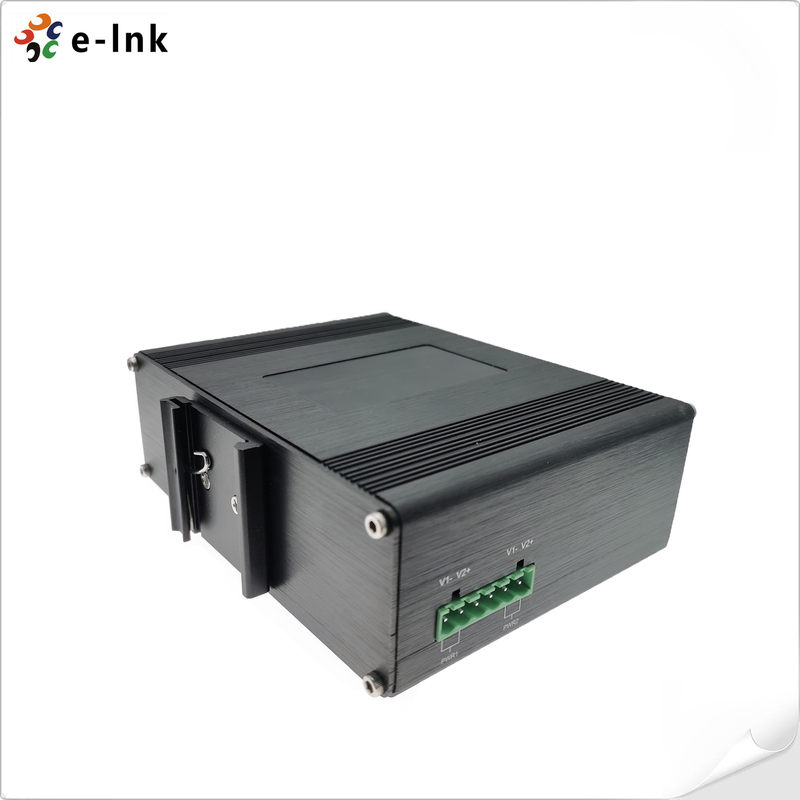

Name: Unmanaged Industrial 8-port 10/100BASE-T Ethernet Switch
Brand: E-link China Technology Co.,LTD
SKU: LNK-IMC008
Price: 188.90 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ISO9001

Model Number: LNK-IMC008

Document: E-link LNK-IMC008 Industria....0.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiation

Packaging Details: Carton Packaging

Delivery Time: 3-12 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,Paypal

Supply Ability: 1000 pcs/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Mounting Options:	DIN-Rail / Wall-mount	Dimensions (WxDxH):	150 X 115 X 50 Mm
Operating Temperature:	-40°C To 80°C (-40°F To 176°F)	Storage Temperature:	-40°C To 85°C (-40°F To 185°F)
Input Power:	12~58VDC, Redundant Power (6-pin Terminal Block)	Power Consumption:	5W Max.
Casing:	Aluminum Case

Mounting Options:	DIN-Rail / Wall-mount
Dimensions (WxDxH):	150 X 115 X 50 Mm
Operating Temperature:	-40°C To 80°C (-40°F To 176°F)
Storage Temperature:	-40°C To 85°C (-40°F To 185°F)
Input Power:	12~58VDC, Redundant Power (6-pin Terminal Block)
Power Consumption:	5W Max.
Casing:	Aluminum Case

Description

Unmanaged Industrial 8-port 10/100BASE-T Ethernet Switch

Advantages

►8 10/100Base-TX ports
►RJ45 Port Supports 10/100Mbps-Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
►Supports 802.3x Flow control
►IEEE 802.3az Energy Efficient Ethernet (EEE)
►Supports DIN-Rail and Wall-mount installation
►Redundant 12～58VDC Power Inputs
►Industry standard design, dustproof and close design IP40, rugged high-strength metal case
►-40°C to 80°C (-40°F to 176°F) operating temperature

Overview

LNK-IMC008 is an 8 ports 10/100Base-TX Hardened Ethernet Switch. This unmanaged industrial Ethernet switch is designed to match the critical industrial standards. With reliable and simple operation against vibration and shock, and wide operation temperature range, it could match a variety of harsh environment.

The switch complies with CE and FCC standards, and passed the 100% burning test to ensure that it will fulfill the needs of industrial applications. It is a good choice for an economical solution for industrial Ethernet connections.


Unmanaged Industrial 8-port 10/100BASE-T Ethernet Switch 0

Application

Unmanaged Industrial 8-port 10/100BASE-T Ethernet Switch 1

Ordering Information

Model	Description
LNK-IMC008	Industrial 8-port 10/100BASE-T Ethernet Switch
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 24W/1A 24VDC DIN-Rail Power Supply. Open Wire for Terminal Block.
Power Options	► Power Supply is to be purchased separately.
