Industrial L2 Managed Ethernet Switch DIN-Rail Mount IP40 Aluminum Case

Name: Industrial L2 Managed Ethernet Switch DIN-Rail Mount IP40 Aluminum Case
Brand: E-link China Technology Co.,LTD
SKU: ETH-IMC2408M
Price: 359.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-Link

Certification: ISO9001，ROHS，FCC，CE

Model Number: ETH-IMC2408M

Document: ETH-IMC2408M Industrial Man....0.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: US$349~US$369/Pcs

Packaging Details: Ethernet Switch standard export package

Delivery Time: 3-5 Working Days

Payment Terms: T/T,Western Union,MoneyGram

Supply Ability: 4000 Pcs/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              Managed Industrial Ethernet Switch, 10G Port Industrial Ethernet Switch, 8 Port Industrial Ethernet Switch


Input Power:	12~48V DC, Redundant Power (6-pin Terminal Block)	Weight:	0.55Kg
Operating Temperature:	-40°C To 80°C (-40°F To 176°F)	Casing:	Aluminum Case
MTBF:	> 200,000 Hrs	Packet Buffer MemoryOptical PortPacket Buffer Memory:	12M Bits
Optical Port:	4 X 1000Base-X SFP 2 X 10G Base-SR/LR SFP+	USB-C:	1 X USB-C (for Management)

Input Power:	12~48V DC, Redundant Power (6-pin Terminal Block)
Weight:	0.55Kg
Operating Temperature:	-40°C To 80°C (-40°F To 176°F)
Casing:	Aluminum Case
MTBF:	> 200,000 Hrs
Packet Buffer MemoryOptical PortPacket Buffer Memory:	12M Bits
Optical Port:	4 X 1000Base-X SFP 2 X 10G Base-SR/LR SFP+
USB-C:	1 X USB-C (for Management)

Description

Industrial L2 Managed Ethernet Switch DIN-Rail Mount IP40 Aluminum Case

Industrial L2 Managed Ethernet Switch DIN-Rail Mount IP40 Aluminum Case

Industrial L2 Managed Ethernet Switch DIN-Rail Mount IP40 Aluminum Case Features

► Support 8x10/100/1000Base-T + 4x1000Base-X SFP + 2x 10GBase-SR/LR SFP

► 10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX

► Support connecting USB-C port for easy management, without the need to access the RS232 serial port at all

► 9K Bytes Jumbo Frame

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► IP40 Aluminum Case

► Supports DIN-Rail installation

► -40°C to 80°C (-40°F to 176°F) operating temperature

Industrial L2 Managed Ethernet Switch DIN-Rail Mount IP40 Aluminum Case Overview

ETH-IMC2408M Series is the managed 8-port 10/100/1000Base-T + 4-port 1000Base-X SFP + 2-port 10G Base-SR/LR SFP+ hardened Ethernet switch. The Switch has 8 TP ports and 6 fiber ports. TP (RJ45) supports 10/100/1000Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; the 1000Base-X SFP and 10G SFP+ support 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.

Industrial L2 Managed Ethernet Switch DIN-Rail Mount IP40 Aluminum Case Technical Indexes

RS485 Serial Interface (Optional)
Physical interface	Industrial standard 3-pin screw terminal
Data type	1Ch RS485 Bi-Direction
RS-485 signals	Data+, Data-, GND
Serial port line distance (copper)	1000 meters
Baud rate	0 ~ 800kbps
Electrical and Mechanical
Input Power:	12~48VDC, Redundant Power (6-pin Terminal Block)
Power Consumption:	8W Max.(PoE in Use<240W)
Protection:
Power Input Overload:	Automatic Resettable
Reverse Polarity:	Present
DIP Switch
4-digit DIP switch function	DIP	Function	Settings
	SW 1	VLAN	ON - Enabled	OFF - Disabled
	SW 2	Ring Management	ON - Enabled	OFF - Disabled
	SW 3	Reserved	ON - Reserved	OFF - Reserved
	SW 4	Reserved	ON - Reserved	OFF - Reserved
LED Indicators:
PWR:	Power Status
Ethernet (Per Port):	Link/Activity
Fiber:	Gigabit SFP Port: F9~F12
	10G SFP+ Port: F13, F14
Dimensions (WxDxH):	149 x 114 x 50 mm
Mounting Options:	DIN-Rail mount

Industrial L2 Managed Ethernet Switch DIN-Rail Mount IP40 Aluminum Case Ordering Information

Model	Description
ETH-IMC2408M	Industrial L2+ 8-Port 10/100/1000T + 4-Port 1G SFP + 2-Port 10G SFP+ Managed Ethernet Switch
SFP Options	► SFP option. Please select your SFP on our SFP Options Page
SFP Options	► SFP module is to be purchased separately.
Mounting Options	► Default DIN-Rail Bracket installed
Power Options	► DIN-Rail Power Supply. Open Wire for Terminal Block.
Power Options	► Power Supply is to be purchased separately.

Industrial L2 Managed Ethernet Switch DIN-Rail Mount IP40 Aluminum Case Application Picture

Industrial L2 Managed Ethernet Switch DIN-Rail Mount IP40 Aluminum Case 1

Industrial L2 Managed Ethernet Switch DIN-Rail Mount IP40 Aluminum Case Pictures

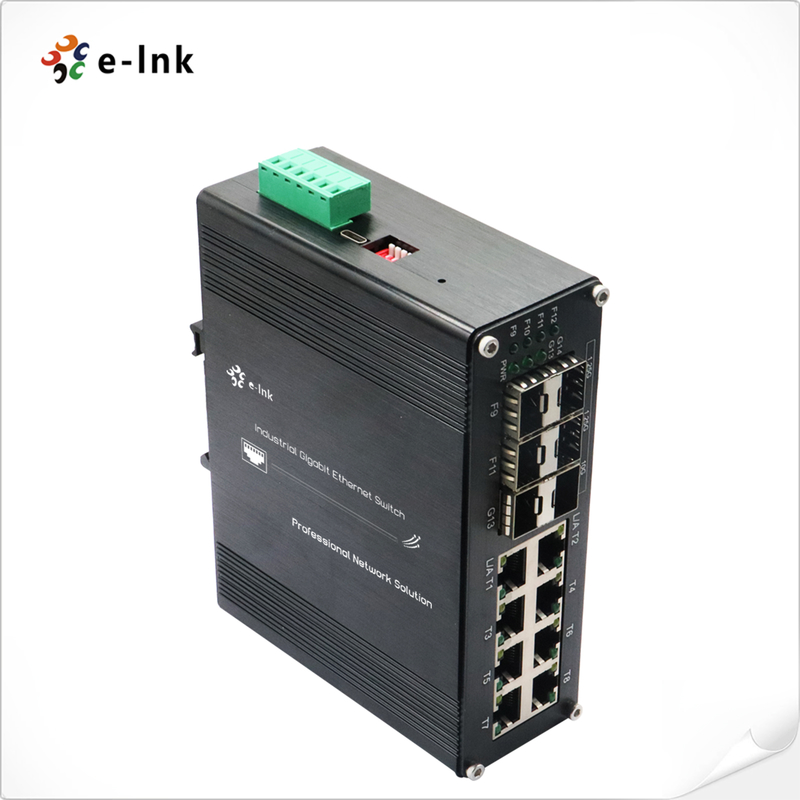

Industrial L2 Managed Ethernet Switch DIN-Rail Mount IP40 Aluminum Case 2

Industrial L2 Managed Ethernet Switch DIN-Rail Mount IP40 Aluminum Case 3

Industrial L2 Managed Ethernet Switch DIN-Rail Mount IP40 Aluminum Case 4

Industrial L2 Managed Ethernet Switch DIN-Rail Mount IP40 Aluminum Case 5
