Unmanaged Industrial 8-port 10/100/1000BASE-T Ethernet Switch

Name: Unmanaged Industrial 8-port 10/100/1000BASE-T Ethernet Switch
Brand: E-link China Technology Co.,LTD
SKU: LNK-IMC008G
Price: 188.90 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: CE, RoHS, FCC

Model Number: LNK-IMC008G

Payment & Shipping Terms

Minimum Order Quantity: 1pc

Price: negotiation

Packaging Details: Ethernet Switch Standard Export Package

Delivery Time: 5-12 working days

Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal

Supply Ability: 1000pcs/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Key Word:	Industrial Ethernet Switch	Mounting Options:	DIN-Rail / Wall-mount
Connector:	8 X RJ45	Dimensions (WxDxH):	150 X 115 X 50 Mm
Input Power:	12~58VDC	Operating Temperature:	-40°C To 80°C

Key Word:	Industrial Ethernet Switch
Mounting Options:	DIN-Rail / Wall-mount
Connector:	8 X RJ45
Dimensions (WxDxH):	150 X 115 X 50 Mm
Input Power:	12~58VDC
Operating Temperature:	-40°C To 80°C

Description

Unmanaged Industrial 8-port 10/100/1000BASE-T Ethernet Switch

Unmanaged Industrial 8-port 10/100/1000BASE-T Ethernet Switch

Advantages

► RJ45 Port Supports 10/100/1000Mbps-Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX

► Supports 802.3x Flow control

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► Supports DIN-Rail and Wall-mount installation

► Redundant 12～48VDC Power Inputs

► Industry standard design, dustproof and close design IP40, rugged high-strength metal case

Technical Indexes

Ethernet
Standards:	IEEE802.3 10BASE-T
	IEEE802.3u 100BASE-TX
	IEEE802.3ab 1000BASE-T
	IEEE 802.3az Energy Efficient Ethernet (EEE)
	IEEE802.3z 1000BASE-X
Forward & Filtering Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer Memory:	2M bits
Switch Fabric:	16 Gbps
Max Packet Length:	10K Bytes
Address Table Size:	16K MAC Addresses
Interface
Connector:	8 x RJ45
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Electrical and Mechanical
Input Power:	12~48VDC, Redundant Power (6-pin Terminal Block)
Power Consumption:	5W Max.
Protection:
Power Input Overload:	Automatic Resettable
Reverse Polarity:	Present

Overview

LNK-IMC008G is an 8 ports 10/100/1000Base-TX Hardened Ethernet Switch. This unmanaged industrial

Ethernet switch is designed to match the critical industrial standards. With reliable and simple operation

against vibration and shock, and wide operation temperature range, it could match a variety of harsh

environment.

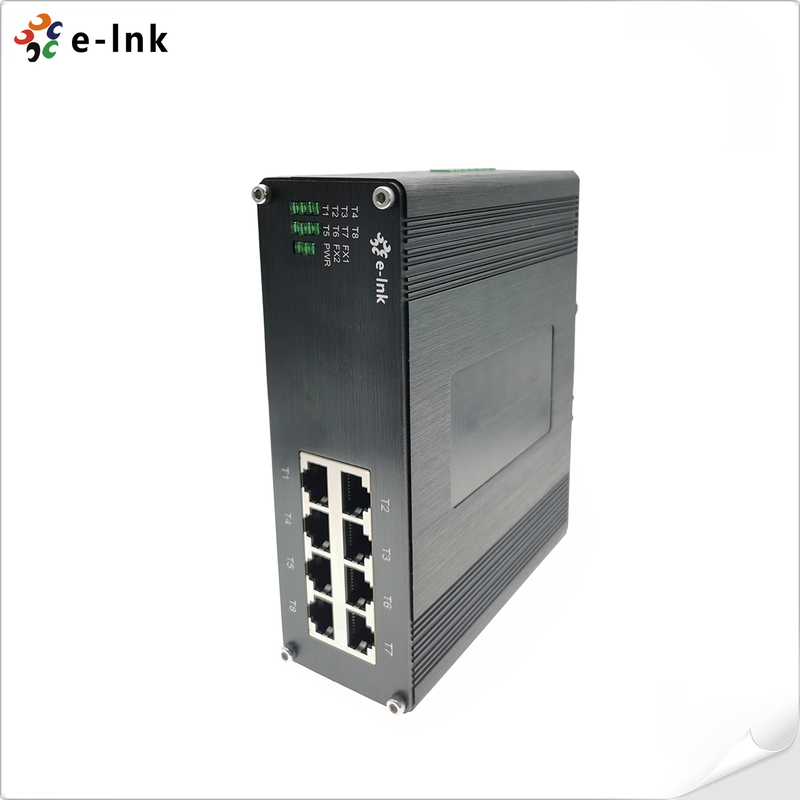

Unmanaged Industrial 8-port 10/100/1000BASE-T Ethernet Switch 0

Ordering Information

Model	Description
LNK-IMC008	Industrial 8-port 10/100BASE-T Ethernet Switch
LNK-IMC008G	Industrial 8-port 10/100/1000BASE-T Ethernet Switch
LNK-IMC008GP	Industrial 8-port 10/100/1000BASE-T (8-port PoE+) Ethernet Switch
LNK-IMC008P	Industrial 8-port 10/100BASE-T (8-port PoE+) Ethernet Switch
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 24W/1A 24VDC DIN-Rail Power Supply. Open Wire for Terminal Block.
Power Options	► Power Supply is to be purchased separately.
