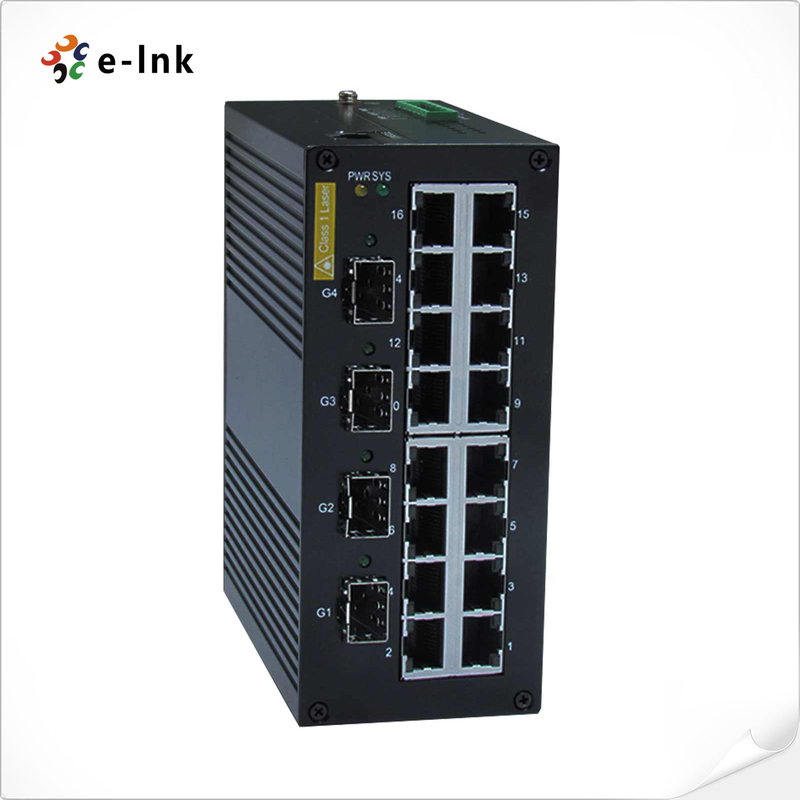

Managed Industrial Ethernet Switch: 16 x 10/100BASETX + 4 x 1000BaseX SFP

Name: Managed Industrial Ethernet Switch: 16 x 10/100BASETX + 4 x 1000BaseX SFP
Brand: E-link China Technology Co.,LTD
SKU: LNK-GYM416G
Price: 208.90 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: CE, FCC, RoHS

Model Number: LNK-GYM416G

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: $19.9-399

Packaging Details: standard export package

Delivery Time: 5-12working days

Payment Terms: T/T,PayPal

Supply Ability: 1000pcs/mouth

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                  16 100BASETX SFP Switch, Managed Industrial Ethernet Switch


Warranty:	5 Years	Operating Temperature::	-40 To +80°C (-40 To 180°F )
Dimensions:	60 X 112 X 138.5 Mm	Weight:	760g
Installation:	DIN-Rail Mounting, Wall Mounting

Warranty:	5 Years
Operating Temperature::	-40 To +80°C (-40 To 180°F )
Dimensions:	60 X 112 X 138.5 Mm
Weight:	760g
Installation:	DIN-Rail Mounting, Wall Mounting

Description

Managed Industrial Ethernet Switch: 16 x 10/100BASETX + 4 x 1000BaseX SFP

Managed Industrial Ethernet Switch Advantage

► IEEE802.3,IEEE802.3u,IEEE802.3ab,IEEE802.3x,IEEE802.3af standard

► 4 Gigabit ports for building dual Gigabit redundant rings

► Proprietary Protocol "Fi Ring" (recovery time <20ms) and RSTP/STP for network redundancy

► SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network

► Easy network management through web browser, CLI, Telnet /serial console, Windows utility, SNMP

► Industrial-grade design with -40 to +80℃ operating temperature and redundant power inputs

Managed Industrial Ethernet Switch Overview

The LNK-GYM416G series are designed to meet the demands of power substation automation systems

(IEC 61850-3, IEEE 1613). 4 Gigabit Ethernet ports are ideal for building dual Gigabit redundant ring.

The "Fi Ring" redundant Ring (recovery time < 20ms), RSTP and STP can increase system reliability

and your network availability.

Managed Industrial Ethernet Switch Technical Indexes

Model	16x10/100BaseTX ports+4x1000BaseX (SFP slots)
Benefits	Command Line Interface (CLI) for quickly configuration major managed functions
	FMC Ring Protocol "Fi Ring" (recovery time < 20ms) and RSTP/STP for network redundancy
	IGMP snooping for filtering multicast traffic
	Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
	Support port mirroring
	Support Access Control List (ACL)
	Storm control for any combination of multicast, broadcast and DLF traffic control
	Rich QoS features for data traffic control and management
	Port Trunk for optimum bandwidth utilization
	SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security
	SNMPv1/v2c/v3 for different levels of network management
	RMON for efficient network monitoring and proactive capability
	Bandwidth management prevents unpredictable network status
	Lock port function for blocking unauthorized access based on MAC address
	Automatic alarm through e-mail, relay output
	Works with NMS FiVision (industrial network management software) for traffic monitoring and easy network troubleshooting
