Industrial 8-port Ethernet Switch IP40 Unmanaged Redundant 12～58VDC Power Inputs

Name: Industrial 8-port Ethernet Switch IP40 Unmanaged Redundant 12～58VDC Power Inputs
Brand: E-link China Technology Co.,LTD
SKU: LNK-IMC008
Price: 62.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-Link

Certification: ISO9001，ROHS，FCC，CE

Model Number: LNK-IMC008

Document: E-link LNK-IMC008 Industria....0.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: US$55~US$70 / Pcs

Packaging Details: Industrial Ethernet Switch standard export package

Delivery Time: 3-5 Working Days

Payment Terms: T/T,Western Union,MoneyGram

Supply Ability: 4000 Pcs/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      Industrial 8-port 10/100BASE-T Ethernet Switch, 8-port Unmanaged Industrial Ethernet Switch


Dimensions (WxDxH):	150 X 115 X 50 Mm	Weight:	0.6Kg
Operating Temperature:	-40°C To 80°C (-40°F To 176°F)	Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount	Input Power:	12~58VDC, Redundant Power (6-pin Terminal Block)

Dimensions (WxDxH):	150 X 115 X 50 Mm
Weight:	0.6Kg
Operating Temperature:	-40°C To 80°C (-40°F To 176°F)
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
Input Power:	12~58VDC, Redundant Power (6-pin Terminal Block)

Description

Industrial 8-port Ethernet Switch IP40 Unmanaged Redundant 12～58VDC Power Inputs

Features

► 8 10/100Base-TX ports

► RJ45 Port Supports 10/100Mbps-Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX

► Supports 802.3x Flow control

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► Supports DIN-Rail and Wall-mount installation

► Redundant 12～58VDC Power Inputs

► Industry standard design, dustproof and close design IP40, rugged high-strength metal case

► -40°C to 80°C (-40°F to 176°F) operating temperature

Overview

LNK-IMC008 is an 8 ports 10/100Base-TX Hardened Ethernet Switch. This unmanaged industrial Ethernet switch is designed to match the critical industrial standards. With reliable and simple operation against vibration and shock, and wide operation temperature range, it could match a variety of harsh environment.

The switch complies with CE and FCC standards, and passed the 100% burning test to ensure that it will fulfill the needs of industrial applications. It is a good choice for an economical solution for industrial Ethernet connections.

Technical Indexes

Ethernet
Standards:	IEEE802.3 10BASE-T
	IEEE802.3u 100BASE-TX
	IEEE 802.3az Energy Efficient Ethernet (EEE)
	IEEE802.3x Flow Control
Forward & Filtering Rate:	14,880pps (10Mbps)
Forward & Filtering Rate:	148,800pps (100Mbps)
Cabling	10Base-T: Cat5 or above
Cabling	100Base-TX: Cat5 or above
Maximum Distance	Cat5 UTP up to 100m
Interface
Connector:	8 x RJ45
Electrical and Mechanical
Input Power:	12~58VDC, Redundant Power (6-pin Terminal Block)
Power Consumption:	5W Max.
Protection:
Power Input Overload:	Automatic Resettable
Reverse Polarity:	Present
LED Indicators:
Power:	Power1, Power2 Status
Ethernet (Per Port):	Link/Activity

Ordering Information

Model	Description
LNK-IMC008	Industrial 8-port 10/100BASE-T Ethernet Switch
Mounting Options	Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	24W/1A 24VDC DIN-Rail Power Supply. Open Wire for Terminal Block.
Power Options	Power Supply is to be purchased separately.

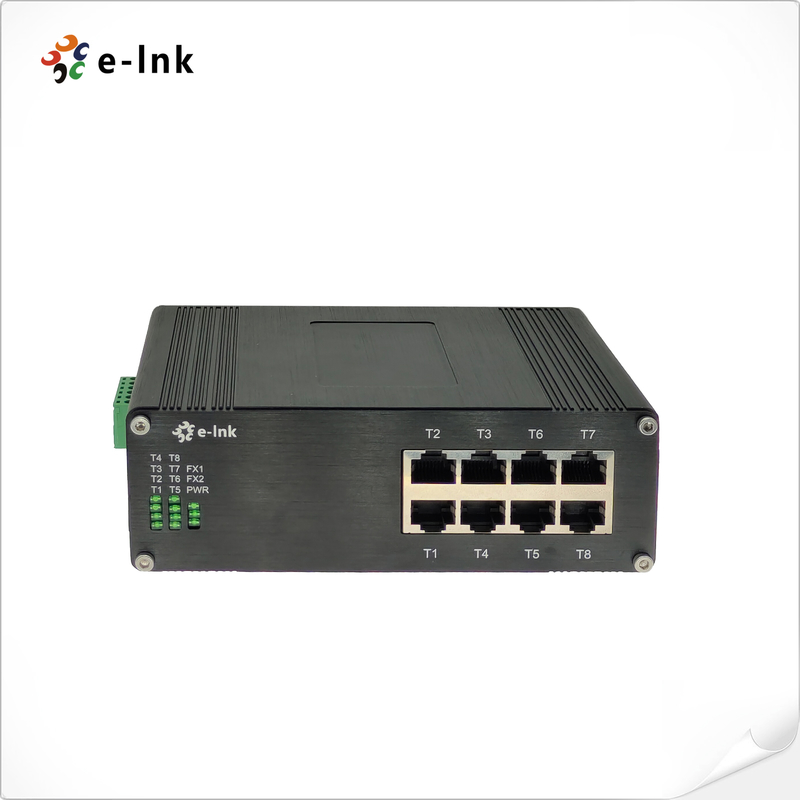

Industrial 8-port Ethernet Switch IP40 Unmanaged Redundant 12～58VDC Power Inputs 0

Industrial 8-port Ethernet Switch IP40 Unmanaged Redundant 12～58VDC Power Inputs 1

Industrial 8-port Ethernet Switch IP40 Unmanaged Redundant 12～58VDC Power Inputs 2
