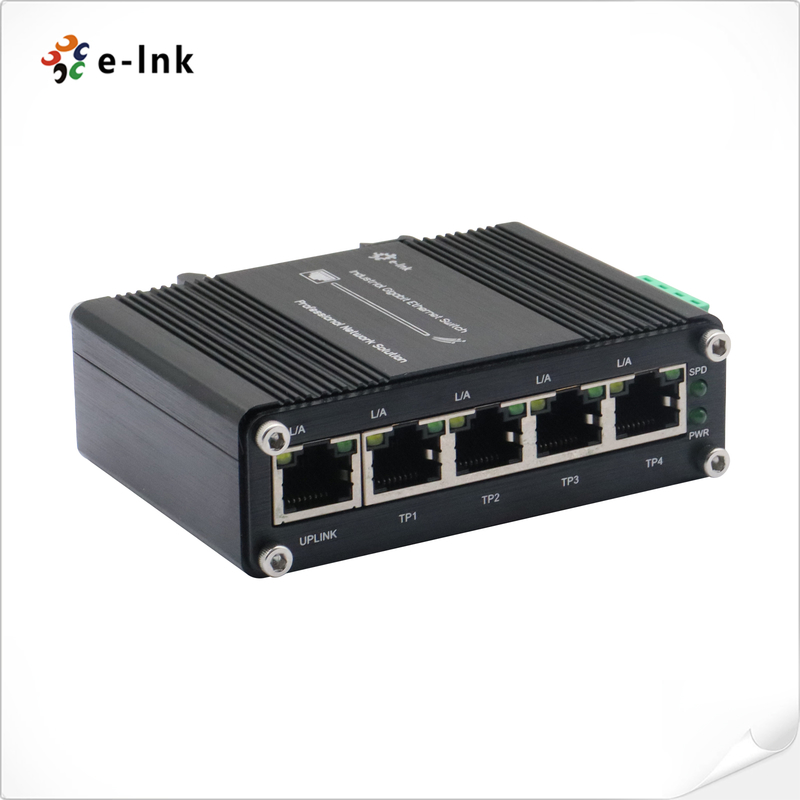

Mini Industrial Gigabit Ethernet Switch 5-Port 1000M 12-48VDC PoE Optional

Mini Industrial Gigabit Ethernet Switch 5-Port 10/100/1000M

12-48VDC PoE Optional

Product Overview:

The LNK-IMC005G Series is a compact industrial-grade Gigabit Ethernet switch engineered for robust performance in demanding environments. Featuring five auto-negotiation 10/100/1000BASE-T copper ports, it enables seamless network integration and high-speed data transmission. With wide-range 12~48VDC power input compatibility, this switch ensures stable operation in solar-powered systems, renewable energy applications, and mobile deployments with fluctuating power sources.

Built to industrial durability standards, this hardened switch operates reliably across an extended temperature range and features a rugged metal enclosure that withstands vibration, shock, and harsh environmental conditions. Compliant with CE and FCC standards, it undergoes rigorous 100% burn-in testing to guarantee reliability in critical applications including industrial automation, intelligent transportation systems, and outdoor surveillance networks.

This unmanaged switch offers plug-and-play operation with DIN-rail mounting capability, making it ideal for space-constrained applications. Its cost-effective design provides an economical solution for industrial Ethernet connections while maintaining industrial-grade performance and reliability in demanding operational environments.

Features Description:

• Five Gigabit Ethernet Ports with Auto-Sensing: Five 10/100/1000BASE-T RJ45 interfaces feature auto MDI/MDI-X detection, enabling plug-and-play deployment without manual cable configuration in mixed-speed networks

• Adaptive Speed and Duplex Negotiation: Automatically configures 10/100Mbps half/full duplex and 1000Mbps full duplex operation for optimal bandwidth utilization

• Wide Voltage Input Compatibility (12-48VDC): Accepts broad spectrum DC power input, ensuring stable operation in solar-powered systems, vehicular applications, and unstable power environments

• Advanced Flow Control Support: Implements 802.3x flow control mechanism to prevent data packet loss and optimize network traffic management

• Flexible PoE Compatibility: Optional PoE functionality available for powering network devices such as IP cameras and wireless access points

• Energy Efficient Ethernet Compliance: Reduces power consumption by up to 80% during low-data periods while maintaining IEEE 802.3az EEE standards

• Dual Mounting Flexibility: Supports both DIN-rail and wall-mount installation for versatile deployment in control cabinets and space-constrained industrial settings

• Industrial-Grade IP40 Protection: Features dustproof, rugged high-strength metal casing with EMI shielding and enhanced durability for harsh environments

• Extended Temperature Resilience: Operates reliably in extreme conditions from -40°C to 80°C (-40°F to 176°F), suitable for outdoor and unregulated environments

Application Scenarios

• Industrial Automation and Control Systems: Provides reliable connectivity for PLCs, HMIs, motor drives, and industrial IoT devices in manufacturing facilities with real-time data transmission requirements

• IP Surveillance and Security Networks: Supports IP cameras, access control systems, and NVRs with optional PoE functionality for comprehensive security solutions

• Intelligent Transportation Systems (ITS): Enables traffic monitoring, vehicle detection, and roadside communication networks in wide-temperature environments (-40°C to 80°C)

• Outdoor Wireless Deployments: Facilitates WLAN access points, 4G/5G small cells, and wireless bridges with reliable connectivity in harsh weather conditions

• Power Utility and Energy Infrastructure: Suitable for substation automation, grid monitoring, and renewable energy systems requiring wide voltage input (12-48VDC) operation

• Building Automation Systems: Supports network integration for environmental controls, smart lighting, and building management applications with flexible port configuration

• Industrial IoT and Edge Computing: Provides connectivity for sensors, controllers, and edge devices in smart factory and Industry 4.0 applications

• Transportation and Mobile Applications: Enables network connectivity in rolling stock, traffic management systems, and mobile deployments with stable operation under power fluctuations

Technical Indexes

Ordering information

Application Display Diagram
