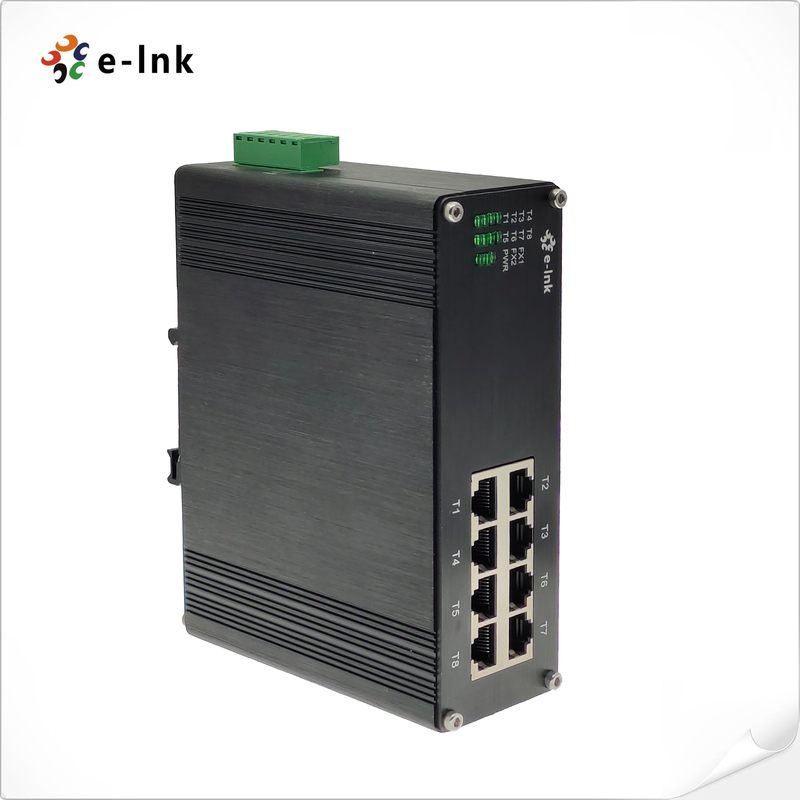

Industrial Gigabit Ethernet Switch 8-Port 10/100/1000M Unmanaged DIN Rail

Unmanaged Industrial 8-port 10/100/1000BASE-T Ethernet Switch

Product Overview:

The LNK-IMC008G is a rugged unmanaged industrial Gigabit Ethernet switch featuring 8× 10/100/1000BASE-TX ports, designed to deliver reliable high-speed connectivity in demanding environments. Engineered to meet critical industrial standards, this hardened switch offers plug-and-play operation with exceptional resistance to vibration, shock, and extreme temperature fluctuations, making it ideal for deployment in factory automation, transportation systems, and outdoor installations.

Certified with CE and FCC compliance, the switch undergoes rigorous 100% burn-in testing to guarantee long-term reliability and stable performance. Its fanless design, robust metal housing, and wide operating temperature range provide a cost-effective and durable networking solution for industrial applications where simplicity, endurance, and Gigabit-speed data transmission are essential.

Perfect for use in smart manufacturing, IP surveillance networks, energy management systems, and other industrial automation scenarios, the LNK-IMC008G ensures seamless integration and maintenance-free operation within existing network infrastructures.

Product Features:

✅ 8-Port Gigabit Ethernet Connectivity: Features 8× 10/100/1000BASE-TX RJ45 ports supporting auto-negotiation, auto MDI/MDIX, and full/half-duplex operation for high-speed industrial network deployment.

✅ Advanced Traffic Management: Implements IEEE 802.3x flow control to prevent data congestion and ensure stable performance in bandwidth-intensive applications.

✅ Energy Efficiency Compliance: Meets IEEE 802.3az EEE standards, reducing power consumption by up to 70% during low network activity periods.

✅ Flexible Installation Options: Supports both DIN-rail mounting and wall-mount installation for versatile deployment in control cabinets, machinery, and industrial racks.

✅ Dual Redundant Power Inputs: 12-48V wide-range DC power supply with reverse polarity protection ensures continuous operation in mission-critical environments.

✅ Rugged Industrial Protection: IP40-rated dustproof enclosure with high-strength metal casing provides superior resistance against mechanical stress, vibration, and harsh conditions.

✅ Extended Temperature Operation: Maintains stable performance across -40°C to 80°C temperature range, suitable for extreme environment applications.

✅ Industrial-Grade Reliability: Designed with premium components and surge protection for long-term operation in manufacturing, energy, and transportation sectors.

Application Scenarios

• Industrial Automation Networks: Provides Gigabit connectivity for PLCs, HMIs, and industrial controllers in smart manufacturing environments, with IP40 protection ensuring reliability in dusty manufacturing floors and production facilities.

• Intelligent Transportation Systems (ITS): Deploys in traffic control cabinets, electronic toll collection systems, and roadside monitoring equipment with wide-temperature operation (-40°C to 80°C) and vibration resistance for harsh roadside environments.

• Outdoor Surveillance and Security Systems: Supports high-bandwidth video transmission for IP cameras and security devices in perimeter protection applications, with rugged metal housing protecting against environmental elements.

• Energy and Utility Infrastructure: Ideal for power substation automation, solar farm monitoring, and wind power systems with redundant 12-48V DC power inputs ensuring continuous operation in critical energy applications.

• Building Management Systems: Integrates with access control, HVAC systems, and environmental monitoring devices through flexible DIN-rail or wall mounting options in commercial and industrial buildings.

• Rail and Vehicle Applications: Suitable for railway signaling systems, marine vessels, and heavy equipment with shock-resistant design and wide operating temperature range meeting transportation industry requirements.

• Industrial IoT Deployments: Connects sensors, actuators, and monitoring devices in smart agriculture, water treatment plants, and mining operations with plug-and-play Gigabit connectivity for data-intensive applications.

Technical Indexes

Ordering Information

Application Display Diagram
