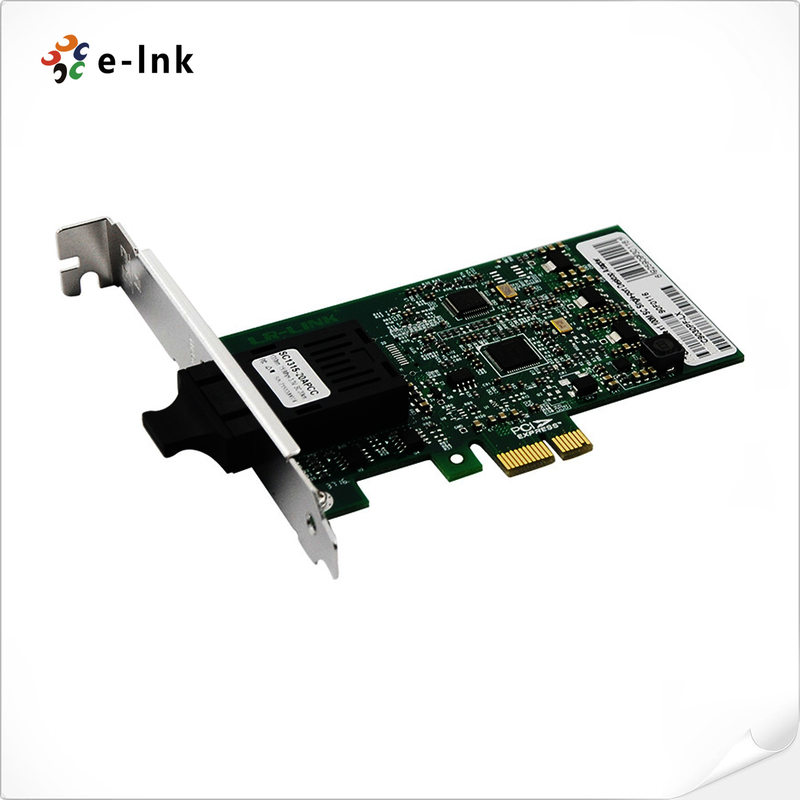

Fast Ethernet Fiber PCI-Express Network Adapters (Intel 82574 Based)

Name: Fast Ethernet Fiber PCI-Express Network Adapters (Intel 82574 Based)
Brand: E-link China Technology Co.,LTD
SKU: LNK-C9030PF-LX
Price: 369.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-Link

Certification: ROHS,FCC,CE

Model Number: LNK-C9030PF-LX

Payment & Shipping Terms

Minimum Order Quantity: 1 Pcs

Price: Negotiation

Packaging Details: Carton Packaging

Delivery Time: 3-12 Working Days

Payment Terms: T/T,Western Union,MoneyGram,Paypal

Supply Ability: 1000 Pcs/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Controller:	Intel 82574L	Transmission Rate:	100M
Jumbo Frame Support:	Up To 9.5 KB	Network Virtualization:	VXLAN, MACinUDP, NVGRE, IPinGRE
Operating Temperature:	0°C To 55°C (32°F To 131°F)	Relative Humidity:	5% To 95% Non-condensing

Controller:	Intel 82574L
Transmission Rate:	100M
Jumbo Frame Support:	Up To 9.5 KB
Network Virtualization:	VXLAN, MACinUDP, NVGRE, IPinGRE
Operating Temperature:	0°C To 55°C (32°F To 131°F)
Relative Humidity:	5% To 95% Non-condensing

Description

Fast Ethernet Fiber PCI-Express Network Adapters (Intel 82574 Based)

Advantages

► PCIe (PCI-Express) x1 interface

► IEEE 802.1x flow control

► IEEE 802.1p-based traffic prioritization

► PXE (2.1) remote boot support

► Plug and play

► PCI-E X1 compliant

► Available with LC, SC or ST fiber connections

► 100Mbps fast ethernet, Full duplex or half- duplex, reach 200Mbps in full duplex Support IEEE 802.3x flow control

► Support IP Unicast broadcast and multicast address filtering mechanism

► Support priority queue

► Support IEEE 802.1Q VLAN tagging

► Support IP multicast packet filter reduces host CPU use

Overview

LNK-C9030PF-LX is a PCI-e bus 100Mbps fiber network card, designed for fiber-to-the-desktop networks that depend on secure and reliable systems. With 1x9 optical transceiver module, it can be matched with different fiber connector or optical transceiver module with different transmission distance according to the requirement of users. The network card can offer users reliable fiber- optic link on fast ethernet internet , particularly it is fit for places where distance of accessing to POI beyond string Cat 5e (>100m).It can completely replace the networking structure of that Ethernet card with RJ45 port connects externally optical transceiver .It can provide users with reliable FTTH and FTTD solutions. Users can select the optical interface parameters (including connectors, single- mode/ multi-mode fiber, working distance, etc) according to occasion.

Technical Indexes

Networking
Standards:	IEEE 802.3u Fast Ethernet
	IEEE 802.3u 100BASE-FX
	IEEE 802.3x Flow control auto-negotiation
	IEEE 802.1q VLAN tagging
	GVRP VLAN registration protocol
	IEEE 802.1p Quality of Service priority control
	PCI-E 1.0 complaint
	ACPI 2.0 power manage functions
NOS Software Support:	Windows 2000
	Windows XP 32-bit (64-bit)
	Windows Server 2003 32-bit ( 64-bit) Windows Vista 32-bit (64-bit)
	Windows 7 32-bit (64-bit)
	Windows 8 32-bit (64-bit)
	Windows 10 32-bit (64-bit)
	Windows Server 2008 32-bit (64-bit) Windows Server 2008 R2 32-bit (64- bit)
	Windows Server 2012 32-bit (64-bit) DOS, Novell ODI
	Novell Netware 5.x, 6.x
	Linux 2.4 series kernel and 2.6.x, 3.x
	FreeBSD 7.x and later
	UnixWare / OpenUNIX 8
	Sun Solaris x86
	VMWare
Controller:	Intel 82574L
Transmission rate	100M
Jumbo Frame Support:	Up to 9.5 KB
Network Virtualization	VXLAN, MACinUDP, NVGRE, IPinGRE
Interface
Connector:	1x RJ45
Optical Port:	1 x 100M Fiber (SC (default), LC, ST, MT-RJ)
LED Indicators
Link/ACT	Green Blinking:100M
Environmental
Operating Temperature:	0°C to 55°C (32°F to 131°F)
Storage Temperature:	-25°C to 70°C (-13°F to 158°F)
Relative Humidity:	5% to 95% non-condensing
Advantages
Use the 6-layer PCB, double copper thickness,5OZ heavy gold plate Optimize designation, improved the distribution line and integral network arrangement Use the high-power control Use the USA Marvell original photoelectric controller Improved the functions and quality

Ordering Information

Model	Description
LNK-C9030PF-SFP	Intel 82574L PCIe x1 100Base-FX Single Port SFP Fiber Desktop Adapter, not including SFP modules
LNK-C9030PF	Intel 82574L PCIe x1 100Base-FX Single Port SC Fiber Desktop Adapter, MM 2KM
LNK-C9030PF-20	Intel 82574L PCIe x1 100Base-FX Single Port SC Fiber Desktop Adapter, SM 20KM
LNK-C9030PF-20S	Intel 82574LPCIe x1 100Base-LX Single Port BIDI SC Fiber Desktop Adapter, SM 20KM
