Industrial 16-port 10/100/1000BASE-T Ethernet Switch

Name: Industrial 16-port 10/100/1000BASE-T Ethernet Switch
Brand: E-link China Technology Co.,LTD
SKU: LNK-IMC016G
Price: 54.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ROHS,FCC,CE

Model Number: LNK-IMC016G

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: 49USD~59USD

Packaging Details: Switch Standard Export Package

Delivery Time: 3-12 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,Paypal

Supply Ability: 1000 pcs/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      16-port industrial Ethernet switch, Gigabit industrial Ethernet switch, 10/100/1000BASE-T industrial switch


Keywords:	Industrial Ethernet Switch	Temperature:	-40 To +80°C (-40 To 176°F )
Casing:	Aluminum Case	W×H×D:	150 X 115 X 50 Mm
Weight:	0.6kg	Installation:	DIN-Rail Mounting, Wall Mounting

Keywords:	Industrial Ethernet Switch
Temperature:	-40 To +80°C (-40 To 176°F )
Casing:	Aluminum Case
W×H×D:	150 X 115 X 50 Mm
Weight:	0.6kg
Installation:	DIN-Rail Mounting, Wall Mounting

Description

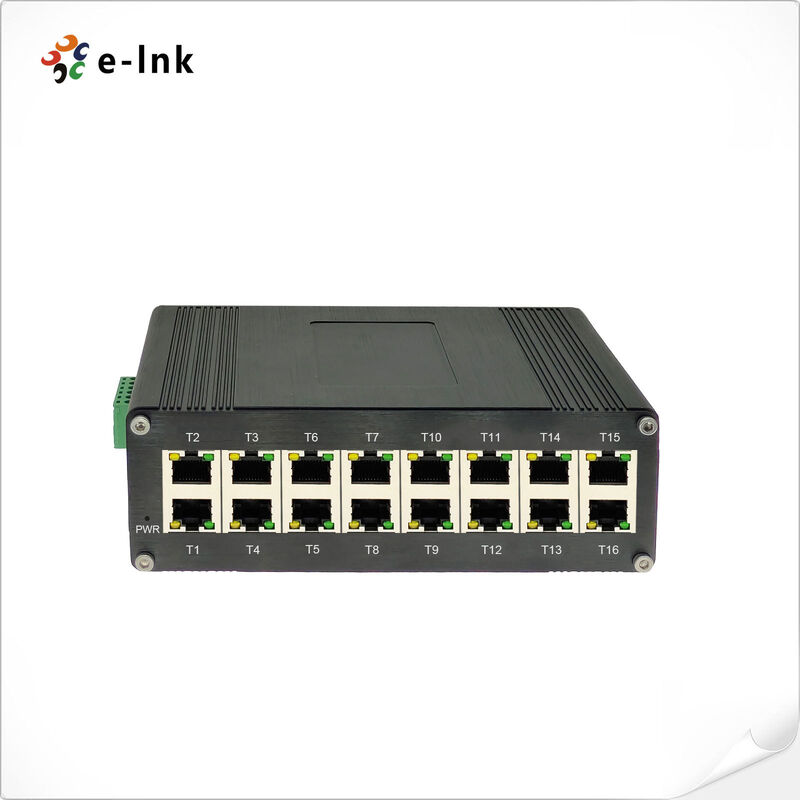

Industrial 16-port 10/100/1000BASE-T Ethernet Switch

Industrial 16-port 10/100/1000BASE-T Ethernet Switch

Industrial 16-port 10/100/1000BASE-T Ethernet Switch Advantages

► 16 10/100/1000Base-TX ports

► RJ45 Port Supports 10/100/1000Mbps-Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX

► Supports 802.3x Flow control

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► Supports DIN-Rail installation

► Redundant 12～48V DC Power Inputs

► Industry standard design, dustproof and close design IP40, rugged high-strength metal case

► -40°C to 80°C (-40°F to 176°F) operating temperature

Industrial 16-port 10/100/1000BASE-T Ethernet Switch Overview

LNK-IMC016G is an 16 ports 10/100/1000Base-TX Hardened Ethernet Switch. This unmanaged industrial Ethernet switch is designed to match the critical industrial standards. With reliable and simple operation against vibration and shock, and wide operation temperature range, it could match a variety of harsh environment.

The switch complies with CE and FCC standards, and passed the 100% burning test to ensure that it will fulfill the needs of industrial applications. It is a good choice for an economical solution for industrial Ethernet connections.

Industrial 16-port 10/100/1000BASE-T Ethernet Switch Technical Indexes

Ethernet
Standards:	IEEE802.3 10BASE-T
	IEEE802.3u 100BASE-TX
	IEEE802.3ab 1000BASE-T
	IEEE802.3az Energy Efficient Ethernet (EEE)
	IEEE802.3z 1000BASE-X
Forward & Filtering Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer Memory:	1M bits
Switch Fabric:	40 Gbps
Max Packet Length:	10K Bytes
Address Table Size:	16K MAC Addresses
Interface
Connector:	16 x RJ45
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Electrical and Mechanical
Input Power:	12~48V DC, Redundant Power (6-pin Terminal Block)
Power Consumption:	5W Max.
Protection:
Power Input Overload:	Automatic Resettable
Reverse Polarity:	Present
LED Indicators:
Power:	Power1, Power2 Status
Ethernet (Per Port):	Link/Activity
Dimensions (WxDxH):	150 x 115 x 50 mm
Weight:	0.6Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail
Regulatory Approvals
ISO9001
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024:2010
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)

Industrial 16-port 10/100/1000BASE-T Ethernet Switch Ordering Information

Model	Description
LNK-IMC016G	Industrial 16-port 10/100/1000BASE-T Ethernet Switch
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 24W/1A 24V DC DIN-Rail Power Supply. Open Wire for Terminal Block.
Power Options	► Power Supply is to be purchased separately.
