APP and Web Managed 10/100/1000Mbps Gigabit Fiber Media Converter for Networking
AI Smart Managed 10/100/1000Mbps Gigabit Fiber Media Converter
Features
► E-link's newly self-developed mobile APP and PC-based intelligent Web management.
► One-click screen display: System current, voltage, temperature; Optical module transmit power, receive power; Ethernet/Fiber port rates, etc.
► APP/Web management functions: Graphical interface presenting detailed device information; SFP module information and DDM data; User-defined optical power thresholds; User-defined scheduled reboot, etc.
► It moves away from traditional complex management interfaces by featuring a lightweight interface with highlighted key parameters, facilitating on-site debugging and maintenance by non-professionals.
► Ethernet Port: 1 x 10/100/1000M RJ45
► Fiber port: 1 x 100/1000M SFP
Overview

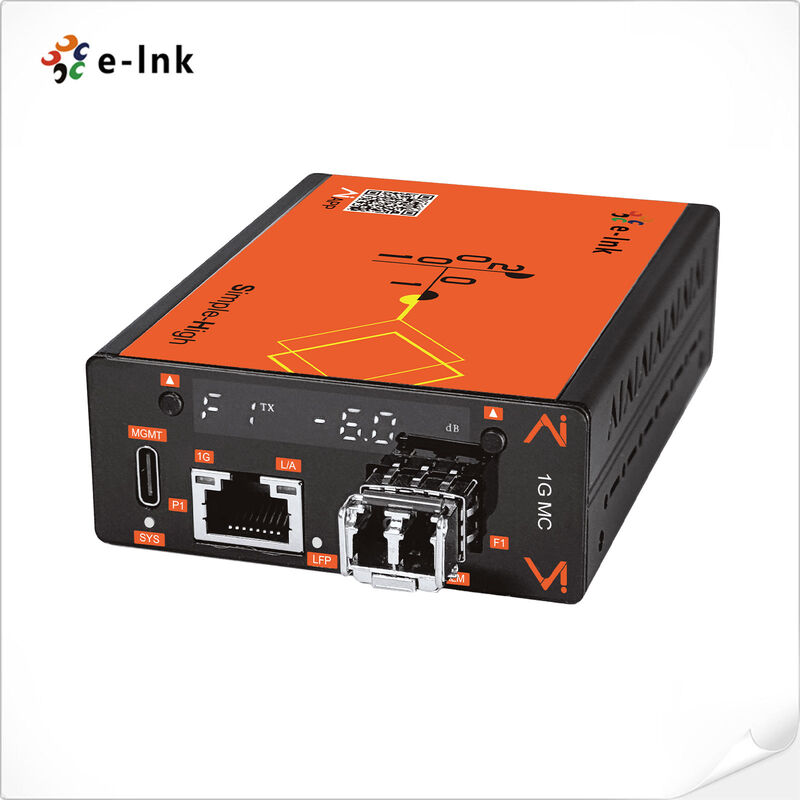

The LNK-AI3011M-SFP AI Smart Managed Media Converter is an innovative, AI-driven device designed and developed independently by E-link. It enables intuitive management via a mobile app or web interface, eliminating the need for additional test instruments. Users can monitor real-time device status, including power, SFP/Ethernet port conditions, and detailed SFP module parameters such as optical power, wavelength, transmission distance, data rate, and temperature.
Combining comprehensive features, simple operation, multiple real-time alarm methods, and streamlined maintenance workflows, it significantly reduces installation and operational costs. This high-value solution delivers an intelligent, cost-effective line management system tailored for the AI era.
The converter is widely suitable for critical applications including forest fire prevention, water area monitoring, highways, urban roads, rail transit, high-end office buildings, petrochemical facilities, and automated equipment communication and monitoring.
Technical indexes
|
AI Smart Managed 10/100/1000Mbps Gigabit Fiber Media Converter
|
|
Access Mode
|
100/1000BASE-X SFP to 10/100/1000BASE-T RJ45
|
|
Ethernet
|
|
Standards:
|
Standards Compliance IEEE 802.3 Ethernet
|
|
|
IEEE 802.3u Fast Ethernet
|
|
|
IEEE 802.3ab Gigabit Ethernet
|
|
|
IEEE 802.3z Gigabit SX/LX
|
|
Processing Type
|
Store-and-Forward
|
|
Forward Filter Rate
|
14,880pps (10Mbps)
|
|
|
148,800pps (100Mbps)
|
|
|
1,488,000pps (1000Mbps)
|
|
Packet Buffer Memory
|
1 Mbit
|
|
Max Packet Length
|
9K Bytes
|
|
AI Smart Managed Functions
|
|
Service Board Status
|
Temperature
|
|
|
|
Voltage
|
|
|
|
Current
|
|
|
RJ45 Port Status
|
Link Status
|
|
|
|
Rate
|
|
|
|
LFP Status
|
|
|
SFP Port Status
|
Link Status
|
|
|
|
PN/SN
|
|
|
|
TX Power
|
|
|
|
RX Power
|
|
|
|
All DDM Information
|
|
|
DIP Switch
|
Dip1
|
LFP
|
|
|
|
Dip2
|
10M
|
|
|
|
Dip3
|
NC
|
|
|
|
Dip4
|
NC
|
|
|
Fiber Port Alarm
|
Support
|
|
|
Scheduled Reset
|
Support
|
|
|
Interface Port
|
|
Ethernet Port
|
10/100/1000BASE-T Ethernet RJ45 interface Auto-negotiation, auto MDI/MDI-X
|
|
|
Cable: Cat 3/4/5/6/7 UTP Cable
|
|
SFP Port
|
1 x 100/1000M SFP (auto detection)
|
|
|
Cable:
Multi-Mode: 50/125um or 62.5/125um fiber optic cable, distance: 550m/2km;
Single Mode: 9/125um fiber optic cable, distance: 20/40/80/100/120/160/200km
|
|
Electrical and Mechanical
|
|
Input Power
|
5~58V DC, 5.5 x 2.1 mm Power Socket
|
|
|
|
External AC-to-DC Adapter
|
|
|
Power Consumption
|
3W Max.
|
|
Dimensions (W x D x H)
|
93 x 71 x 29 mm
|
|
Weight
|
100g
|
|
Casing
|
Aluminum Case
|
|
Mounting Options
|
Desktop or mounted on standard 14 slots rack
|
|
LED Indicators
|
|
SYS
|
Green LED Slow Blink: Operating normally
|
|
|
Orange LED Blink: Data communication in progress
|
|
P1 1G
|
Solid On: Ethernet port link rate is 1000M
|
|
|
Off: Ethernet port no link or link rate is 10M/100M
|
|
P1 L/A
|
Solid On: Ethernet port link established
|
|
|
Blinking: Data transmission
|
|
|
Off: Ethernet port no link
|
|
F1 L/A
|
Solid On: SFP port link established
|
|
|
Blinking: Data transmission
|
|
|
Off: SFP port no link
|
|
F1 ALM
|
Red LED Solid On: Received optical power below threshold
|
|
|
Orange LED Solid On: Received optical power near threshold
|
|
|
Off: Received optical power normal
|
|
LFP
|
Solid On: LFP function enabled
|
|
|
Blinking: SFP port or Ethernet port forcibly closed or connection interrupted
|
|
|
Off: LFP function not enabled
|
|
Environmental
|
|
Operating Temperature
|
-20°C to 70°C (-20°F to 162°F)
|
|
Storage Temperature
|
-40°C to 85°C (-40°F to 185°F)
|
|
Relative Humidity
|
5% to 95% non-condensing
|
|
MTBF
|
> 200,000 hrs
|
|
Regulatory Approvals
|
|
ISO9001, CE, FCC Part 15 Class A, RoHS
|
