APP and Web Managed 2-port 10/100/1000T to 1-port 100/1000X SFP Fiber Media Converter for Networking
Managed 2-port 10/100/1000T to 1-port 100/1000X SFP Fiber Media Converter
Features
► E-link's newly self-developed mobile APP and PC-based intelligent Web management.
► One-click screen display: System current, voltage, temperature; Optical module transmit power, receive power; Ethernet/Fiber port rates, etc.
► APP/Web management functions: Graphical interface presenting detailed device information; SFP module information and DDM data; User-defined optical power thresholds; User-defined scheduled reboot, etc.
► It moves away from traditional complex management interfaces by featuring a lightweight interface with highlighted key parameters, facilitating on-site debugging and maintenance by non-professionals.
► Ethernet port: 2 x 10/100/1000M RJ45
► Fiber port: 1 x 100/1000M SFP
Overview
The LNK-AI1200M-SFP AI Smart Managed Media Converter is an innovative, independently developed AI-driven device from E-link. It enables intuitive management and real-time monitoring via a mobile app or web interface, eliminating the need for external test instruments. Users can access vital operational data, including power status, SFP and Ethernet port conditions, and comprehensive SFP module diagnostics such as optical power, wavelength, transmission distance, data rate, and temperature.
Featuring a complete set of functions, user-friendly operation, multiple real-time alert mechanisms, and efficient maintenance workflows, this converter significantly reduces both installation complexity and long-term operational costs. It delivers a high-performance, cost-effective line management solution fully adapted to the demands of the AI era.
The converter is widely suitable for a variety of demanding applications, including forest fire prevention systems, water area monitoring, highways, urban roads, rail transit networks, high-end office buildings, petrochemical facilities, and communication and monitoring for automated equipment.
Technical Indexes
|
AI Smart Managed 2-port 10/100/1000T to 1-port 100/1000X SFP Fiber Switch
|
|
Access Mode
|
2-port 10/100/1000T to 1-port 100/1000X SFP
|
|
Ethernet
|
|
Standards:
|
Standards Compliance IEEE 802.3 Ethernet
|
|
|
IEEE 802.3u Fast Ethernet
|
|
|
IEEE 802.3ab Gigabit Ethernet
|
|
|
IEEE 802.3z Gigabit SX/LX
|
|
Processing Type
|
Store-and-Forward
|
|
Forward Filter Rate
|
14,880pps (10Mbps)
|
|
|
148,800pps (100Mbps)
|
|
|
1,488,000pps (1000Mbps)
|
|
Packet Buffer Memory
|
1 Mbit
|
|
Max Packet Length
|
9K Bytes
|
|
AI Cloud Smart Managed Functions
|
|
Service Board Status
|
Temperature
|
|
|
|
Voltage
|
|
|
|
Current
|
|
|
RJ45 Port Status
|
Link Status
|
|
|
|
Rate
|
|
|
|
LFP Status
|
|
|
SFP Port Status
|
Link Status
|
|
|
|
PN/SN
|
|
|
|
TX Power
|
|
|
|
RX Power
|
|
|
|
All DDM Information
|
|
|
DIP Switch
|
Dip1
|
VLAN
|
|
|
|
Dip2
|
P1 10M
|
|
|
|
Dip3
|
P2 10M
|
|
|
|
Dip4
|
NC
|
|
|
Fiber Port Alarm
|
Support
|
|
|
Scheduled Reset
|
Support
|
|
|
Interface Port
|
|
Ethernet Port
|
2 x 10/100/1000BASE-T Ethernet RJ45 interface Auto-negotiation, auto MDI/MDI-X
|
|
|
Cable: Cat 3/4/5/6/7 UTP Cable
|
|
SFP Port
|
1 x 100/1000M SFP
|
|
|
Cable:
Multi-Mode: 50/125um or 62.5/125um fiber optic cable, distance: 550m/2km;
Single Mode: 9/125um fiber optic cable, distance: 20/40/80/100/120/160/200km
|
|
Electrical and Mechanical
|
|
Input Power
|
5~58V DC, 5.5 x 2.1 mm Power Socket
|
|
|
|
External AC-to-DC Adapter
|
|
|
Power Consumption
|
3W Max.
|
|
Dimensions (W x D x H)
|
93 x 71 x 29 mm
|
|
Weight
|
100g
|
|
Casing
|
Aluminum Case
|
|
Mounting Options
|
Desktop or mounted on standard 14 slots rack
|
|

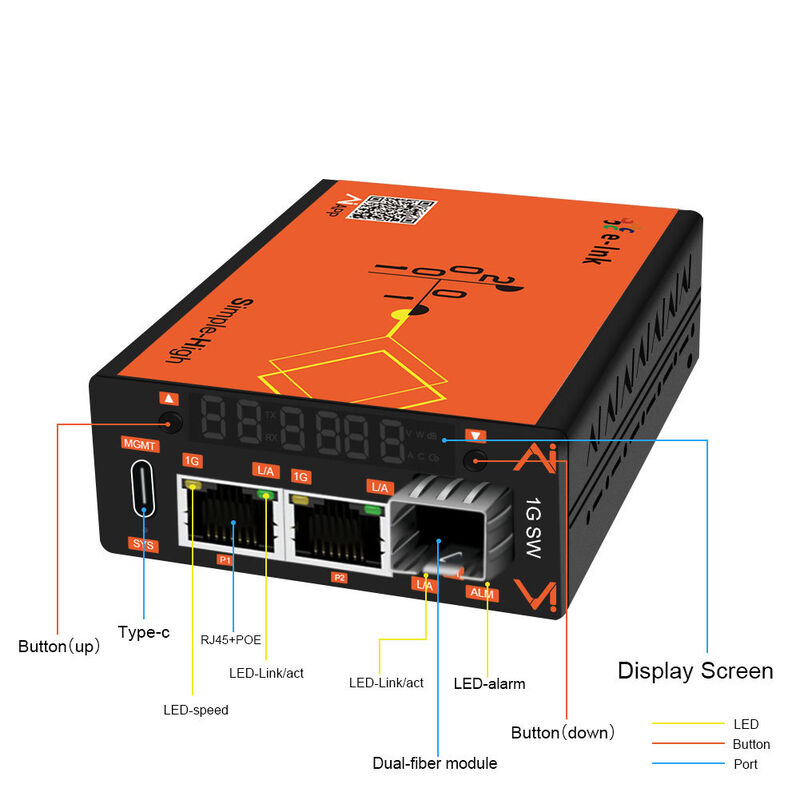

LED Indicators
|
|
SYS
|
Blink(green): Running
|
|
|
Blink(orange): USB data transmission
|
|
P1 1G
|
On: Link up 1G
|
|
|
Off: No link or Link up 10M/100M
|
|
P1 L/A
|
On: Link up
|
|
|
Blink: Data activity
|
|
|
Off: No link
|
|
P2 1G
|
On: Link up 1G
|
|
|
Off: No link or Link up 10M/100M
|
|
P2 L/A
|
On: Link up
|
|
|
Blink: Data activity
|
|
|
Off: No link
|
|
F1 L/A
|
On: Link up
|
|
|
Blink: Data activity
|
|
|
Off: No link
|
|
F1 ALM
|
On(red): Optical power alarm
|
|
|
On(orange): Optical power warning
|
|
|
Off: Optical power normal
|
|
Environmental
|
|
Operating Temperature
|
-20°C to 70°C (-20°F to 162°F)
|
|
Storage Temperature
|
-40°C to 85°C (-40°F to 185°F)
|
|
Relative Humidity
|
5% to 95% non-condensing
|
|
MTBF
|
> 200,000 hrs
|
|
Regulatory Approvals
|
|
ISO9001, CE, FCC Part 15 Class A, RoHS
|
