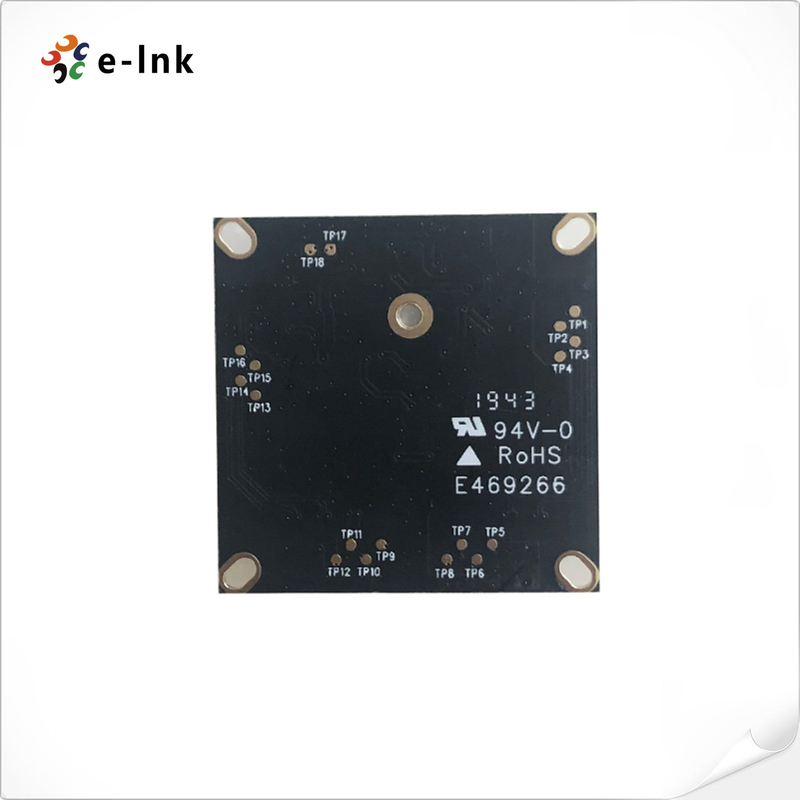

Unmanaged 4-Port 10/100Mbps Ethernet Switch Module
Unmanaged 4-Port 10/100Mbps Ethernet Switch Module
Unmanaged 4-Port 10/100Mbps Ethernet Switch Module
Unmanaged 4-Port 10/100Mbps Ethernet Switch Module
Unmanaged 4-Port 10/100Mbps Ethernet Switch Module
Unmanaged 4-Port 10/100Mbps Ethernet Switch Module
Unmanaged 4-Port 10/100Mbps Ethernet Switch Module
Unmanaged 4-Port 10/100Mbps Ethernet Switch Module

Unmanaged 4-Port 10/100Mbps Ethernet Switch Module

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ISO9001, CE, FCC, RoHS

Model Number: LNK-SM004

Document: E-link Unmanaged 4-Port 100....0.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: negotiation

Packaging Details: Industrial PoE Switch Standard Carton Packaging

Delivery Time: 7-10 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability: 100000PCS/Month

Get Best Price
Contact Now

Specifications

Description
Specifications
Highlight:
Humidity:
5%~90% Non-condensing
Weight:
12g
Dimensions:
38 X 38 X 7mm
Working Temperature:
-10~60℃
Power Consumption:
0.9W@12VDC (No Load) 2W@12VDC (Full Load)
Power Input:
12VDC (9~12VDC)
Humidity:
5%~90% Non-condensing
Weight:
12g
Dimensions:
38 X 38 X 7mm
Working Temperature:
-10~60℃
Power Consumption:
0.9W@12VDC (No Load) 2W@12VDC (Full Load)
Power Input:
12VDC (9~12VDC)
Description
Unmanaged 4-Port 10/100Mbps Ethernet Switch Module

Unmanaged 4-Port 10/100Mbps Ethernet Switch Module

Product Advantages

l Comply with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab standards;

l Full-duplex adopts IEEE 802.3x standard, half-duplex adopts Backpressure standard;

l 4-Port 10/100M self-adaptive pin network ports, support Auto MDI / MDIX

l Each port supports auto-negotiation function to automatically adjust the transmission mode and transmission rate;

l Support MAC address self-learning;

l Support full-speed forwarding non-blocking communication

l Mini size design, 38X38MM (length x width)

l Dynamic LED indicator provides simple working status tips and troubleshooting;

l Supports 9-12V power input



Overview

E-link LNK-SM004 series is 4 port 10/100/Mbps unmanaged switch module, offer 4 port 10/100Mbps auto negotiation port, high integration design, small and exquisite, portable, suit for medium and small office and home network. Using store-and-forward technology, combined with dynamic memory allocation, ensure allocate to each port effectively. Its wires peed switching that forwards packets can be as fast as the speed that your network delivers those packets to them.



Technical Indexes

Parameter

Specification

Standards

IEEE802.3 10Base-T Ethernet

IEEE802.3u 100Base-TX Fast Ethernet

IEEE802.3x Full-duplex Flow Control

Network Media (Cable)

10Base-T: UTP category 3, 4, 5 cable (maximum100m)

100Base-Tx: UTP category 5, 5e cable (maximum 100m)

Interface

10Base-T/100Base-TX RJ45

LED Indicator

LINK/ACT: 1~4 Port
PWR: Power

Number of Ports

4 x 10/100Mbps Auto-Negotiation ports

Switch Processing Scheme

Store-and-Forward

MAC Address Table

1K

Share Data Buffer

Built-in

Flow Control

Back pressure half duplex, IEEE 802.3x pause frame full duplex

Switch Fabric

1Gbps

Throughput (packet per second)

0.744Mpps

Maximum Packet Size

1536bytes

MTBF

100,000 hours

Power Input

12VDC (9~12VDC)

Power PIN-type

2-PIN terminal block, pitch 1.25MM

Power consumption

0.9W@12VDC (No Load)

2W@12VDC (Full Load)

Working temperature

-10~60℃

Storage temperature

-40~85℃

Humidity

5%~90% non-condensing

Weight

12g

Dimension (LxWxH)

38 x 38 x 7mm

Ordering Information

Model

Description

LNK-SM004

Mini 4-Port 10/100M Ethernet Switch PCB Module
