Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: LNK-SP5V-USB
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: 6.9USD/PCS
Packaging Details: Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs/month
Application: |
IP Camera, Router, Switch |
Input Interface: |
DC Jack |
Output Interface: |
USB |
Output Power: |
Max. 15W |
Product Name: |
PoE Power Splitter |
Weight: |
50g |
Application: |
IP Camera, Router, Switch |
Input Interface: |
DC Jack |
Output Interface: |
USB |
Output Power: |
Max. 15W |
Product Name: |
PoE Power Splitter |
Weight: |
50g |
► Compliant with IEEE 802.3af
► Isolation: 2.5kV
► Power Input: DC48V
► Power Output: DC5V 2.4A
► Data Output Port: RJ45 Male
► Power Output Port: Micro USB Power Plug
► Data Transfer Rate: 10/100Mbps
► Devices will be detected before poe input
► Power Pin: support both 1/2(+/-),3/6(-/+) or 4/5(+),7/8(-)
Technical Indexes
| Model | LNK-SP5V-USB |
| Standard |
IEEE 802.3i 10BASET IEEE 802.3u 100BASETX IEEE 802.3x Flow Control IEEE 802.1af DTE Power via MDI IEEE 802.3af |
| Power Pin | 1/2(+), 3/6(-); 4/5(+), 7/8(-) |
| Power Input | 44-57V DC |
| Power Output | 5V 2.4A DC |
| Date Rate | 10/100Mbps |
| Distance |
10BASE-T: cat 5 UTP(≤100m) 100BASE-TX: cat 5 and above UTP(≤100m) |
| LED Indicator | POE input indicator; PD output indicator |
| Environmental |
Working Temperature: 0°C~55°C Storage temperature: -20°C~75°C Working Humidity: 10%～90% RH non-condensing Storage Humidity: 5%～90% RH non-condensing |
| Radiation | CE mark,commercial,FCC Part 15 Class B,RoHS |
| Product Size | 83 x 28 x 22mm |
| Weight | 59g |

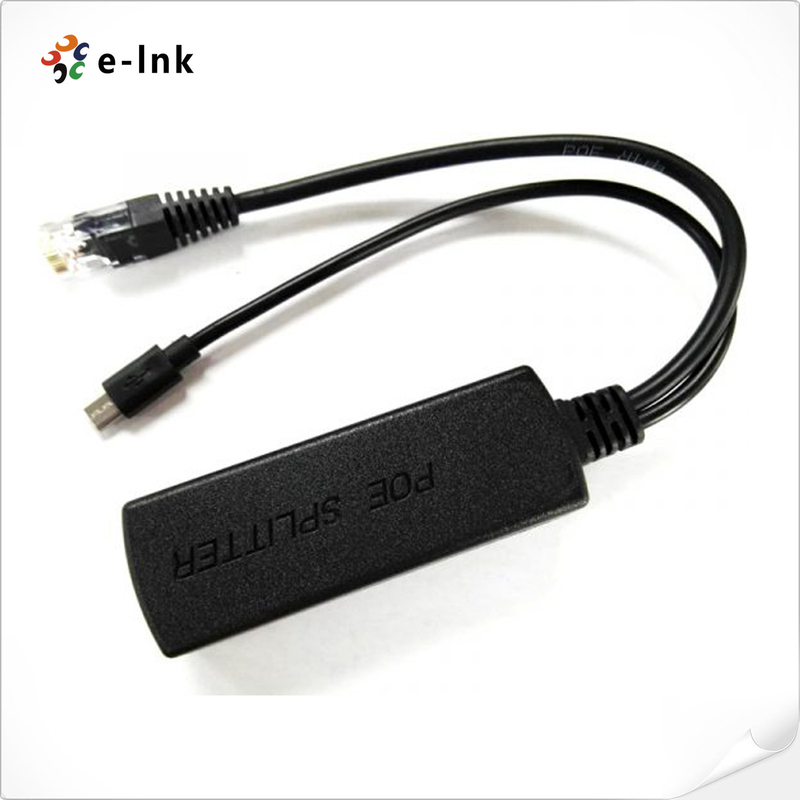

Overview
The LNK-SP5V-USB is designed specially to fill the demand of the micro USB power input products such as iPad, Dropcam, Raspberry Pi , Android, Tablet etc. It can be transmitted power and data signals through the cable transmission.
LNK-SP5V-USB support the use of PSE equipment which meet IEEE802.3af standard, such as POE Switch series and so on. The LNK-SP5V-USB is a ideal solution to delivering data and power to network devices directly via the RJ45 port interface without the need of installing extra power outlets and electrical cabling.
Ordering Information
| Model | Description |
| LNK-SP5V-USB | 10/100M 5V 2.4A POE splitter with Micro USB port |
